B-62994EN/02 7. SYSTEM

-267-

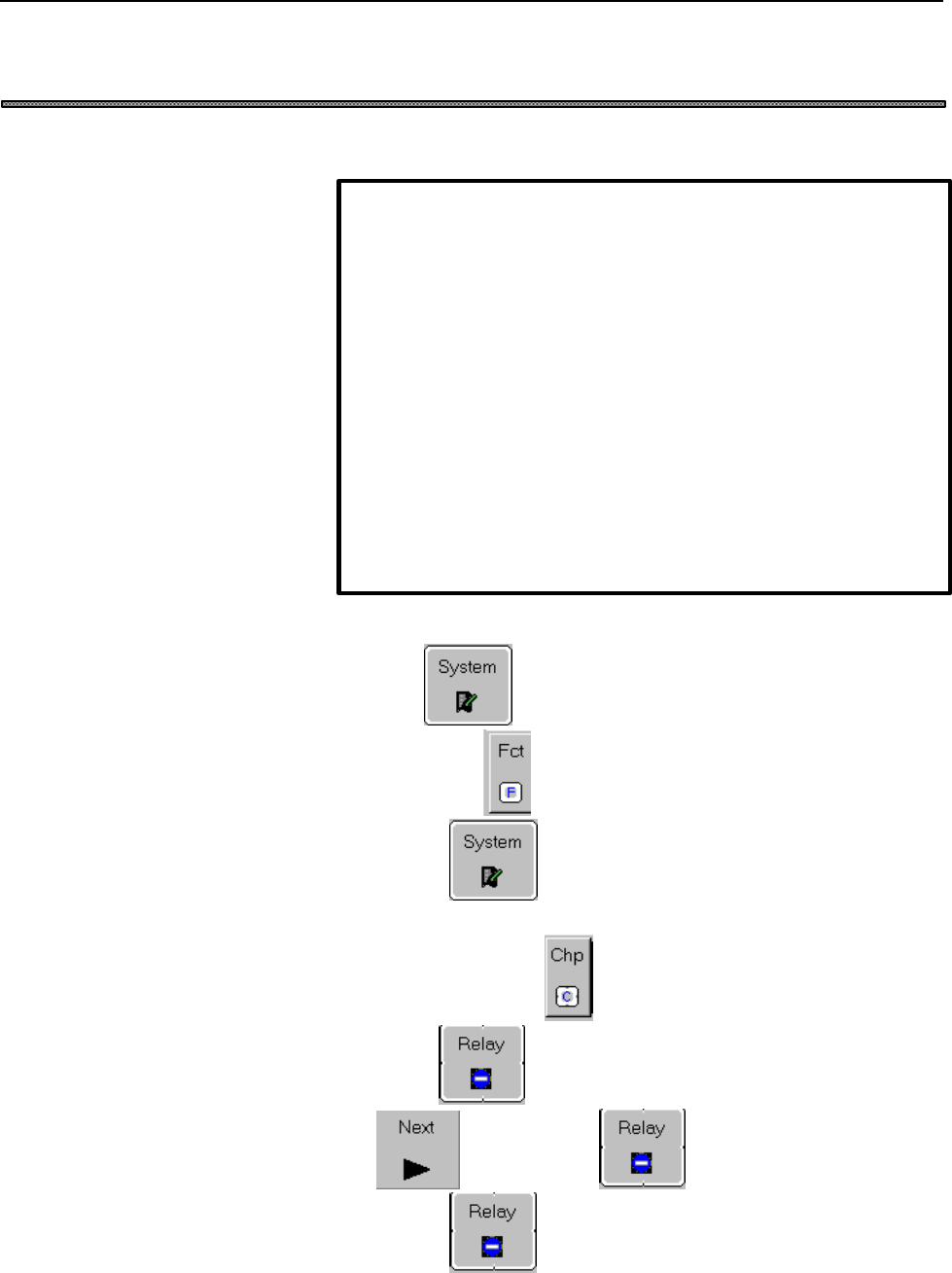

7.16 Setting the PMC Keep Relay

This section describes how to set the PMC keep relay.

Procedure

1. If the soft key is currently not displayed, press the function

selection key .

2. Press the soft key.

3. If the [PMC Keep Relay] screen is currently not displayed, press the

chapter selection key .

4. If the soft key is currently not displayed, press the

soft key until the soft key is displayed.

Press the soft key.

The [PMC Keep Relay] screen is displayed.

NOTE

To set the PMC keep relay, set the following status:

l Operation

Set either of the following statuses:

• Emergency stop

• Reset in MDI mode

l Setting data

• Enable Parameter Write.

For an explanation of how to specify the setting data, see Section 6.1,

"Setting Data." To change the CNC operating mode from the software

operator's panel, see Section 6.7, "Software Operator's Panel

Settings."
