B-62994EN/02 7. SYSTEM
-245-
7.10.1 Setting data for waveform diagnosis
This section describes how to set data for waveform diagnosis.
Procedure

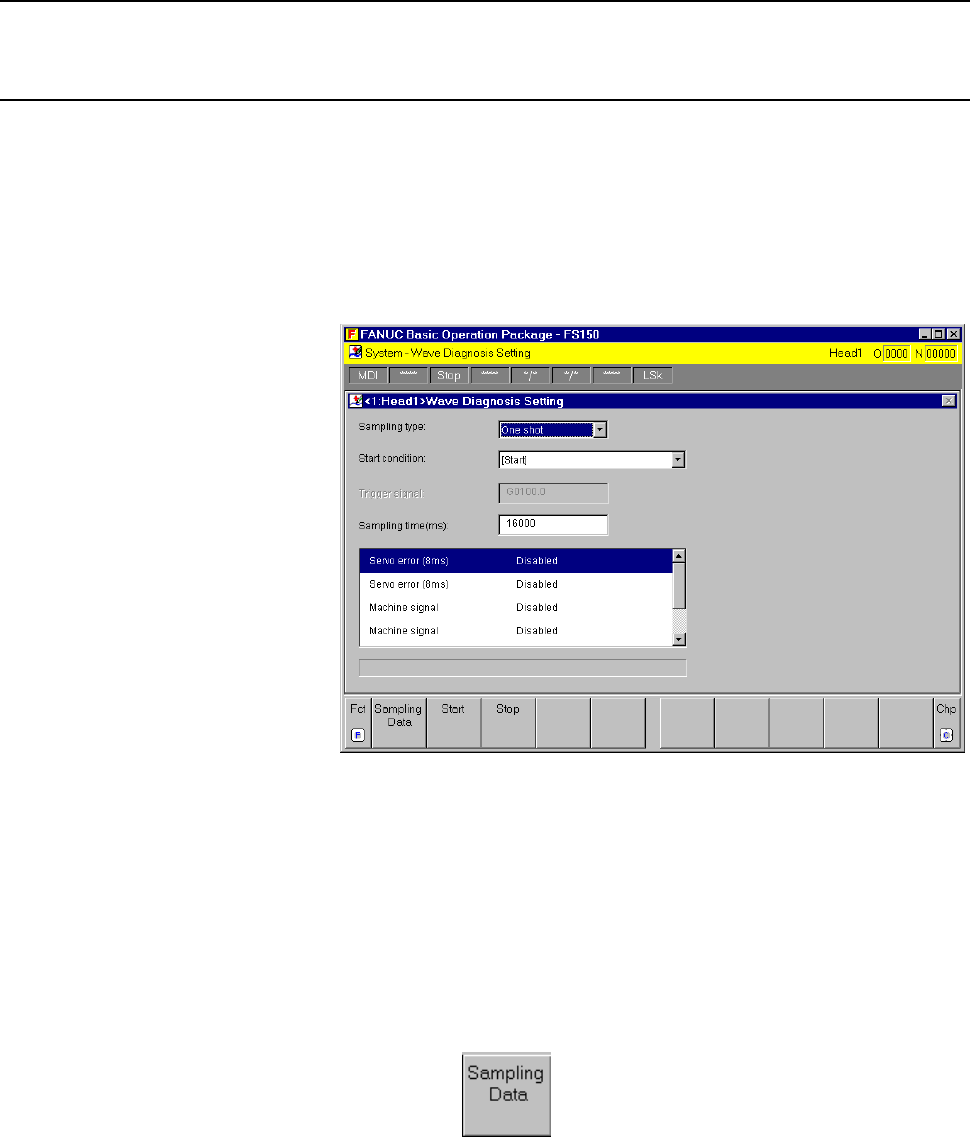

1. If the [Wave Diagnosis Setting] screen is currently not displayed,
display the [Wave Diagnosis Setting] screen as explained in Section
7.10 "Collecting Waveform Diagnosis Data."
2. Set the following data items as required:
l Sampling type
l Start condition/end condition
l Trigger signal
l Sampling time/delay time
For details of the setting data, see the description in Explanation below.
3. Select sampling data from the list as required.
4. Press the soft key.
The sampling data setting screen appears.
For sampling data other than machine signals, set the type of sampling
data, enable/disable, and so forth.
