B-62994EN/02 7. SYSTEM
-217-
(3) When the input device is a FANUC Cassette, FANUC Floppy Cassette,
FANUC Handy File, or FANUC Program File Mate
Procedure

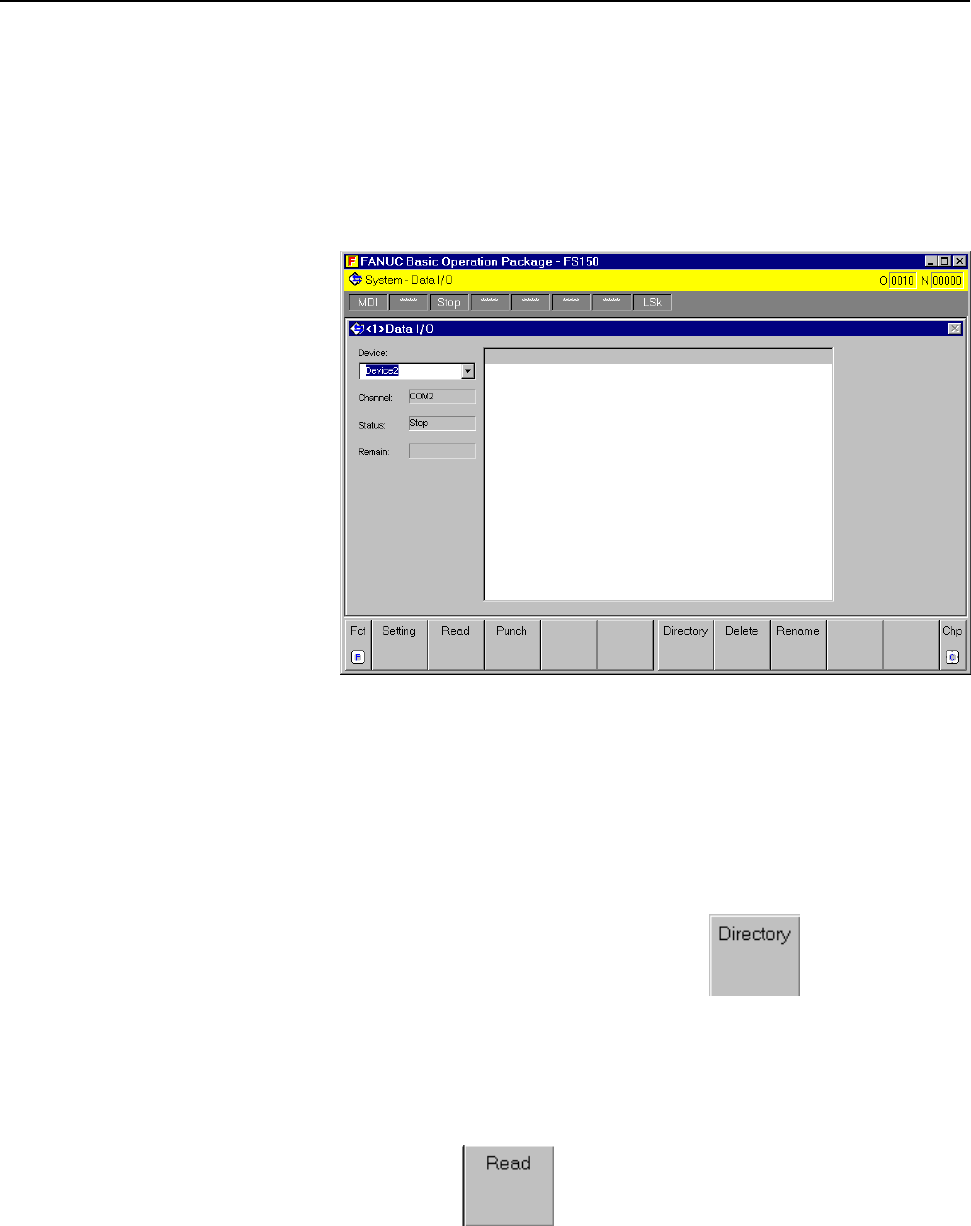

1. If the [Data I/O] screen is currently not displayed, display the [Data I/O]
screen as explained in Section 7.4 "Data Input/Output."
2. If parameters for data input/output are not set, set the required
parameters.
For information about setting, see Section 7.4.1, "Setting parameters for
input/output."
3. Check that COM1 or COM2 is selected for Channel. If neither COM1
nor COM2 is selected, select COM1 or COM2, as required, for the
input device to be used.
4. To check the input source file, press the soft key.
A file list is displayed.
If the communication device is not connected correctly, for example, an
error message is displayed. In such a case, check the communication
settings, the cable connection, power supply for the communication
device, and so forth.
5. Press the soft key.
The [Data I/O - Read] screen is displayed.
