6. SETTING B-62994EN/02
-184-

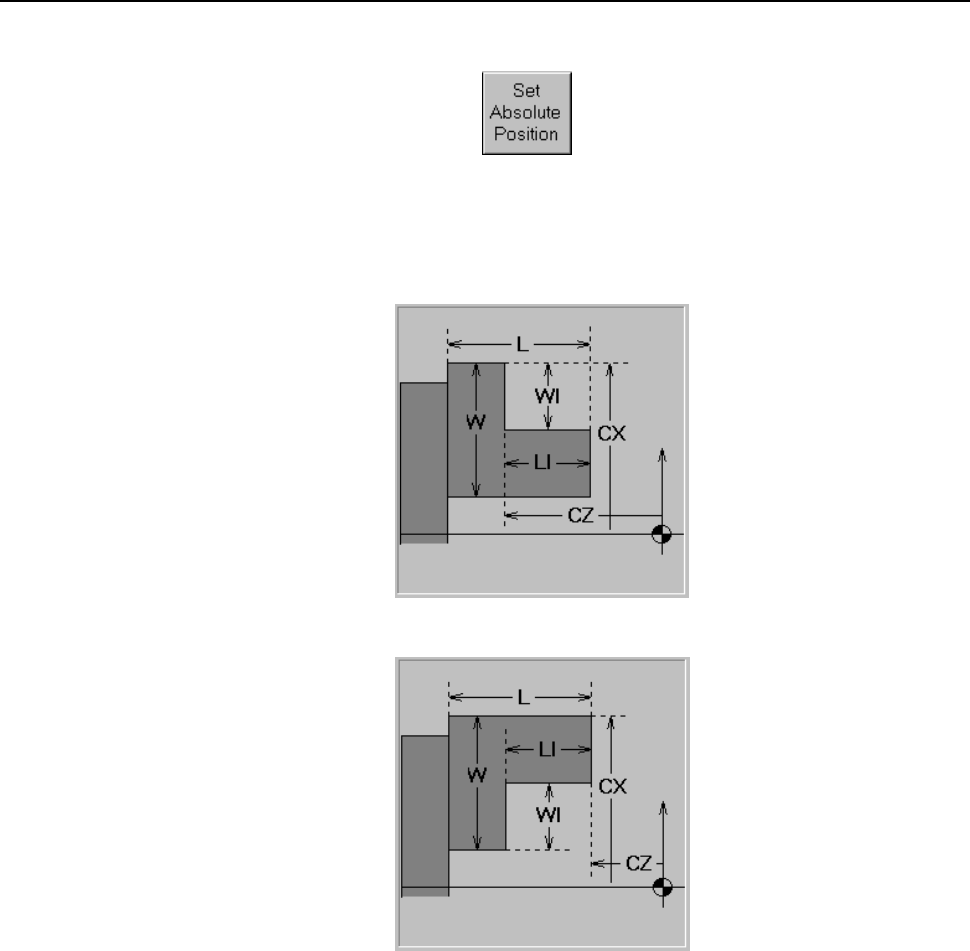

• Absolute coordinate value setting
When the soft key is pressed in data input for the chuck
position (CX, CY) or tailstock position (TZ), the absolute coordinate
value on the current data input axis is specified.
l Data to be set
• Chuck barrier
Inner face holding
Outer face holding
L: Chuck jaw length
W: Chuck jaw width
L1: Chuck jaw gripping length
W1: Chuck jaw gripping width
CX: Chuck jaw position (X-axis)
CZ: Chuck jaw position (Z-axis)
(1) Diameter or radius input can be selected to enter the W, W1, and
CX values, by specifying the corresponding parameter.
For details of the parameters, refer to the parameter description for
the CNC being used.
