5.1.15 Stamping the machining time

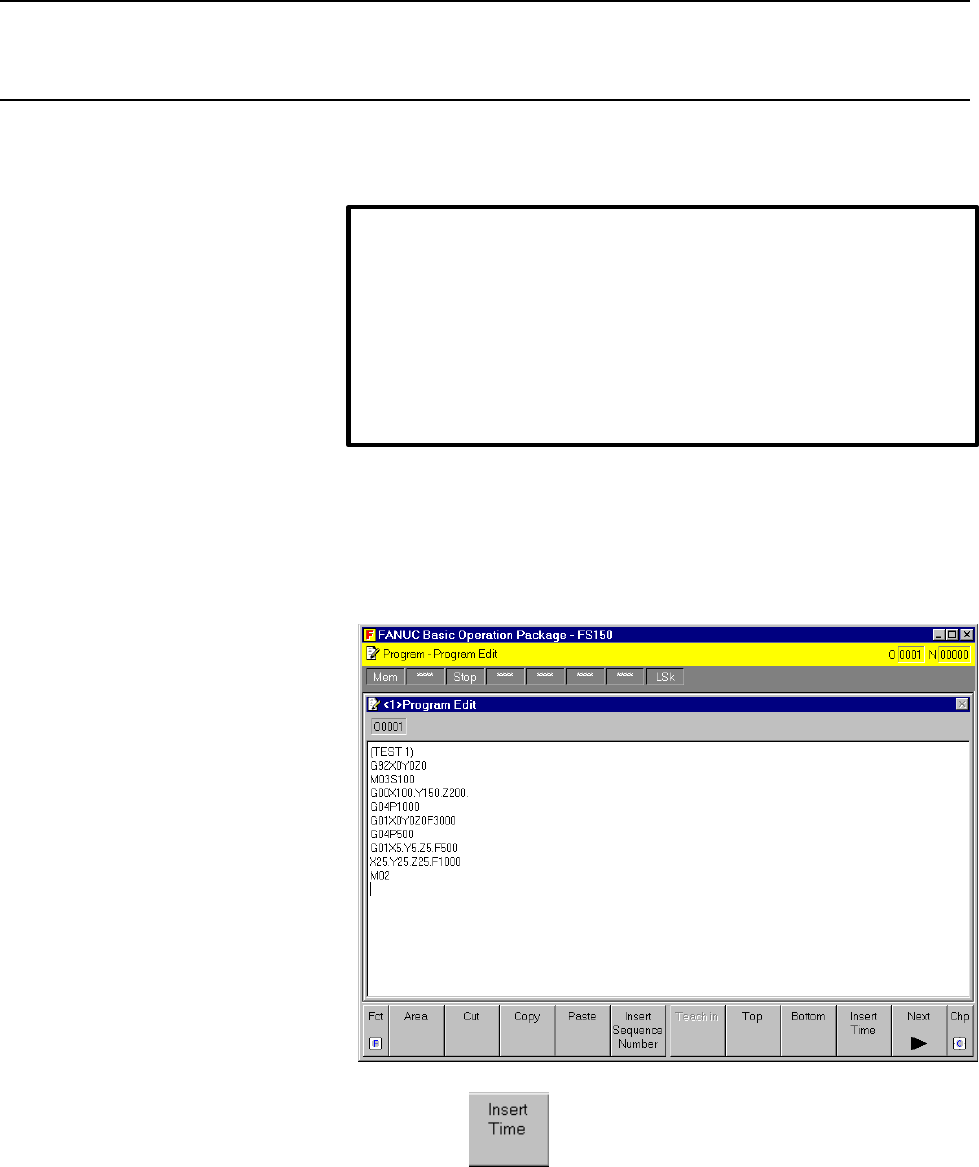

The machining time for an executed NC program can be inserted into the NC
program as a comment.
Procedure
1. If the [Program Edit] screen is currently not displayed, display the
[Program Edit] screen by applying the procedure explained in Section
5.1, "Editing a NC Program."
2. Press the soft key.
When the NC program has already been executed, the machining time
is stamped.
NOTE
When the FS15, FS16/18/21, or NC Board is used, a CNC option is
required for stamping the machining time. When the machining time
is to be stamped for a NC program, the NC program must have been
executed at least once since the CNC was turned on.
When the Power Mate is used, the machining time cannot be
stamped.
