B-62994EN/02 2. BASIC KNOWLEDGE

-25-

2.5 Displaying Version Information

This section describes how to display the version information for Basic

Operation Package 1, for maintenance and other purposes.

Procedure

1. Right-click the soft key area.

Alternatively, press the [Application] key on the keyboard (such as the

Microsoft Natural keyboard or 109 keyboard).

Alternatively, press [Shift]+[F10].

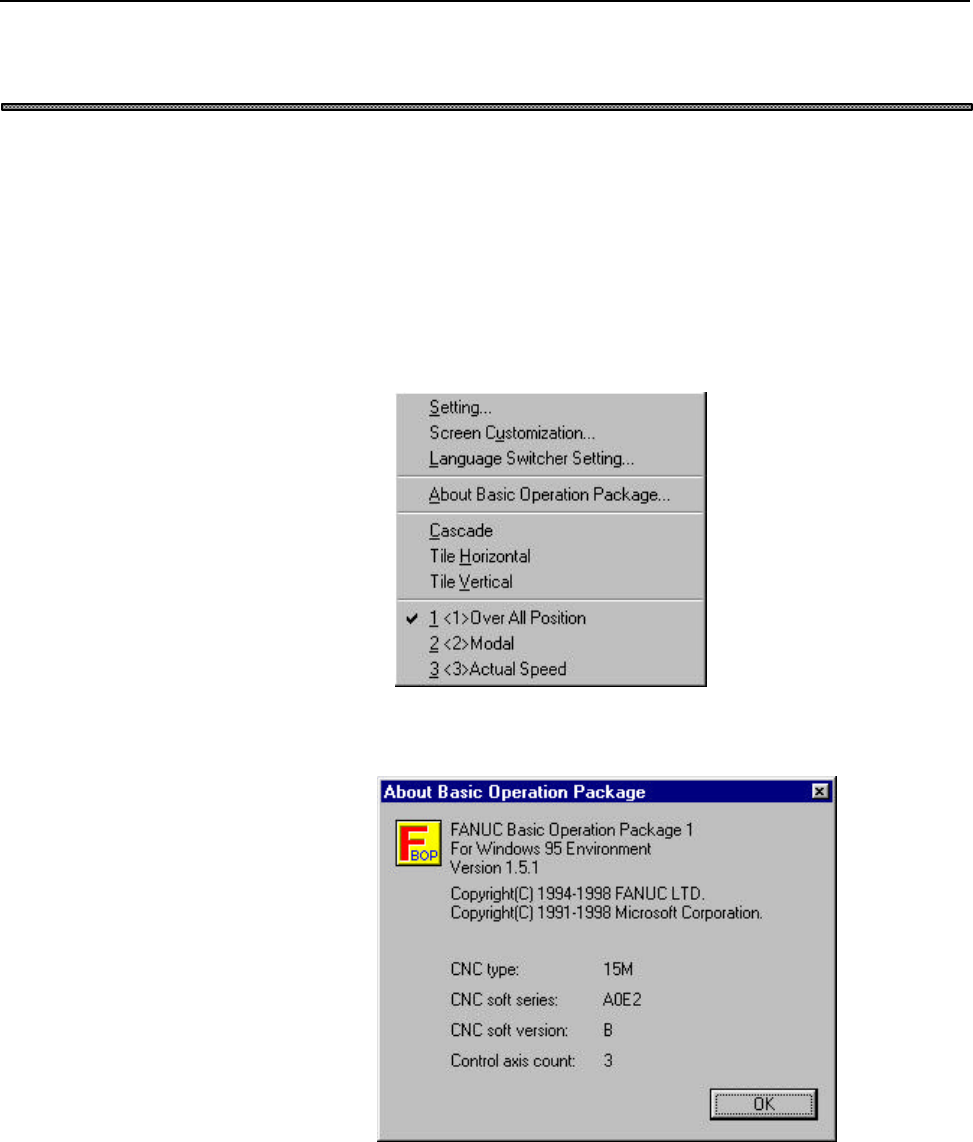

The following pop-up menu appears:

2. Choose [About Basic Operation Package...].

The [About Basic Operation Package] screen appears.

The following information is displayed:

• Version information for Basic Operation Package 1

• CNC type ("99" for the NC Board)

• CNC software series

• CNC software version

• Number of controlled axes
