4. POSITION DISPLAY B-62994EN/02
-44-

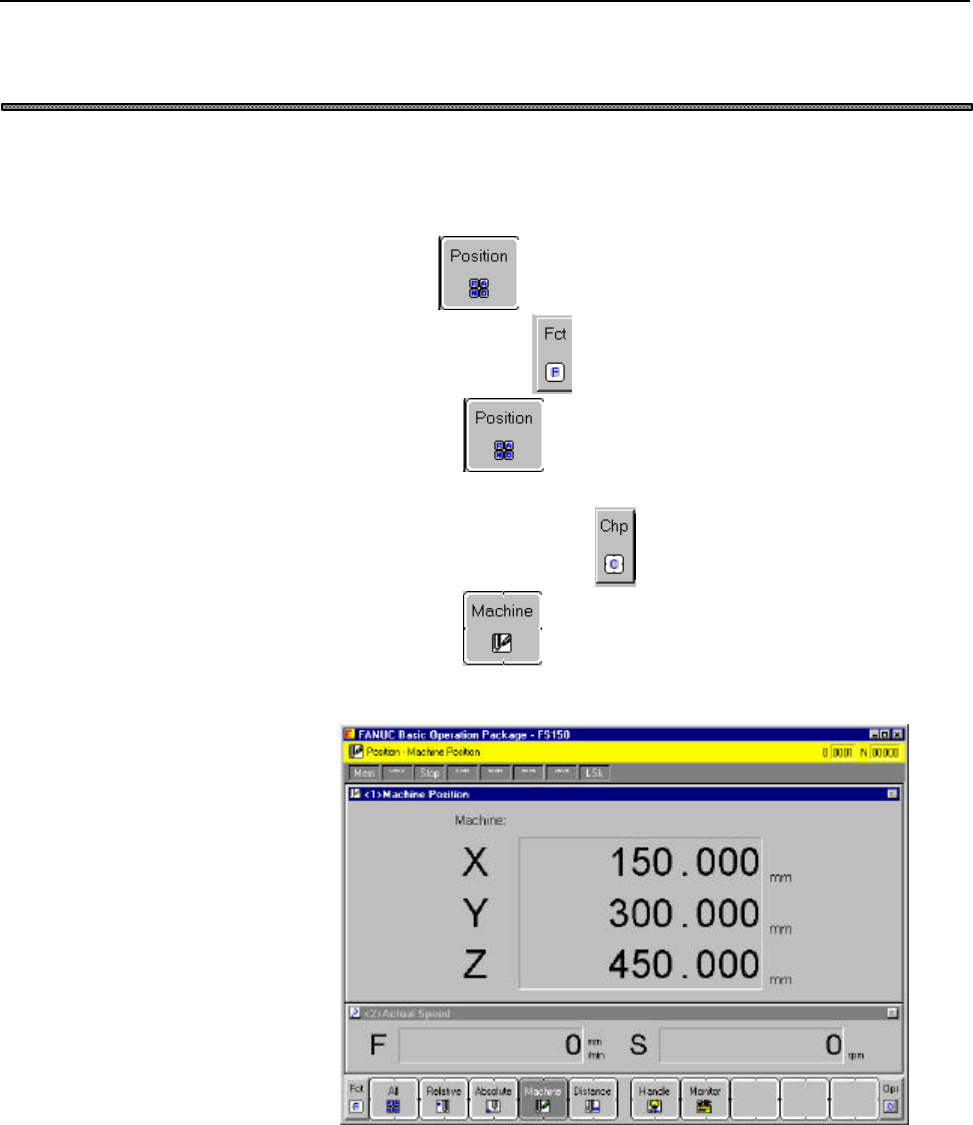

4.4 Displaying the Machine Position
This section describes how to display the machine position for the program
that is currently being executed.
Procedure
1. If the soft key is currently not displayed, press the function
selection soft key .
2. Press the soft key.
3. If the [Machine Position] screen is currently not displayed, press the
chapter selection soft key .
Press the soft key.
The [Machine Position] screen appears.
Explanation
l Machine position screen
Displays the machine position for the program that is currently being
executed. No operation can be performed on this screen.
l Actual speed screen
Displays the feedrate for the program that is currently being executed.
No operation can be performed on this screen.
