Series 15i/150i - Model B Parameter manual Page 125

Parameter manual

Page of 442

/ 442

B-63790EN/01 4.DESCRIPTION OF PARAMETERS

- 115 -

1645 Parameter 2 to set acceleration/deceleration for each axis when a constant

feedrate command for PMC axis control is specified

[Input type] Parameter input

[Data type] Integer axis

[Unit of data] msec

[Valid data range] 0 - 32767

Specify the time it takes to reach the feedrate set in parameter 1.

NOTE

When this parameter is set to 0, the

acceleration/deceleration function is disabled.

1656 Acceleration change time of bell-shaped acceleration/deceleration before

interpolation

[Input type] Parameter input

[Data type] Integer

[Unit of data] msec

[Valid data range] 0 - 200

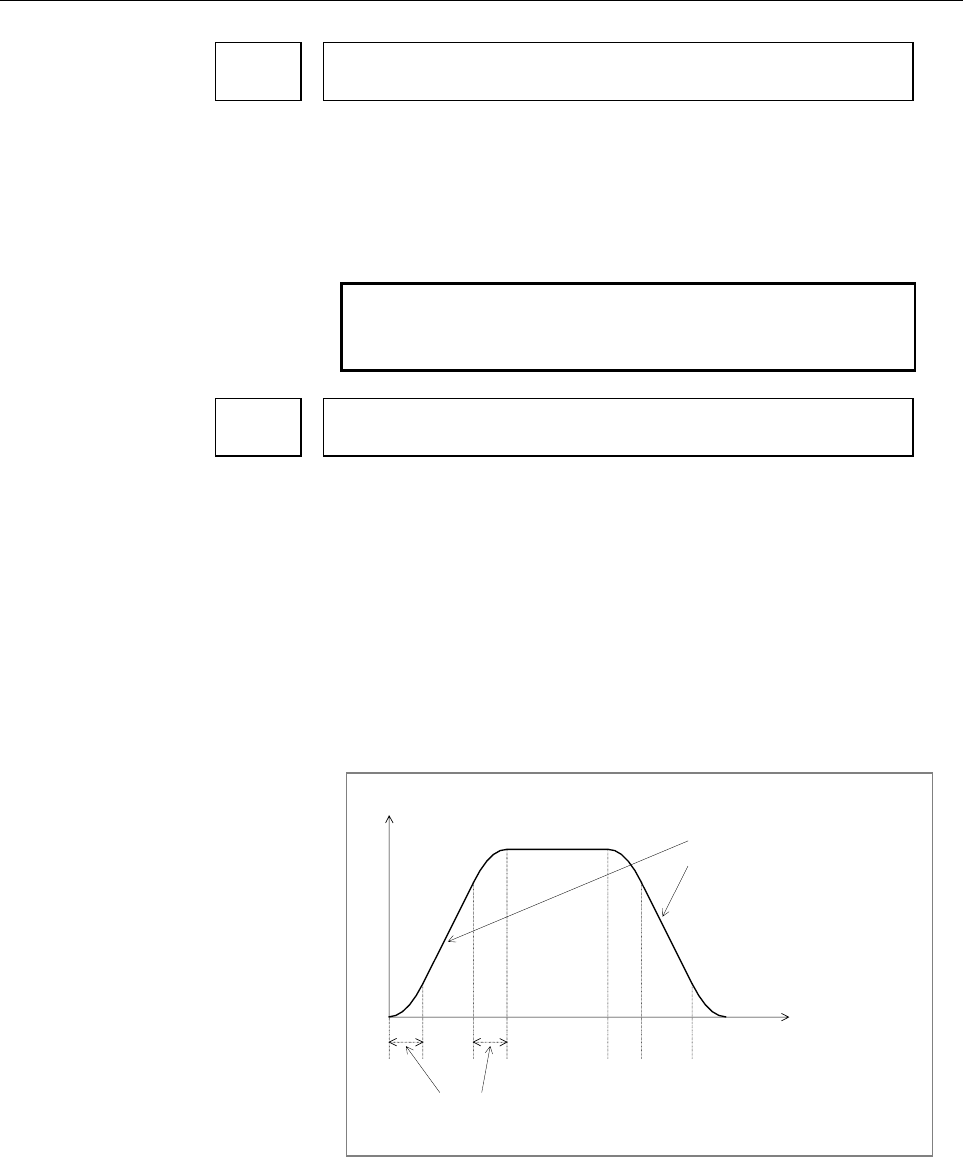

This parameter sets the acceleration change period in bell-shaped

acceleration/deceleration before interpolation (the time taken for the

change from the constant speed state (A) to the certain

acceleration/deceleration state (C) using an acceleration calculated

based on the acceleration set in parameter No. 1660: the period of (B)

in the following figure) .

Tangential feedrate

Optimum inclination is automatically

calculated based on the value set in

parameter No. 1660.

Set the period in parameter No.

1656.

(A) (B) (B) (B) (B)(A) (A)(C) (C)
