B-63790EN/01 4.DESCRIPTION OF PARAMETERS

- 321 -

6179 Angle when the tool axis direction is tilted (reference angle RA)

6180 Angle when the tool axis direction is tilted (reference angle RB)

[Input type] Parameter input

[Data type] Real

[Valid data range] Degree

[Minimum unit of data] Depend on the increment system of the applied axis

[Valid data range] 9 digit of minimum unit of data (Refer to the standard parameter

setting table (A))

(When the increment system is IS-B, -999999.999 to +999999.999)

When the tool axis is in the X-axis direction, the tool axis is set up by

tilting it through RA degrees from the positive X-axis to the positive

Y-axis in the X-Y plane and then tilting it through RB degrees from

the positive Y-axis to the positive Z-axis in the Y-Z plane.

When the tool axis is in the Y-axis direction, the tool axis is set up by

tilting it through RA degrees from the positive Y-axis to the positive

Z-axis in the Y-Z plane and then tilting it through RB degrees from

the positive Z-axis to the positive X-axis in the Z-X plane.

When the tool axis is in the Z-axis direction, the tool axis is set up by

tilting it through RA degrees from the positive Z-axis to the positive

X-axis in the Z-X plane and then tilting it through RB degrees from

the positive X-axis to the positive Y-axis in the X-Y plane.

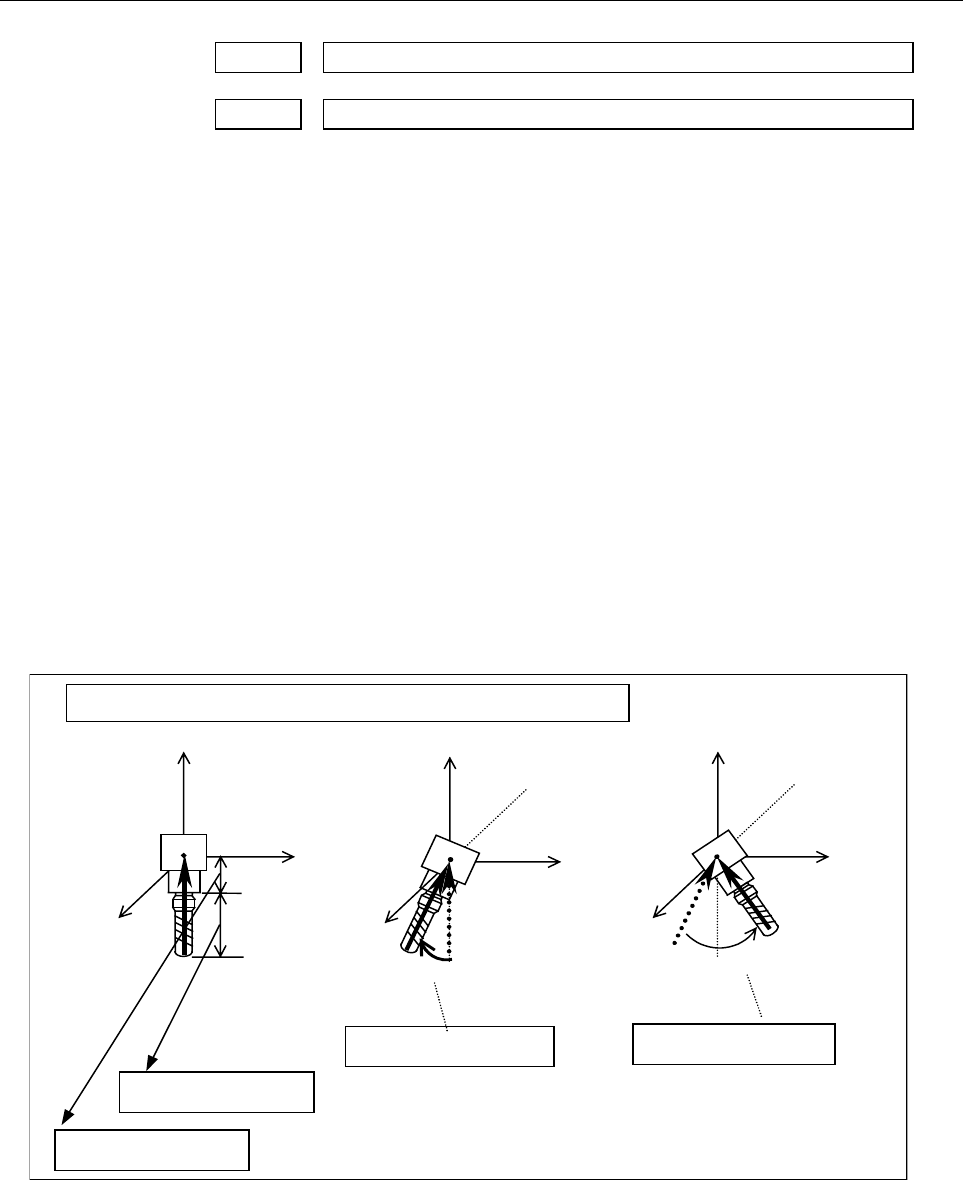

Tool axis direction when the tool axis is in the Z-axis direction

Parameter No.6179

Parameter No.6180

Tool holder offset

Tool length offset
