B–63833EN–1/02

2. PREPARATIONS FOR OPERATION

136

NOTE

6 When the HANDLE/INC or TEACH IN HANDLE mode is

selected while the CNC is operating in the MEM or MDI

mode, the automatic or MDI operation stops, the STL signal

turns to “0”, the SPL signal simultaneously turns to “1”, and

the CNC enters the HANDLE/INC or TEACH IN HANDLE

mode. Under these conditions, manual handle feed or

incremental feed by axis direction select signal is permitted.

Since the MEM mode or MDI mode commands are held,

operation can be restarted by the cycle start signal and by

selecting the MDI or MEM mode. However, if operation was

stopped by switching to the HANDLE/INC or TEACH IN

HANDLE mode during manual data input or during

automatic operation, it can be restarted only by reactivating

the mode in use before the operation was stopped (Fig. 2.6

(c)).

STL

SPL

MEM/MDI mode

Mode select signal state

HANDLE/INC or

TEACH IN HAN-

DLE mode

Operation in the MEM

mode or MDI mode

Cycle start signal

Manual handle

/incremental

feed enabled

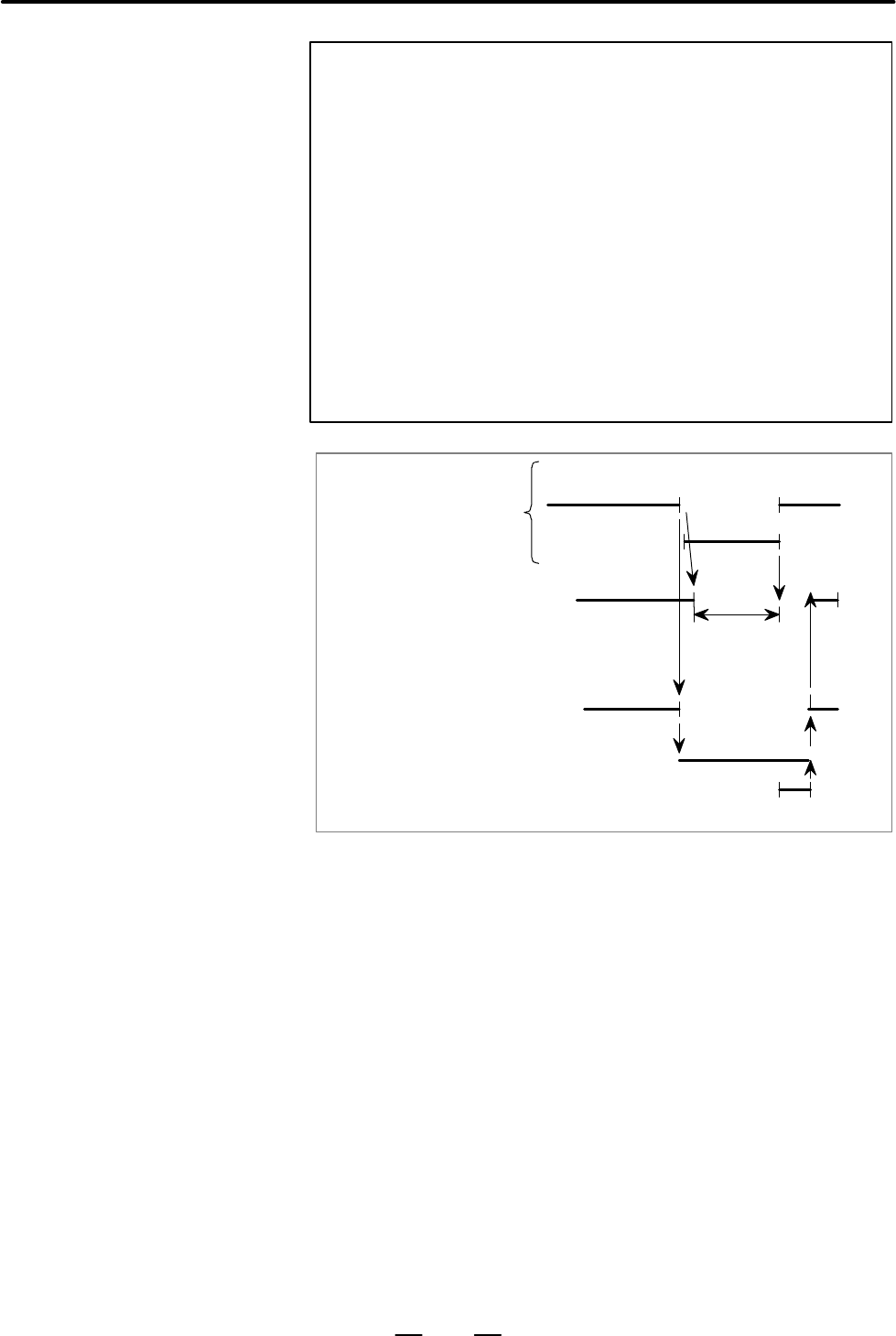

Fig. 2.6 (c)
