B–63833EN–1/02

1. AXIS CONTROL

Besides the six workpiece coordinate systems (standard workpiece

coordinate systems) selectable with G54 to G59, 48 additional workpiece

coordinate systems (additional workpiece coordinate systems) can be

used.

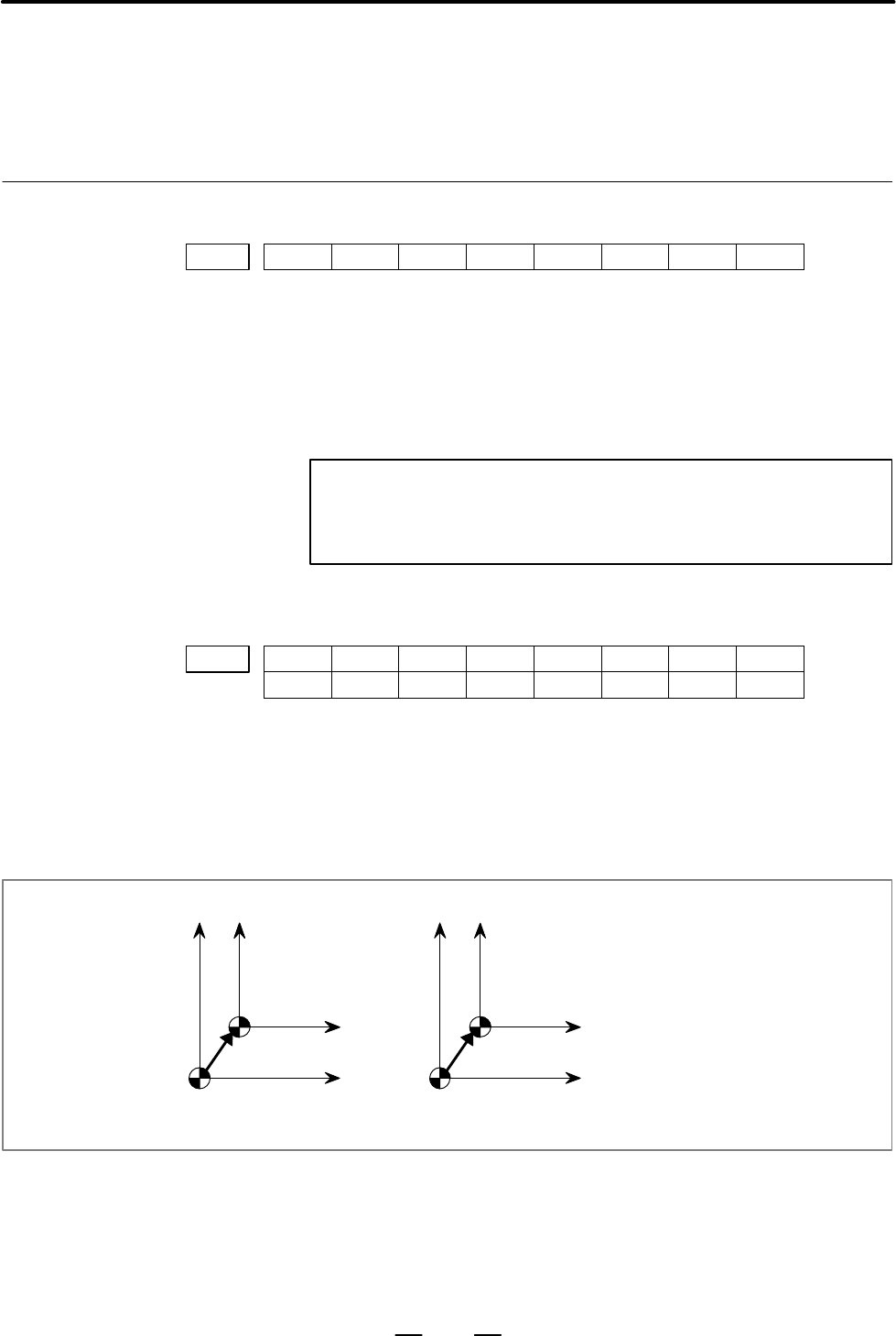

#7 #6 #5 #4 #3 #2 #1 #0

1201 AWK

[Data type] Bit

AWK Action taken after the workpiece zero point offset value is changed

0 : The absolute coordinate value is changed when the first automatic

operation is performed.

1 : The absolute coordinate value is changed immediately.(If automatic

operation is not in the start–up sequence)

NOTE

In either case, the change becomes effective when the next

block is buffered.

#7 #6 #5 #4 #3 #2 #1 #0

1202 G50 EWS EWD

[Data type] Bit

EWD The shift direction of the workpiece coordinate system is:

0 : The direction specified by the external workpiece zero point offset

value

1 : In the opposite direction to that specified by the external workpiece

zero point offset value

EWD=0

EXOFS : External workpiece zero point offset value

(Shifted workpiece

coordinate system)

EXOFS

XXX

–EXOFS

EWD=1

(Original workpiece

coordinate system)

EWS Shift value of the workpiece coordinate system and external workpiece

zero point offset value are

0 : Stored in the separate memory areas.

1 : Stored in the same memory area, that is, the shift and the offset values

are the same.

Addition of workpiece

coordinate system pair

(M series)

Parameter
