B–63833EN–1/02

4. REFERENCE POSITION ESTABLISHMENT

177

(6)Upon confirmation that the current position is at the in–position area,

the reference position return end signal (ZP1, ZP2, ZP3,…) and the

reference position establishment signal (ZRF1, ZRF2, ZRF3,…) turn

to “1”.

These steps are repeated for each axis. The number of simultaneously

controlled axes is usually one, but it becomes three by setting parameter

JAX (No. 1002#0).

If the feed axis direction selection signal (+J1, –J1, +J2, –J2,…) turns to

“0” between step (2) and (4) , the tool is stopped at once, and reference

position return is canceled. If the signal turn to “1” again, operation

resumes from step (3) (rapid traverse).

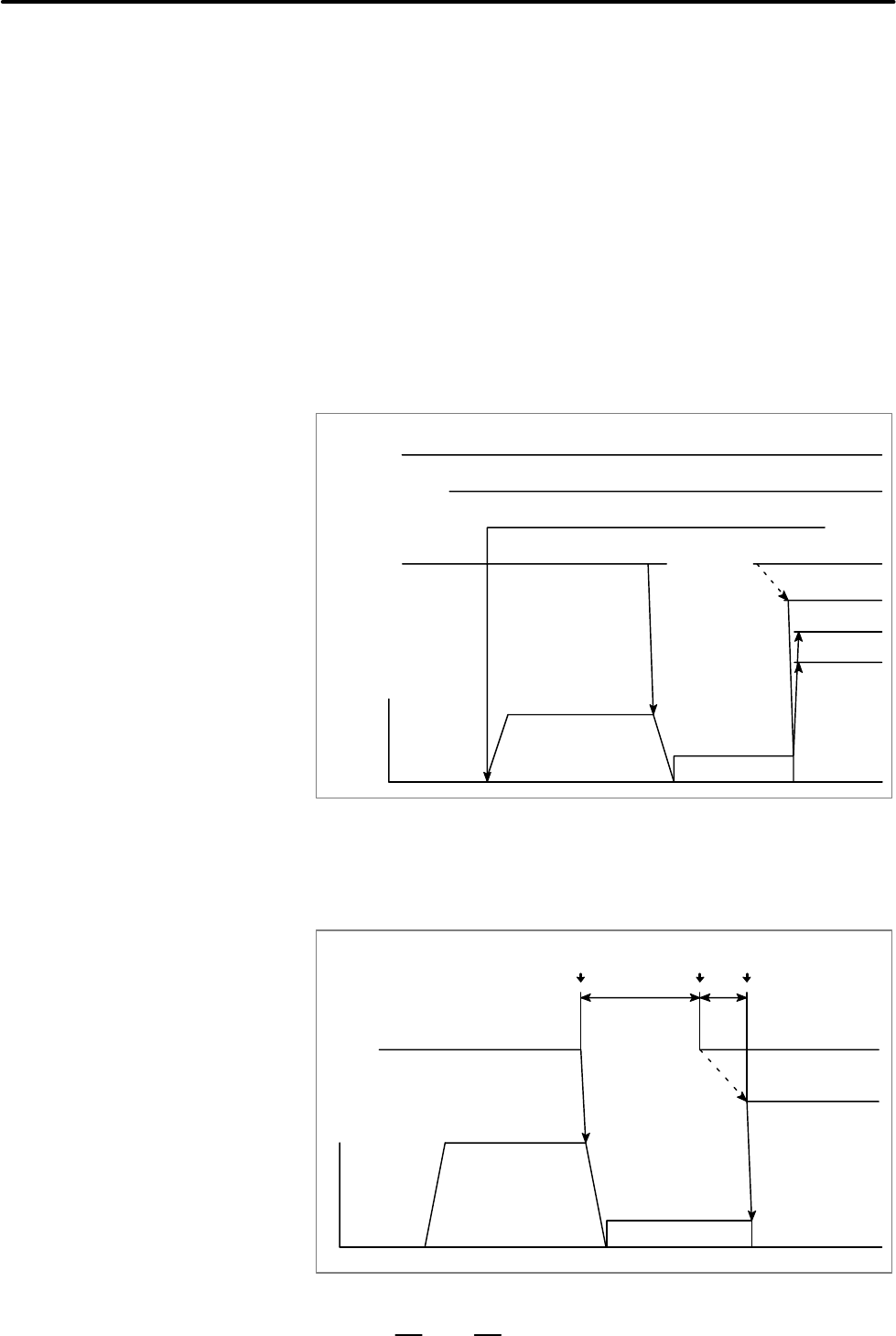

The timing charts for the basic procedures are given below.

ZRN

+J1

*DEC1

Grid

ZP1

ZRF1

Feedrate

Rapid traverse rate

FL rate

. . . . . . . . . . . . . . . . . . . . .

JOG or TEACH IN

JOG mode

When installing the deceleration limit switch for manual reference

position return, ensure that following conditions are satisfied:

*DEC1

Grid

Feedrate

Rapid traverse rate (V

)

Deceleration limit

operation position

FL rate (V

)

. . . . . . . . . . .

Reference position

Deceleration limit

release position

Installation conditions

for deceleration limit

switch
