15. PMC CONTROL FUNCTION

B–63833EN–1/02

898

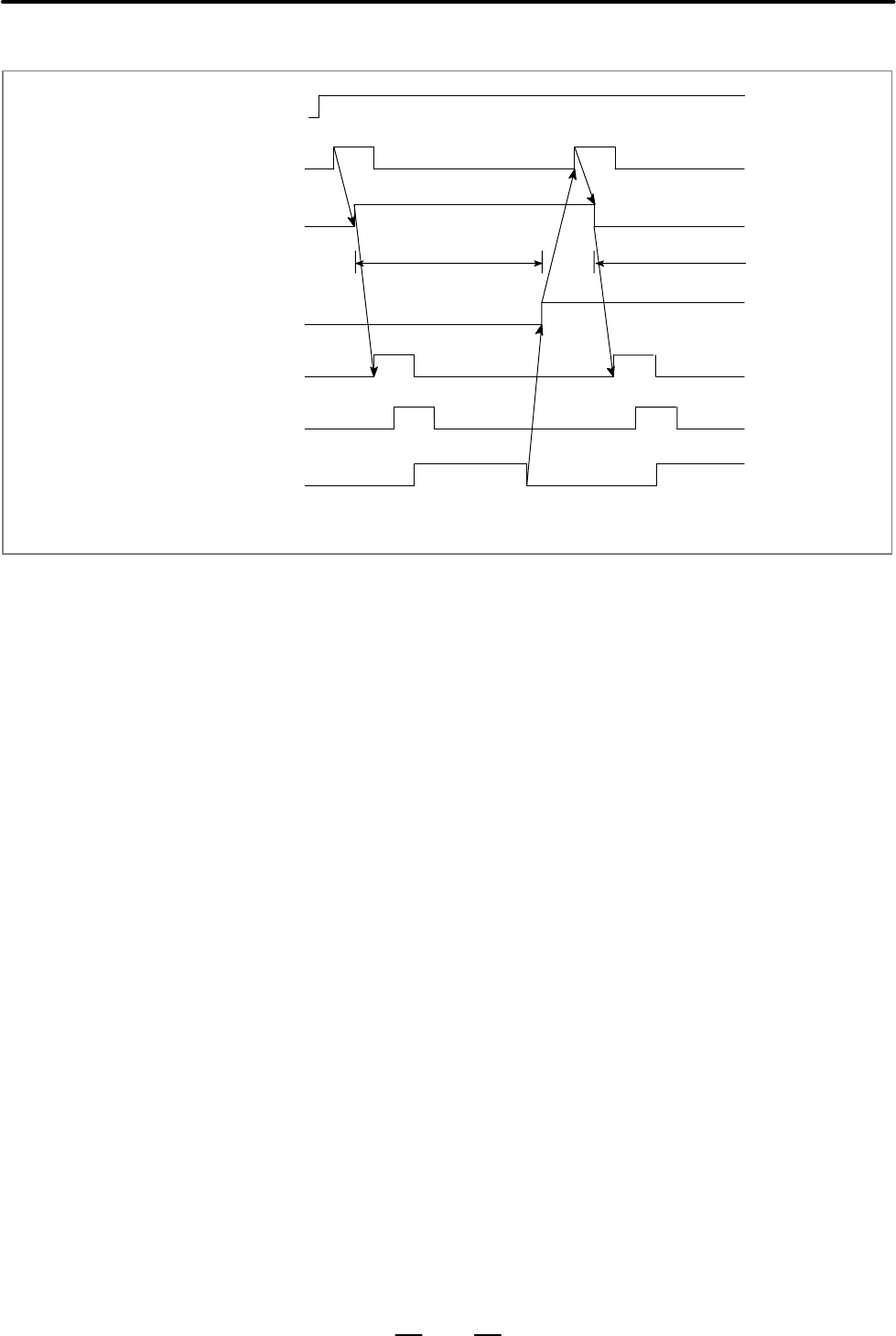

The timing chart for the command operation is shown below.

Command

disabled

EBSYg

(output)

[1]

EMBUFg

(input)

Beginning of

execution

[2]

[1] [2]

End

Command

block

(input)

EBUFg

(input)

Input buffer

Waiting buffer

Executing

buffer

Beginning of

execution

Buffering is disabled, regardless of the buffering disable signal EMBUFg,

for the following commands:

(1) Skip–feed per minute (EC0g to EC6g: 03h)

(2) Reference position return (EC0g to EC6g: 05h)

(3) 1st reference position return (EC0g to EC6g: 07h)

(4) 2nd reference position return (EC0g to EC6g: 08h)

(5) 3rd reference position return (EC0g to EC6g: 09h)

(6) 4th reference position return (EC0g to EC6g: 0Ah)

(7) Machine coordinate system selection (EC0g to EC6g: 20h)

The following commands, for which the reset signal ECLRg is used for

termination, operate as though buffering had been disabled. That is, the

subsequently specified block is not executed but canceled:

(1) Continuous feed (EC0g to EC6g: 06h)

(2) External pulse synchronization – main spindle

(EC0g to EC6g: 0Bh)

(3) External pulse synchronization – first manual handle

(EC0g to EC6g: 0Dh)

(4) External pulse synchronization – second manual handle

(EC0g to EC6g: 0Eh)

(5) External pulse synchronization – third manual handle

(EC0g to EC6g: 0Fh)

(6) Speed command (EC0g to EC6g: 10h)
