Series 0i/0i Mate - Model B Connection manual (Function) Page 877

Connection manual (Function)

Page of 1090

/ 1090

B–63833EN–1/02

14. MEASUREMENT

859

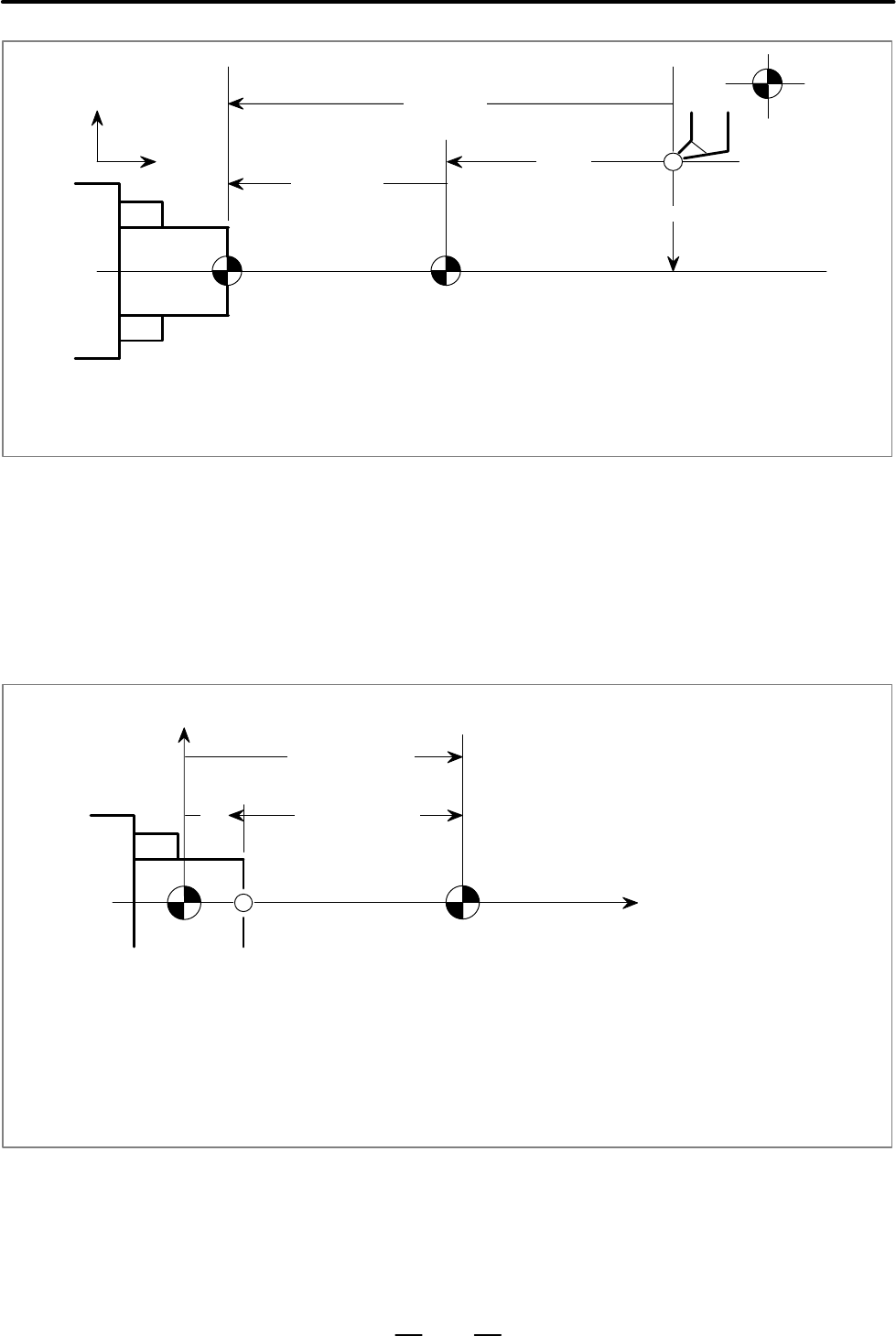

(0,0)

–EXOFS

OFS

Measuring tool nose

position at the mechani-

cal machine position

Machine

zero point

Workpiece coordinate

system zero point

(programmed zero point)

EXOFSz : Workpiece coordinate system shift amount to be set

OFSz : Tool geometry offset value

Zt : Mechanical coordinate value (Distance to the workpiece end face)

Setting of workpiece coordinate system shift amount

To deviate the programmed zero point of the workpiece coordinate

system from the workpiece end face, such as by adding a cutting

allowance, use the incremental input of the workpiece coordinate

system shift amount in MDI operation. By setting the distance from

the programmed zero point to the workpiece end face with a sign, the

numeric value input is added to the preset amount.

EXOFS

(NEW)

EXOFS

(OLD)

Cutting

allowance

Imaginary zero point

Workpiece coordinate system

programmed zero point

EXOFS

(OLD) : Workpiece coordinate system shift amount being set by the

function of input of tool offset value measured B

W : Cutting allowance (incremental input value)

EXOFS

(NEW) : Workpiece coordinate system shift amount after adding the

cutting allowance.

Setting of cutting allowance
