B–63833EN–1/02

10. TOOL FUNCTIONS

631

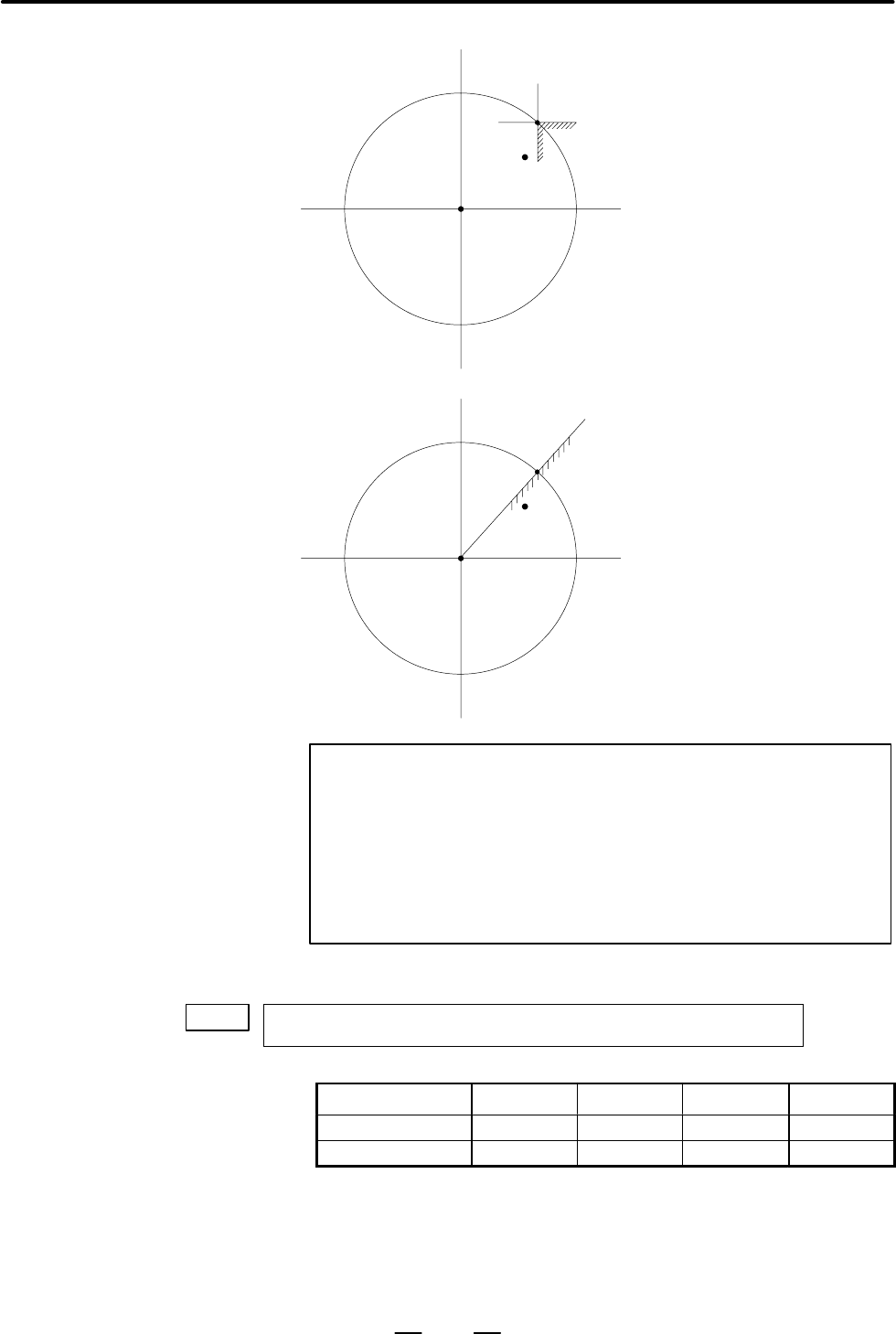

Start point

End point

Center

If the end point viewed from the start point is

in the A region, the movement is made along

the shortcut. If the end point is in the B, C,

or D region, almost a single turn is made.

[FS16 format]

Start point

End point

Center

If the end point is in the A region separated

by the line L drawn between the start point

and the center, the movement is made along

the shortcut. If the end point is in the B re-

gion, almost a single turn is made.

[FS15 format]

NOTE

The setting of this parameter determines the travel distance

determination method for circular interpolation not during

cutter compensation C (M series) or tool–nose radius

compensation (T series) as well. Accordingly, if this

parameter is set, the setting of bit 3 (CQD) of parameter No.

3450 is invalid.

5010 Limit value that ignores the vector when a tool moves on the outside of a corner

during tool nose radius compensation

[Data type] Word

Increment system IS–A IS–B IS–C Unit

Metric input 0.01 0.001 0.0001 mm

Inch input 0.001 0.0001 0.00001 inch

[Valid data range] 0 to 16383

This parameter sets the limit value that ignores a slight movement

occurring when a tool moves on the outside of a corner during tool nose

radius compensation.

[Unit of data]
