4.EDITING CYCLE MACHINING OPERATIONS OPERATION B-63874EN/05

- 78 -

4.6 ENTERING ARBITRARY FIGURE DATA FOR CYCLE

MACHINING

For cycle machining, an arbitrary figure consisting of circles and

straight lines can be entered by performing automatic calculation on

entered data to obtain the end point of each figure even if no end point

is specified on the drawing.

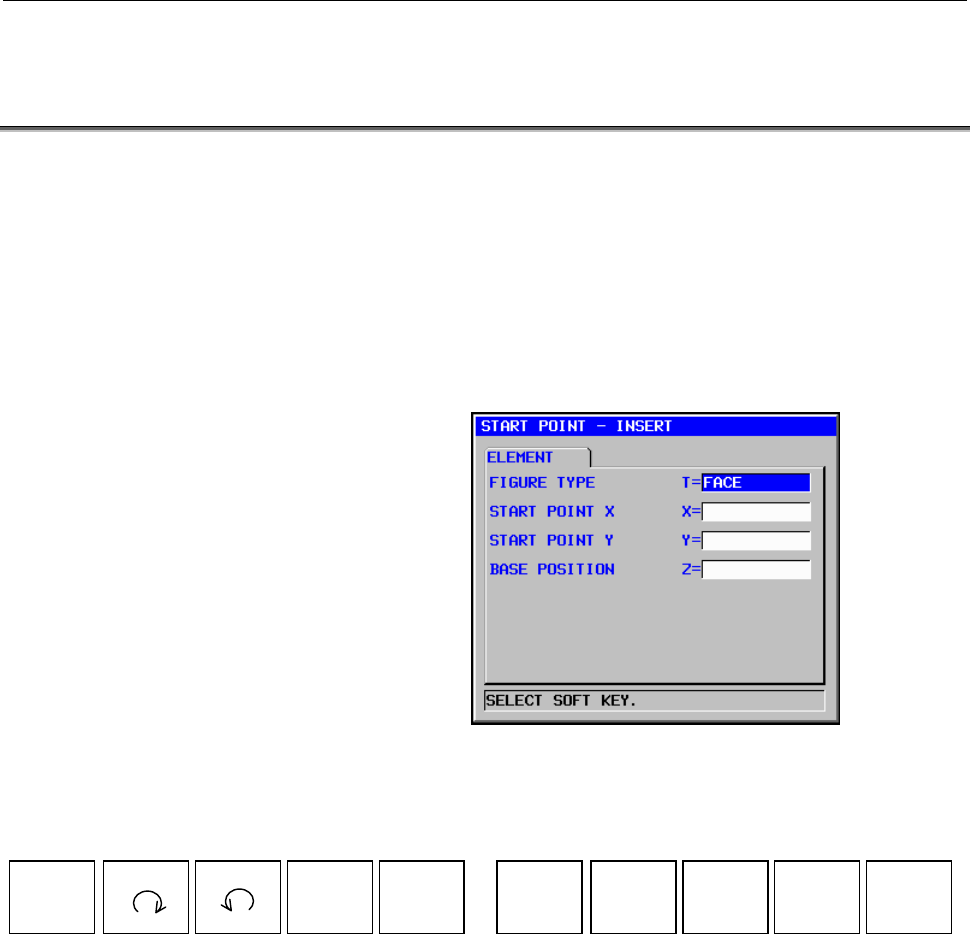

(1) Entering start points

Be sure to enter a start point for the beginning of an arbitrary

figure.

After entering necessary data, press [OK].

(2) Selecting a figure

A menu for figure selection is displayed on soft keys as shown

below. Select whatever is necessary.

(3) Entering figure data

When a figure is selected, a figure data entry window appears. In

this window, enter the figure data specified on the drawing.

There are two types of data input items. One type includes those

entered as numbers, and the other type, those selected from a

menu displayed using a soft key. For the first type, the message

"KEY IN NUMERALS." is displayed in the lower section of the

window. For the second type, the message "SELECT SOFT

KEY" is displayed.

After entering the necessary data, press [OK].

CANCELCREATE

RECALC

DELETE

ALTER

ARC

LINE
