3.SLANT FACE MACHINING (COORDINATE CONVERSION) CYCLE MACHINING TYPES B-63874EN/05

- 574 -

NOTE

G code for coordinate conversion can be selected

from the "COORDINATE CONVERSION" tab on

the milling start command menu (displayed by

pressing [START] on the milling menu).

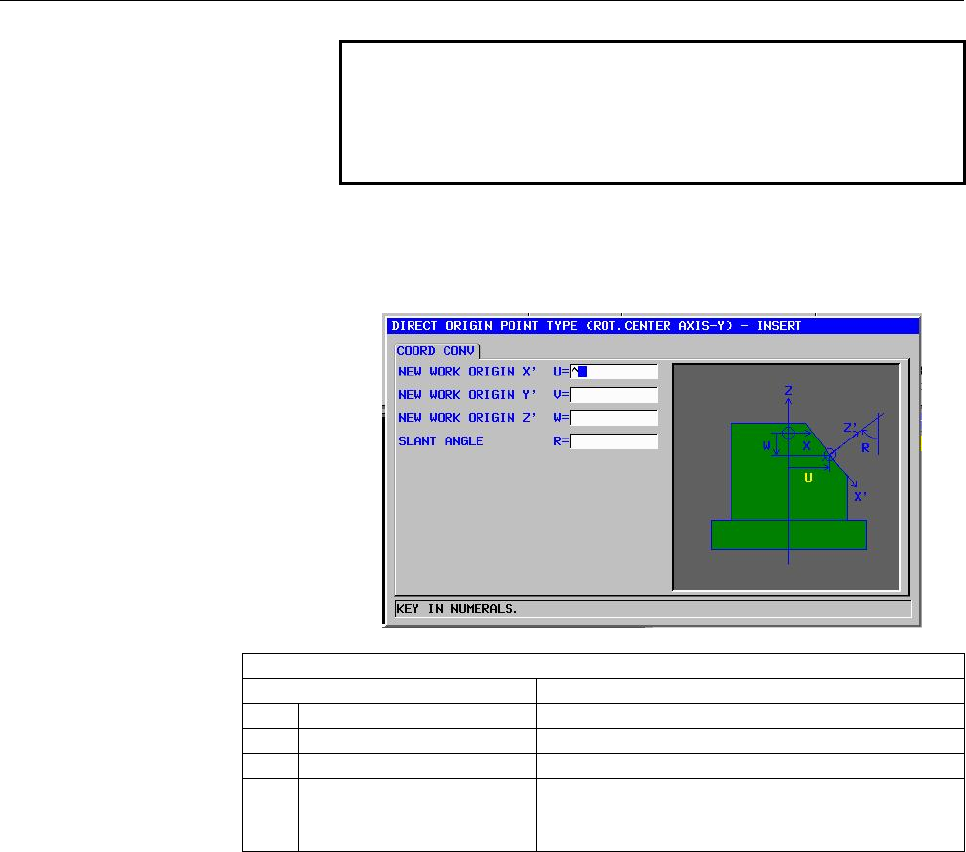

Direct origin specification (with the rotation center on the Y-axis): G1952

A machining surface rotates about the point (reference point) that serves

as the new workpiece origin of the slant face.

COORD CONVERSION

Data item Meaning

U NEW WORK ORIGIN X’ X coordinate of the workpiece origin of a slant face

V NEW WORK ORIGIN Y’ Y coordinate of the workpiece origin of a slant face

W NEW WORK ORIGIN Z’ Z coordinate of the workpiece origin of a slant face

R SLANT ANGLE Signed angle relative to the Z-axis. The CW

direction viewed from the plus direction of the

rotation axis is positive. (-90≤R≤90).
