3.VIEWING AND SETTING TOOL MANAGEMENT DATA TOOL MANAGEMENT B-63874EN/05

- 650 -

3.2 MAGAZINE DATA SCREENS (MAGAZINE 1 TO 4)

3.2.1 Screen Display Items

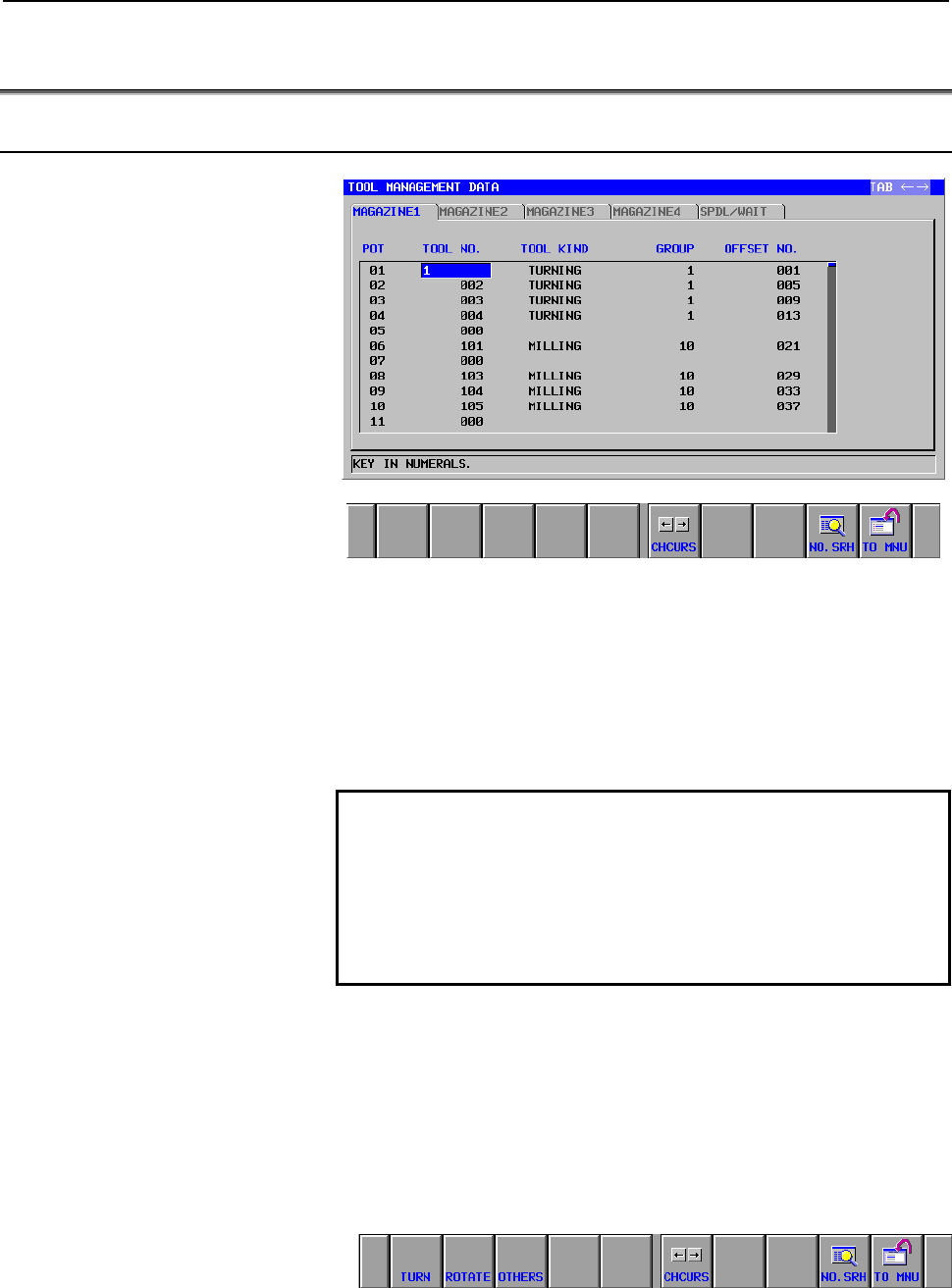

The tool number, type, group number, and offset number

corresponding to each pot are displayed.

You can change tool numbers, types, and group numbers.

Display items

POT:

Pot numbers are displayed.

You cannot set new ones from the screen.

NOTE

On the individual magazine data screens, as many

pots as the “number of data items” set in

parameters Nos. 13222, 13227, 13232, and 13237

are displayed, beginning with the “start pot number”

set in NC parameters Nos. 13223, 13228, 13233,

and 13238.

TOOL NO.:

To register a new tool number in an empty tool number field,

enter a new number and press the [INPUT] key.

To invalidate an existing tool number, enter 0.

TOOL KIND:

The “tool type” corresponding to each tool number, as

determined from the tool management data table, is displayed.

To select the desired one, press the corresponding soft key.
