10.SETTING DATA OPERATION B-63874EN/05

- 238 -

10.3.2 Modifying a Fixed Form Sentence

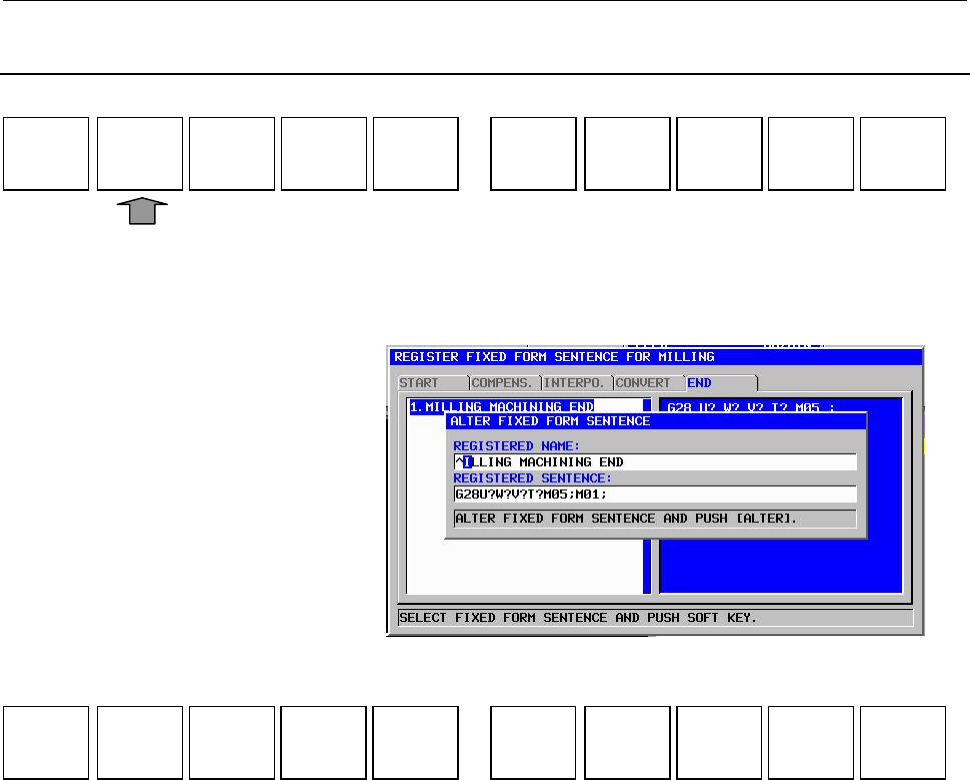

Position the cursor to the name of the fixed form sentence you want to

modify, and press [ALTER]. A window for modifying a fixed form

sentence then appears.

When the above window is displayed, the following soft keys appear:

In the "REGISTERED NAME" and "REGISTERED SENTENCE"

items, the contents of the selected fixed form sentence are displayed.

Select an item by using the ↑ and ↓ cursor keys, select the part you

want to modify by using the ← and → cursor keys, then enter a new

character string from the MDI keyboard. This character string is

inserted immediately before the cursor position.

With the CAN key, you can delete the previous character string one

character at a time.

In the same way as in registration, [COPY] and [PASTE] can also be

used.

When you have modified "REGISTERED NAME" and

"REGISTERED SENTENCE," you must press the INPUT key at the

end of the modification.

Pressing [ALTER] replaces the original fixed form sentence with the

new fixed form sentence.

CANCELALTER

PASTE

COPY

TO MNU

STAND.

DELETE

ALTER

NEW
