B-63874EN/05 OPERATION 9.MACHINING SIMULATION AND DRAWING DURING MACHINING

- 217 -

9.10 SPINDLE MOVEMENT ANIMATION FOR AUTOMATIC

LATHES

This is the additional animation function to simulate machining that

utilizes movement of spindle for automatic lathes.

The option of “spindle movement animation for automatic lathe” is

necessary to use this function.

NOTE

This function is available for only Series 16i/18i/21i.

9.10.1 Function

If the command that reflects movement of master in movement of

slave is entered in program and the command is executed, slave

tool moves too. From this movement, machining that utilizes

movement of spindle will be simulated.

9.10.2 Start Command of Reflection

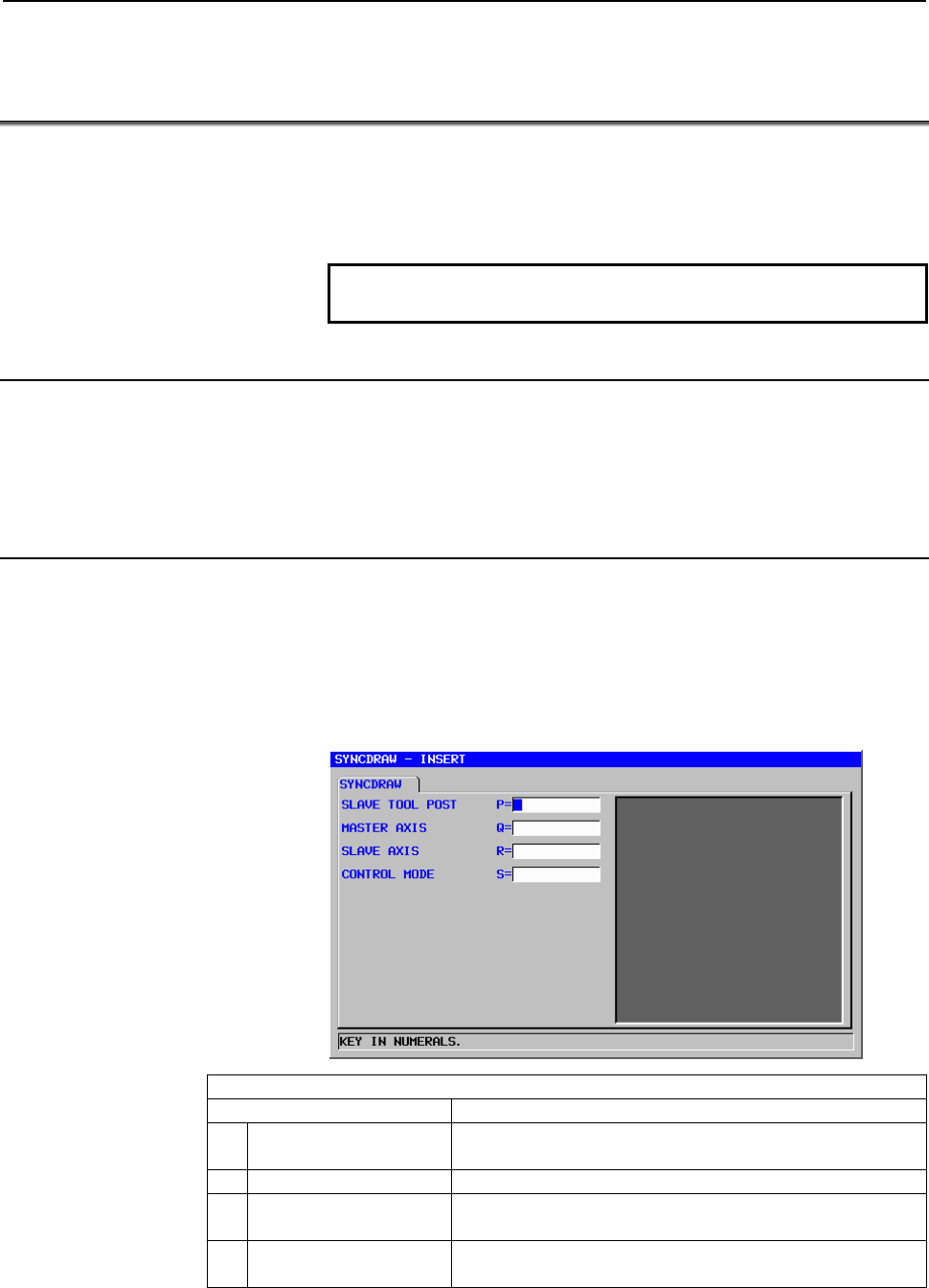

The “SYNCDRAW” tab will be displayed by pressing [START]. The

following window for inputting start command of reflection will be

displayed, after the “SYNCDRAW” tab is selected, the cursor is

placed on “START SYNCHRONIZ-ATION CONTROL” and INPUT

key is pushed. The reflection in slave starts by the command.

Start command of reflection : G1994

Condition

Data item Meaning

P SLAVE TOOL POST

Number of slave tool post in which Manual Guide

i reflects

movement of master.

Q MASTER AXIS Number of axis that is reflected (X, Y, Z, or C axis)

R SLAVE AXIS

Number of axis in which Guide

i reflects movement of

master (X, Y, Z, or C axis)

S CONTROL MODE [SYNC]:Under synchronization control mode

[NOSYNC]:Not Under synchronization control mode
