B-63874EN/04 MULTI-PATH LATHE FUNCTIONS 3.PROCESS LIST EDITING FUNCTION
- 607 -
• If the new cell is inserted on the cell having the waiting, the
waiting do not move to the new cell. (Transfer is also similar.)
• Even if current cell is input impropriety one, insertion of the
cell is possible. After insertion, the entire table is displayed
again, as the result, there are some case where overwriting is
executed.
3.5.2 Deletion of a Cell
Function
• Delete the process at the current cursor.
• In NC program,
Process start block : G1992 Sx (xxxx)
(Normal block)
Process end block : G1993
These blocks are deleted automatically.

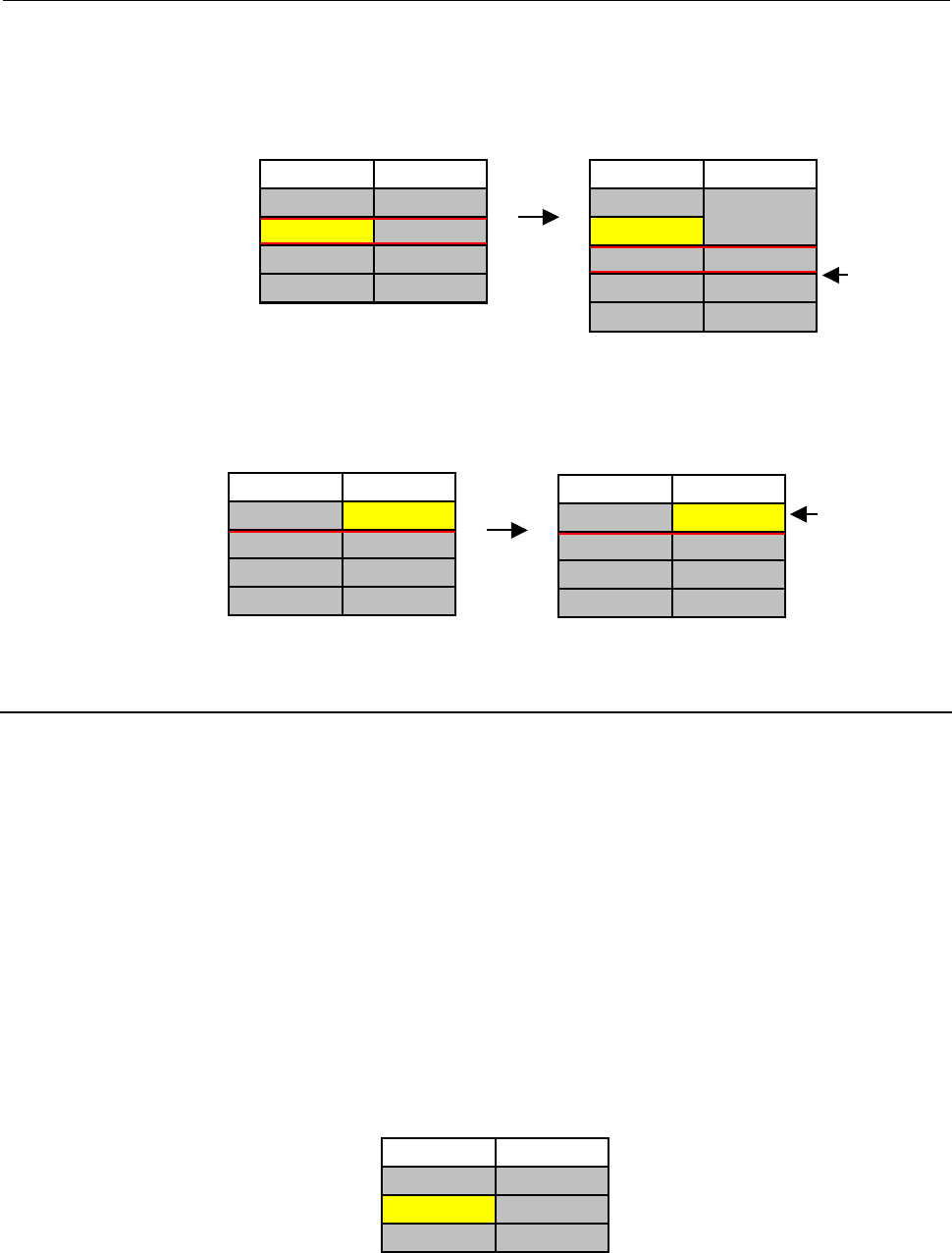

Basic operation
1. Move cursor to the cell to be deleted.
Leave
transfer
as it is.
Insert
N
10 ROUGH
N
20 TRANS
TURRET 1 TURRET 2
N
10 DRILL
N
20 TRANS
% %
N
30 FINE
N
30 TAP
N
10 ROUGH
N
30 FINE
TURRET 1 TURRET 2
N
10 DRILL
N
30 TAP
% %
N
20 TRANS
N
20 TRANS
As the
result,
overwrite on
the input
impropriety
cell.
Inser
t
N
10 ROUGH
N
20 MIDDLE
TURRET 1 TURRET 2
CAN’T
N
10 DRILL
% %
N
30 FINE
N
20 TAP
N
10 ROUGH
N
20 MIDDLE
TURRET 1 TURRET 2
N
10 DRILL
% %
N
30 FINE
N
20 TAP
N
10 ROUGH
N
20 FINE
TURRET 1 TURRET 2
N
10 DRILL
N
20 TAP
% %
