17.MEMORY CARD INPUT/OUTPUT FUNCTION OPERATION B-63874EN/05

- 280 -

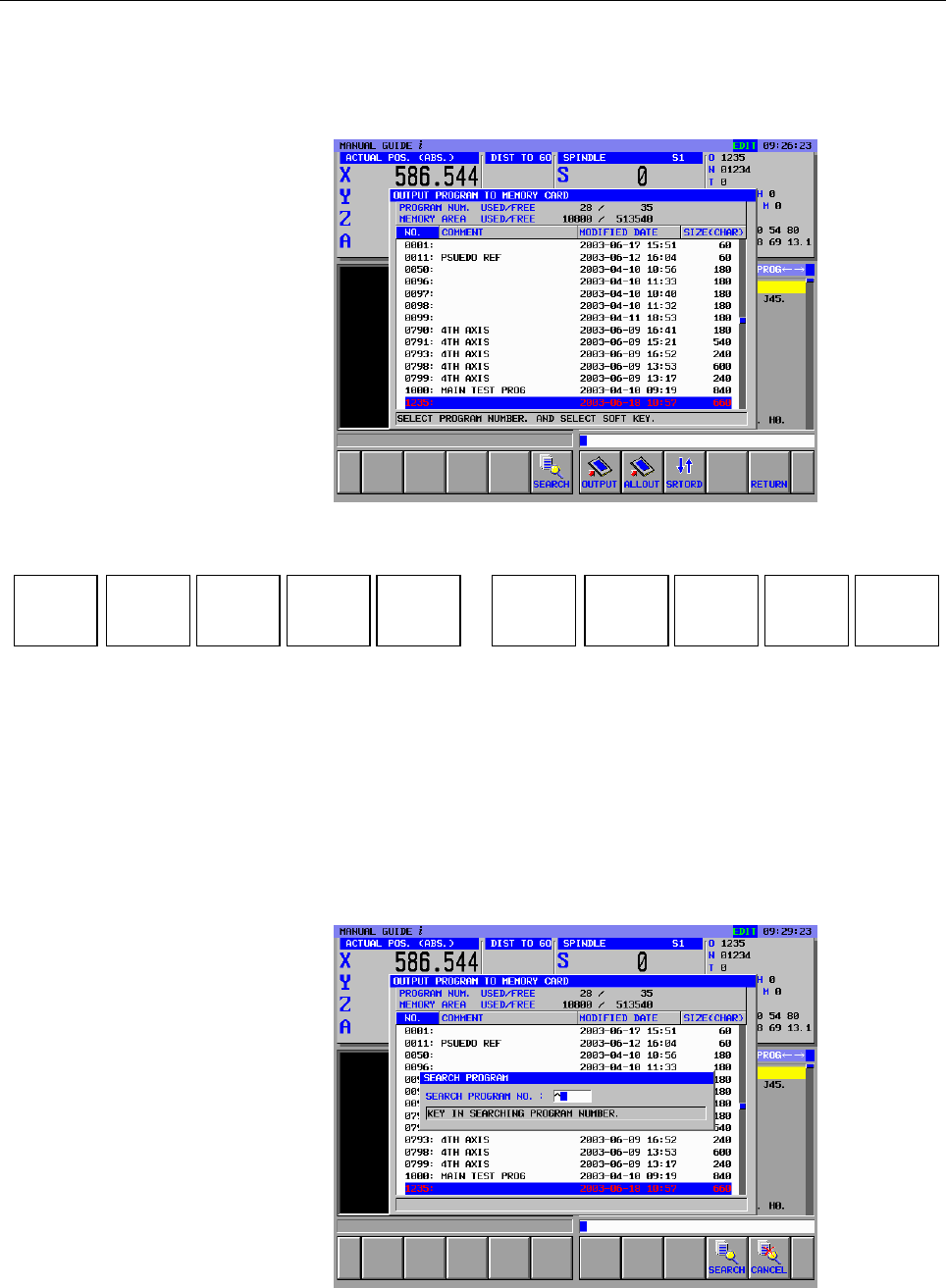

Pressing the [OUTPUT] soft key on the INPUT/OUTPUT

PROGRAM BY MEMORY CARD screen displays the OUTPUT

PROGRAM TO MEMORY CARD screen.

The following soft-keys are displayed.

[SEARCH] : Searches for a program.

[OUTPUT] : Output a selected program to the memory card.

[ALLOUT] : Output all programs to the memory card.

[SRTORD] : Switches the sort order for displaying a program list

between ascending order and descending order.

[RETURN] : Returns the screen display to the [INPUT/OUTPUT

PROGRAM BY MEMORY CARD] screen.

Pressing [SEARCH] displays the following window of program

searching.

Enter the program number to be searched, then press [SEARCH].

RETURN

SRTORD

ALLOUT

OUTPUT
