B-63874EN/05 EXAMPLE OF PROGRAMMING 2.LATHE

- 695 -

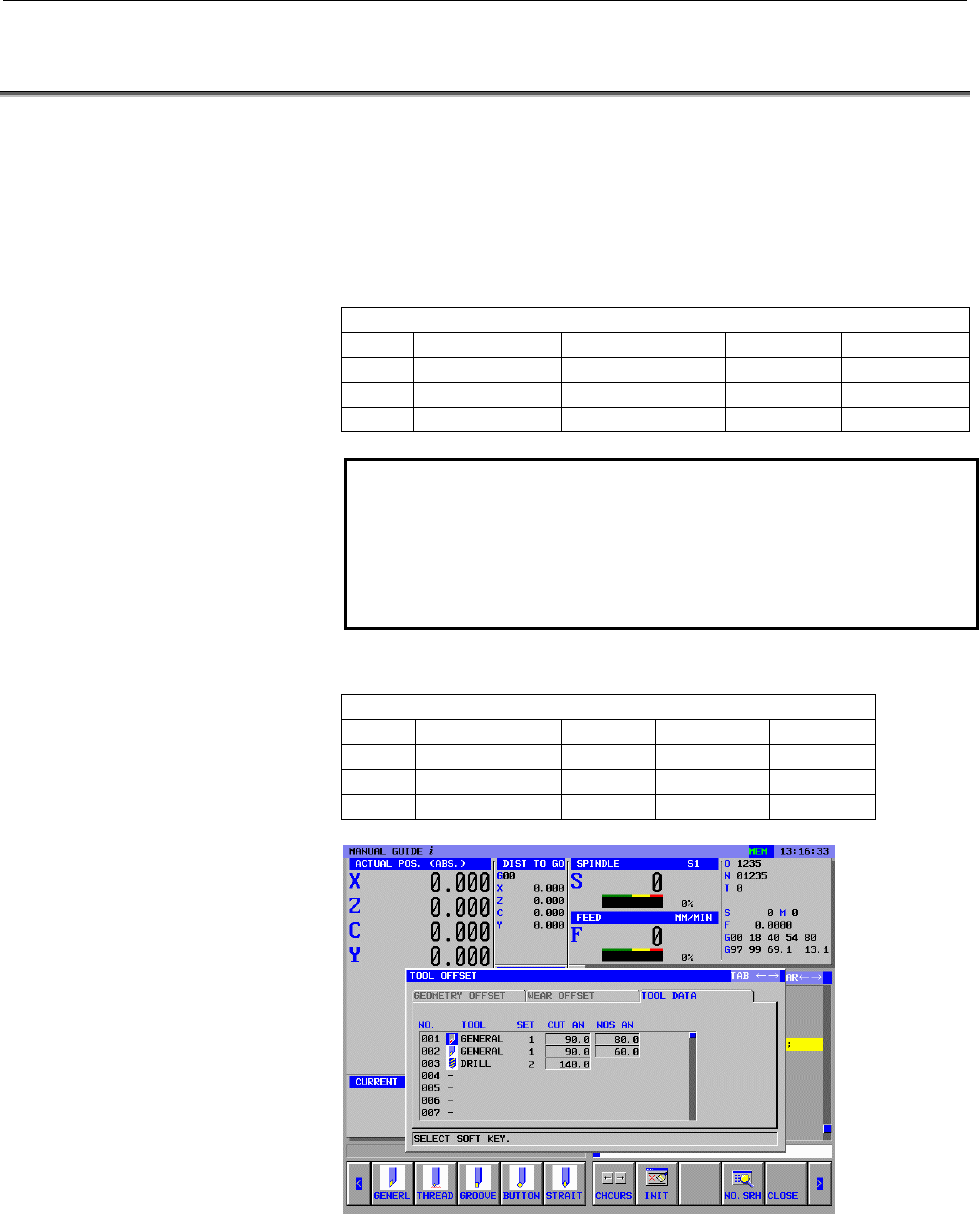

2.4 SETTING OF TOOL DATA

Set the necessary tool data. These tool data are used for displaying

tool form of animation and calculation of cutting angle in the cycle

machining.

T0101 : General purpose roughing tool

T0202 : General purpose finishing tool

T0303 : Drilling tool

Display “TOOL OFFSET” window by [T-OFS]

GEOMETRY OFFSET

NO. X-AXIS Z-AXIS RADIUS VIRT.TIP

001 -200.000 -300.000 0.800 3

002 -210.000 -310.000 0.400 3

003 -220.000 -330.000 3.000 0

NOTE

1 The above offset data are just an example, and they

cannot be used for actual machining.

2 The above offset number 003 is used for drilling

tool, and if you use it for animation, you must set the

radius amount of the drill to radius offset data.

Display “TOOL DATA” tab by pushing cursor key →

TOOL DATA

NO. TOOL SET CUT AN NOS AN

001 GENERAL 1 90.0 80.0

002 GENERAL 1 90.0 80.0

003 DRILL 2 140.0
