9.MACHINING SIMULATION AND DRAWING DURING MACHINING OPERATION B-63874EN/05

- 200 -

Arbitrary blank figure block (arc(CW)): G1972

Arbitrary blank figure block (arc(CCW)): G1973

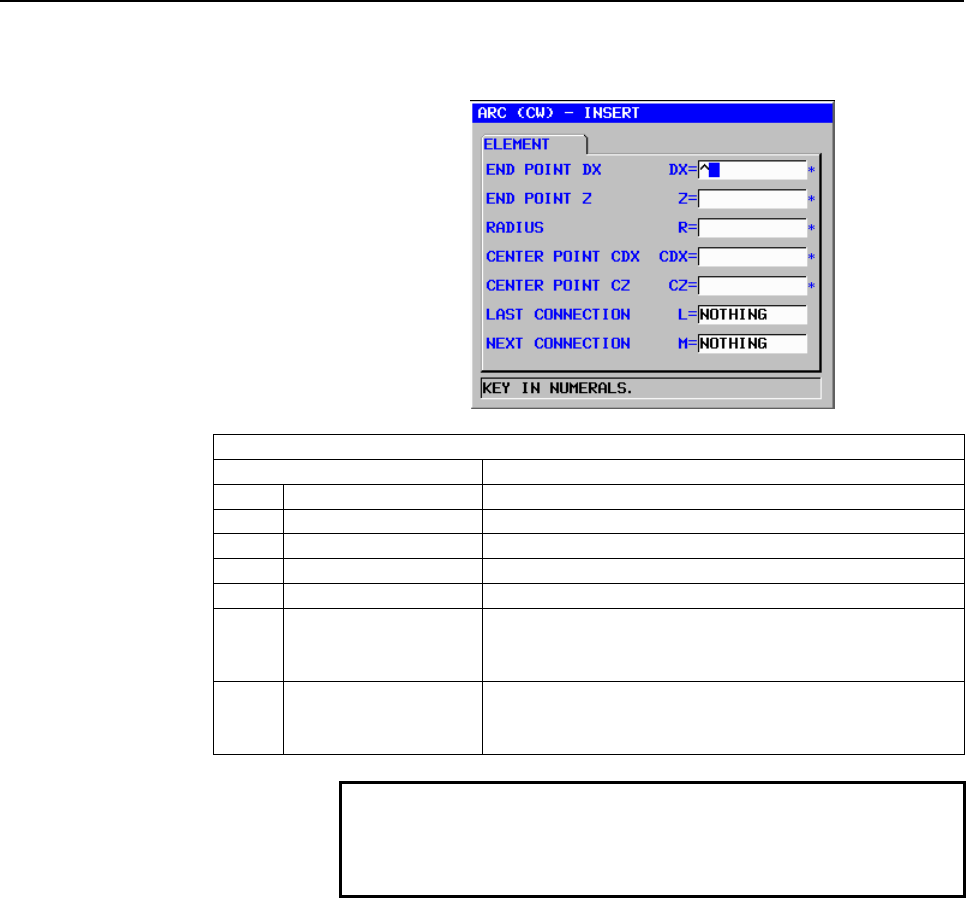

ELEMENT (INPUT DATA) (Note 1)

Data item Meaning

DX END POINT DX X coordinate of an arc end point

Z END POINT Z Z coordinate of an arc end point

R RADIUS Radius of an arc

CDX CENTER POINT CDX X coordinate of an arc center

CZ CENTER POINT CZ Z coordinate of an arc center

L LAST CONNECTION [TANGNT] : Contacts the immediately preceding figure.

[NOTHING] : Does not contact the immediately preceding

figure. (initial value)

M NEXT CONNECTION [TANGNT] : Contacts the next figure.

[NOTHING] : Does not contact the next figure. (initial

value)

NOTE

1 ‘INPUT DATA’ means the items, which are

displayed on the input data window in editing or

altering.
