B-63874EN/05 OPERATION 9.MACHINING SIMULATION AND DRAWING DURING MACHINING

- 213 -

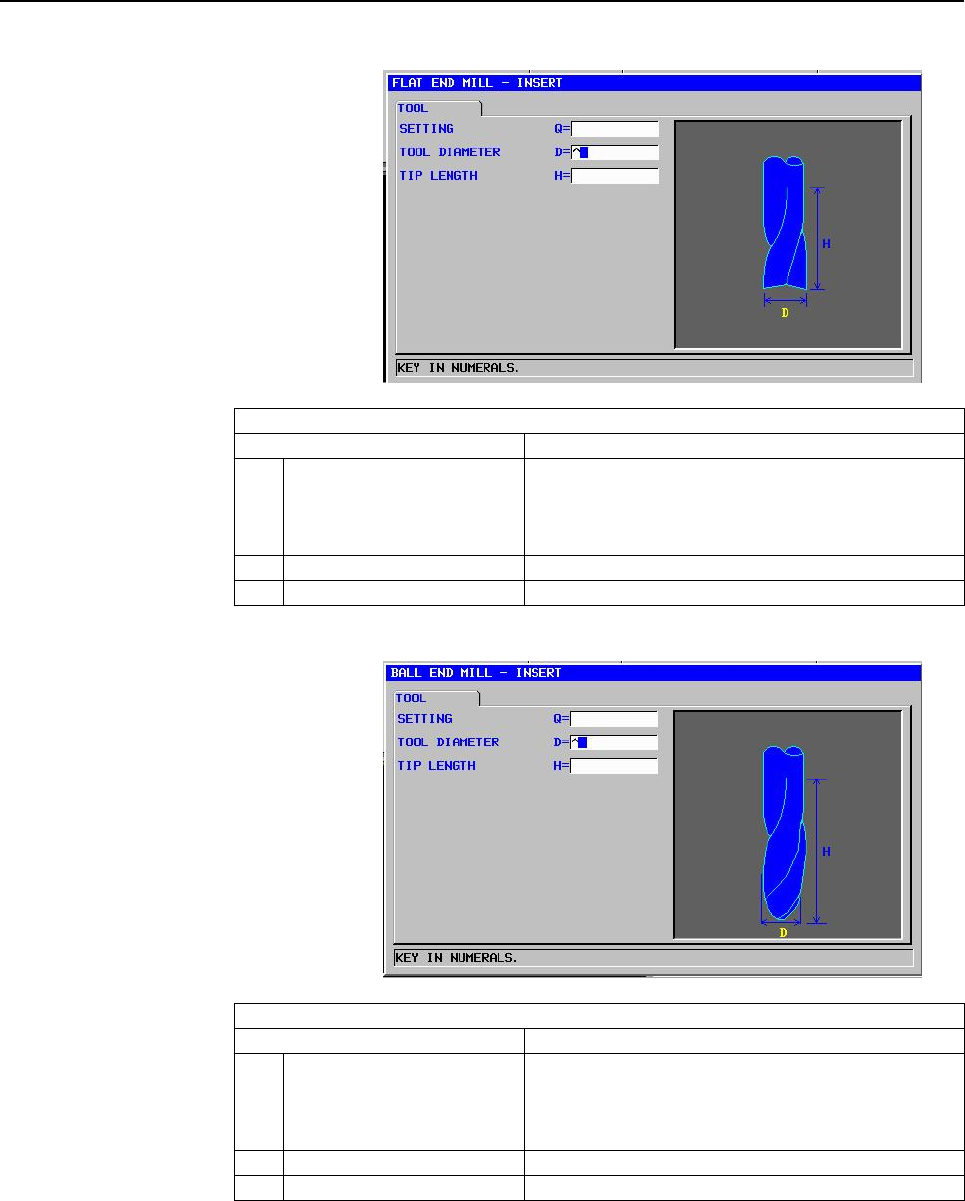

Tool definition block (flat end mill): G1932

TOOL

Data item Meaning

Q SETTING Tool installation direction. Select the number of an

installation method from the illustration.

Remark) To be selected visually for both vertical

and horizontal lathes.

D TOOL DIAMETER End mill diameter (positive value)

H TIP LENGTH End mill tool length (positive value)

Tool definition block (ball end mill): G1933

TOOL

Data item Meaning

Q SETTING Tool installation direction. Select the number of an

installation method from the illustration.

Remark) To be selected visually for both vertical

and horizontal lathes.

D TOOL DIAMETER End mill diameter (positive value)

H TIP LENGTH End mill tool length (positive value)
