Manual Guide i Operators manual Page 109

Operators manual
B-63874EN/05 OPERATION 5.DETAILED DESCRIPTIONS ABOUT ENTERING ARBITRARY FIGURES
- 87 -

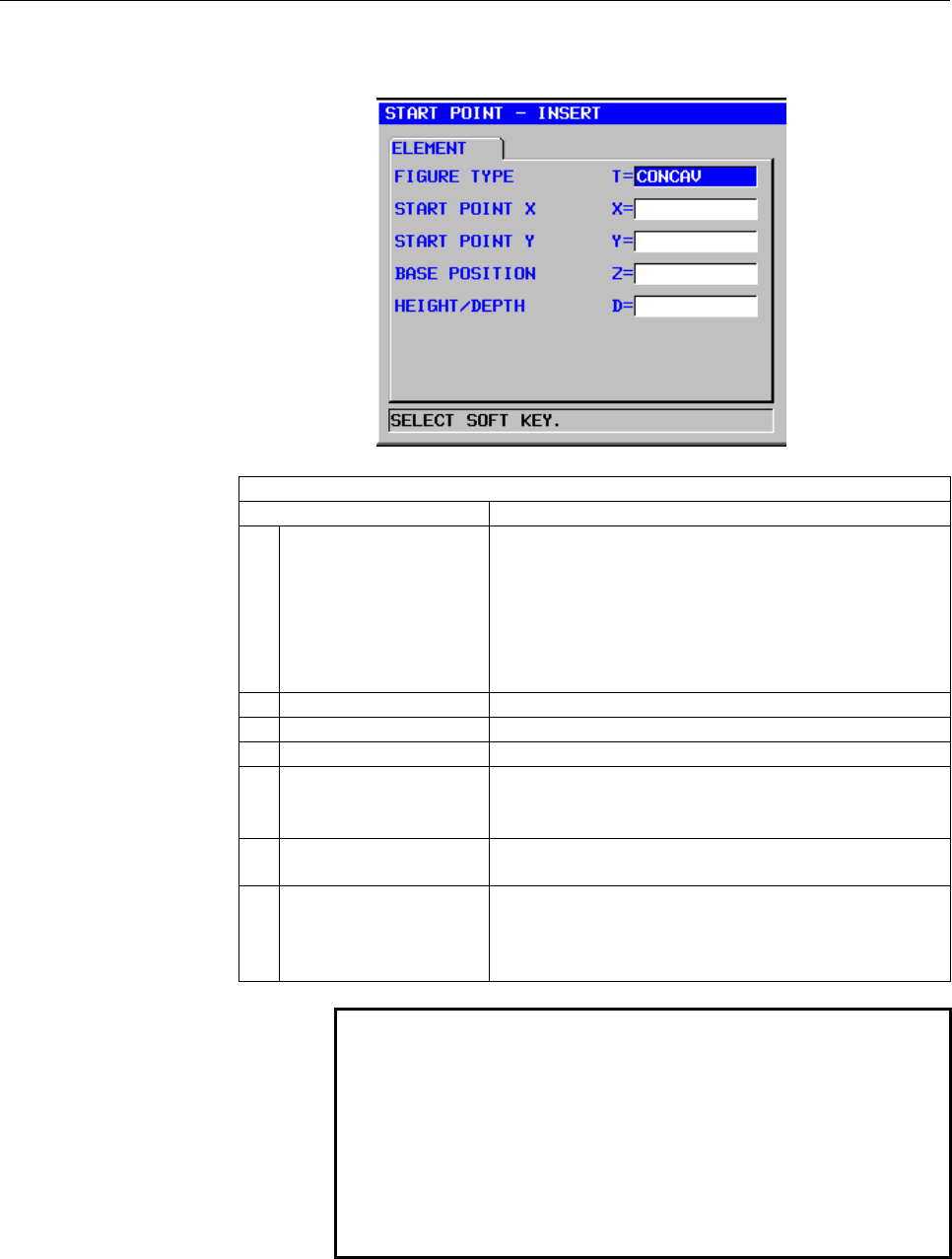

Start point: G1200 (XY plane)
ELEMENT (INPUT DATA) (Note 1)
Data item Meaning
T FIGURE ATTRIBUTE
(Note 2)
[FACE] : Used as a figure in facing
[CONVEX] : Used as an outer-perimeter figure in
contouring
[CONCAV] : Used as an inner-perimeter figure in
contouring and emboss machining or a
figure in pocketing
[GROOVE] : Used as a figure in grooving
X START POINT X X coordinate of the start point of an arbitrary figure
Y START POINT Y Y coordinate of the start point of an arbitrary figure
Z BASE POSITION Position of the machining surface of an arbitrary figure
D HEIGHT/DEPTH Height or Depth from Base position to cutting surface
Remarks) This item is displayed in Contouring,
Pocketing, Grooving and Emboss machining.
W GROOVE WIDTH Groove width (Positive value)
Remarks) This item is displayed in Grooving.
P FIGURE ATTRIBUTE [RIGHT] : The right side of an entered figure as cutting
[LEFT] : The left side of an entered figure as cutting
Remarks) This item is displayed in Open figure of
Contouring.
NOTE
1 ‘INPUT DATA’ means the items, which are
displayed on the input data window in editing or
altering.
2 Select, with a figure type for a start point, which
milling operation is to use an arbitrary figure. Data
to be entered for the start point varies depending
on what figure type is selected. For details, see
descriptions about the respective milling types.
