3.EDITING MACHINING PROGRAMS OPERATION B-63874EN/05

- 62 -

3.13 M-CODE MENU

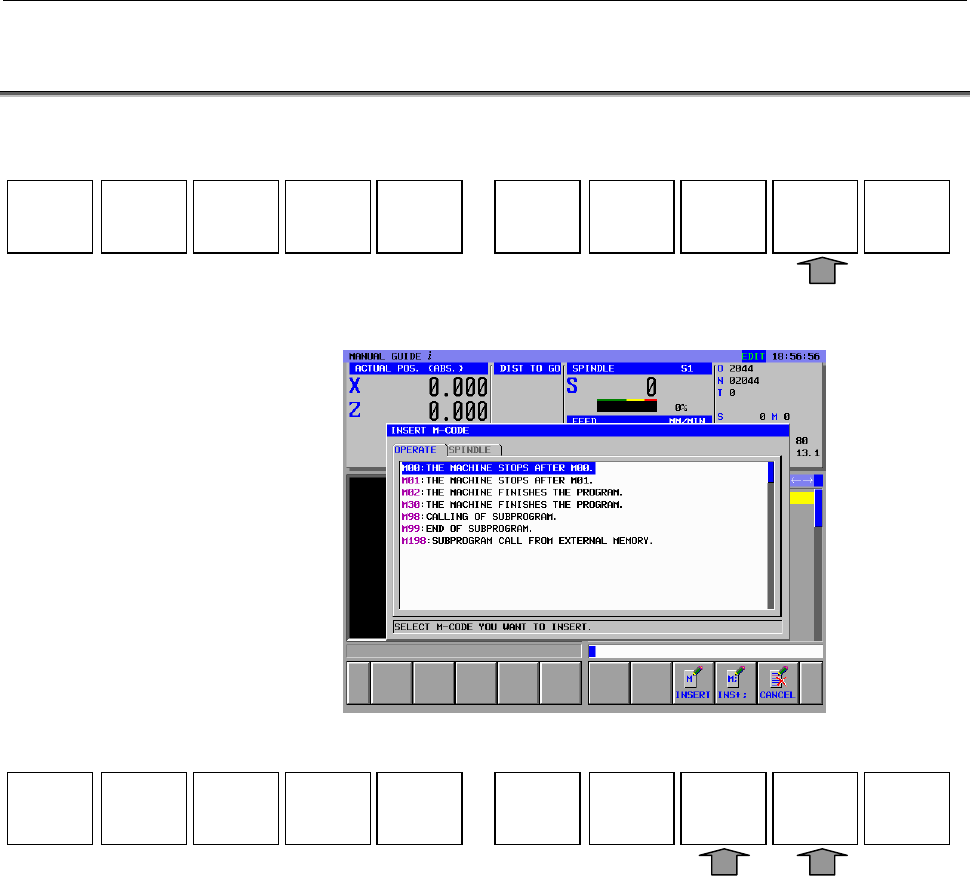

Pressing the leftmost soft key [<] or rightmost soft key [>] several

times displays [M CODE] as follows:

Pressing [M CODE] displays the M code menu.

The following soft keys are displayed for M-code menu.

Select an M code group, using the ← and → cursor keys, and then

select an M code from the M code group, using the ↑ and ↓ cursor

keys.

Pressing [INSERT] inserts the selected M code to the place that

follows immediately the cursor position in the program. Pressing

[INS+;] inserts an EOB to the place that follows immediately the M

code at the same time.

Entering M-code continuously and pressing [INS+;] at last, plural

M-code can be entered in one block.

By the following operations, M-code in a part program can be altered

directly by using M-code menu.

1) Place a cursor on the M-code should be altered.

2) Press [ALTER] or INPUT-key, then M-code menu will be

displayed.

3) Select a M-code by placing a cursor in the M-code menu

window.

FIXFRM

M CODE

FIGURE

ALTER

MECYCEND

CYCLE

START

CANCEL

INS+;

INSERT
