Manual Guide i Operators manual Page 452

Operators manual
1.MILLING CYCLE MACHINING TYPES B-63874EN/05
- 430 -

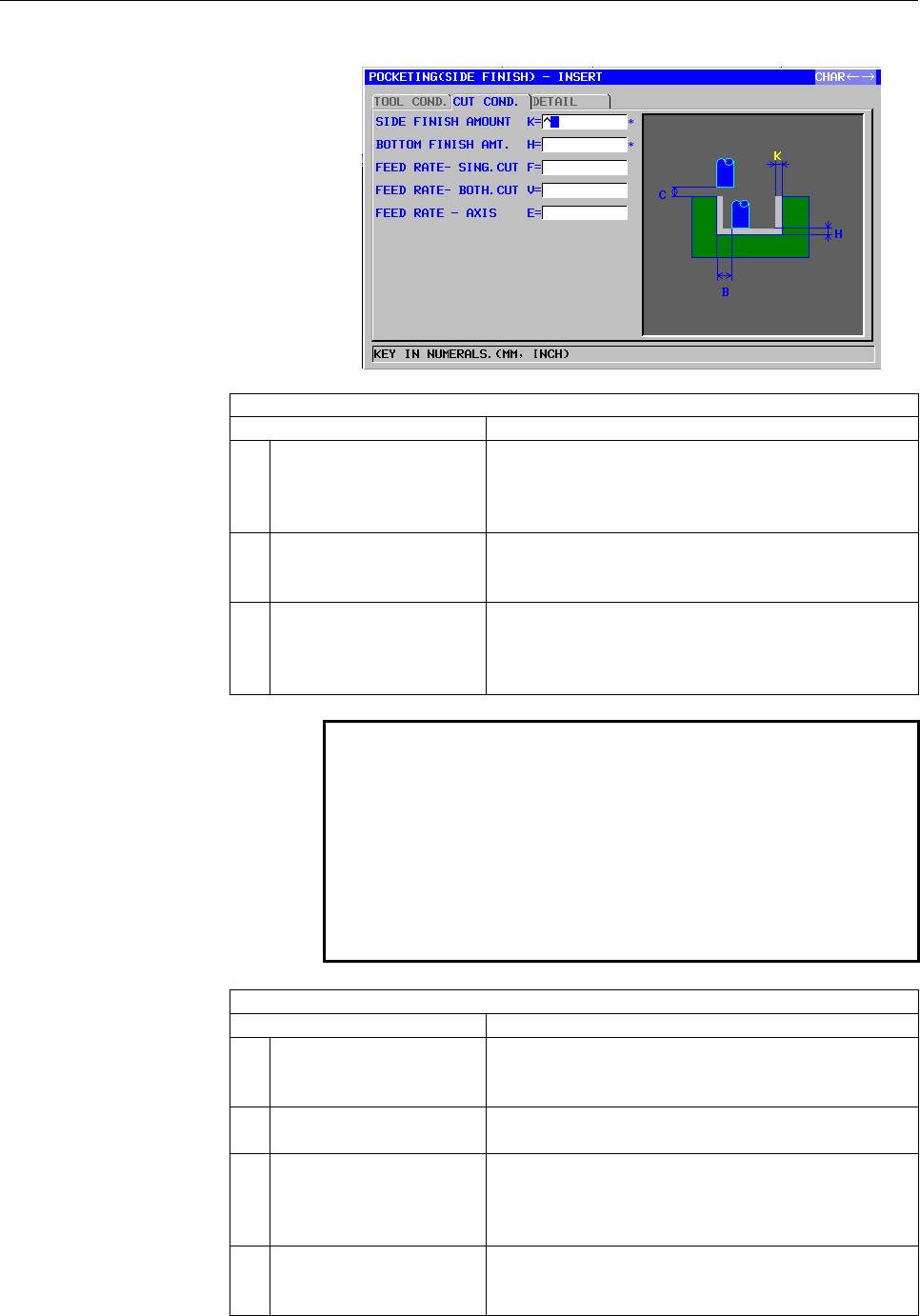

Side face finish: G1042
TOOL COND.
Data item Meaning
I INPUT [INPUT] : Inputs a cutter compensation value directly.
[REF.] : Inputs a cutter compensation number to
read a cutter compensation value by that
number.
D TOOL DIAMETER End mill diameter (positive value)
Remark) This item is indicated only when [INPUT] is
selected for INPUT.
M CUTTER COMP.NO. Cutter compensation number of an end mill (positive
value)
Remark) This item is indicated only when [REF.] is
selected for INPUT.
NOTE
1 Tab ‘TOOL COND.’ is enabled when bit 0 (TLG) of
parameter No. 27002 = 1.
2 The operator ordinarily sets the above data on the
tab of ‘TOOL DATA’ in Tool Offset window.
Therefore, it is not necessary to display the tab
‘TOOL COND.’
3 Tab ‘TOOL COND.’ is not enabled when bit 3 (PF3)
of parameter No. 27061 = 1.
CUT COND.
Data item Meaning
K* SIDE FINISH AMOUNT Finishing allowance on the side face of a pocket.
The blank is regarded as 0. (radius value, positive
value)
H* BOTTOM FINISHI AMT. Finishing allowance at the bottom of a pocket. The
blank is regarded as 0. (radius value, positive value)
F FEED RATE- SING.CUT Feedrate applicable when only the one-side cutter
portion of an end mill is used for cutting. This feedrate
is used for cutting in retract operation and on the side
face other than initial cutting.
V FEED RATE- BOTH.CUT Feedrate applicable when the entire front side of an
end mill is used for cutting. This feedrate is used for
initial cutting.
