Manual Guide i Operators manual Page 533

Operators manual
B-63874EN/05 CYCLE MACHINING TYPES 2.TURNING
- 511 -

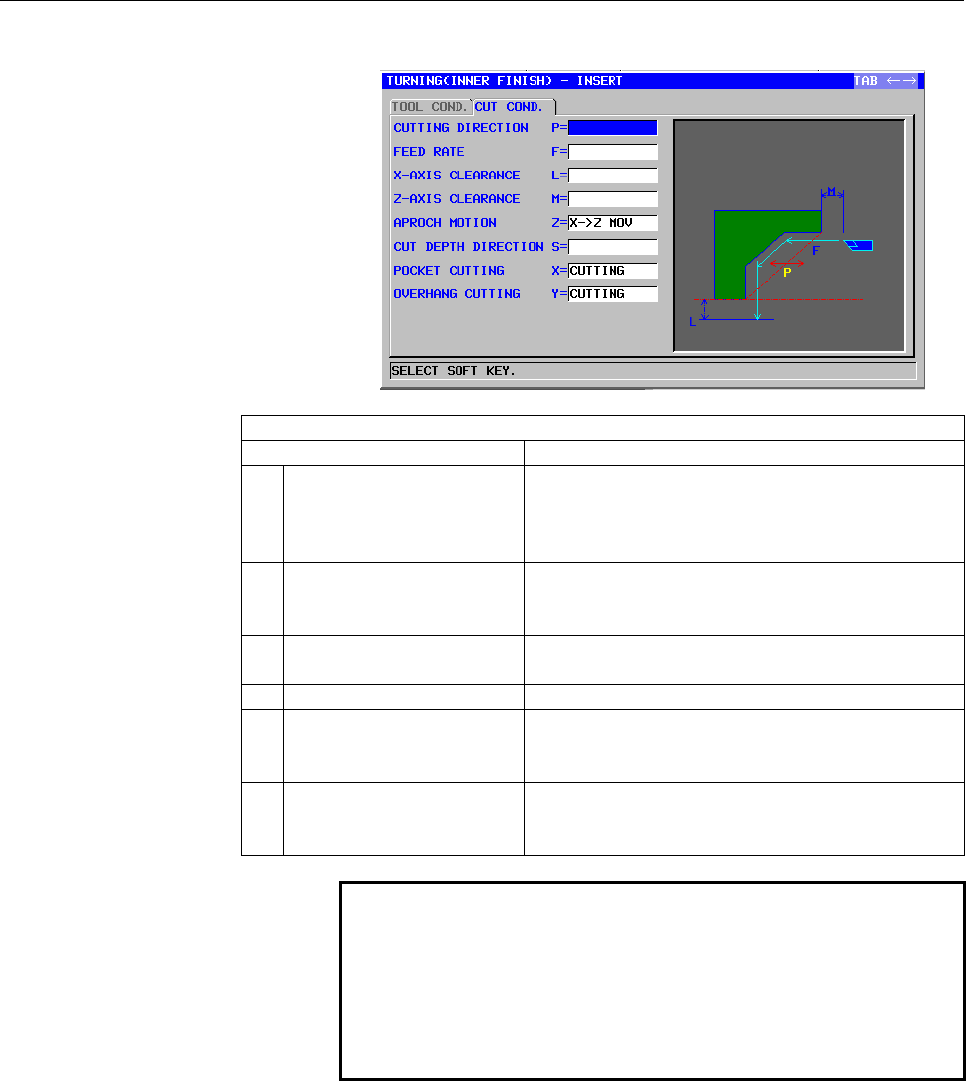

Inner surface finishing: G1127
TOOL COND.
Data item Meaning
I INPUT TYPE [INPUT] : Directly inputs the tool nose radius of a
tool used for semifinishing. (initial value)
[REF.] : Inputs the offset number of a tool used for
semifinishing to read the offset value.
R NOSE RADIUS Tool nose radius of a roughing tool (positive value)
Remark) This data item is indicated only when
[INPUT] is selected for INPUT TYPE.
A CUT EDGE ANGLE Cutting edge angle of a roughing tool (positive
value)
B NOSE ANGLE Tool angle of a roughing tool (positive value)
J IMAGINARY TOOL NOSE Imaginary tool nose position of a roughing tool
Remark) This data item is indicated only when
[INPUT] is selected for INPUT TYPE.
T OFFSET NO. Offset number of a roughing tool (positive value)
Remark) This data item is indicated only when
[REF.] is selected for INPUT TYPE.
NOTE
1 Tab ‘TOOL COND.’ is enabled when bit 0 (TLG) of
parameter No. 27102 = 1.
2 The operator ordinarily sets the above data on the
tab of ‘TOOL DATA’ in Tool Offset window.
Therefore, it is not necessary to display the tab
‘TOOL COND.’
