2.TURNING CYCLE MACHINING TYPES B-63874EN/05

- 502 -

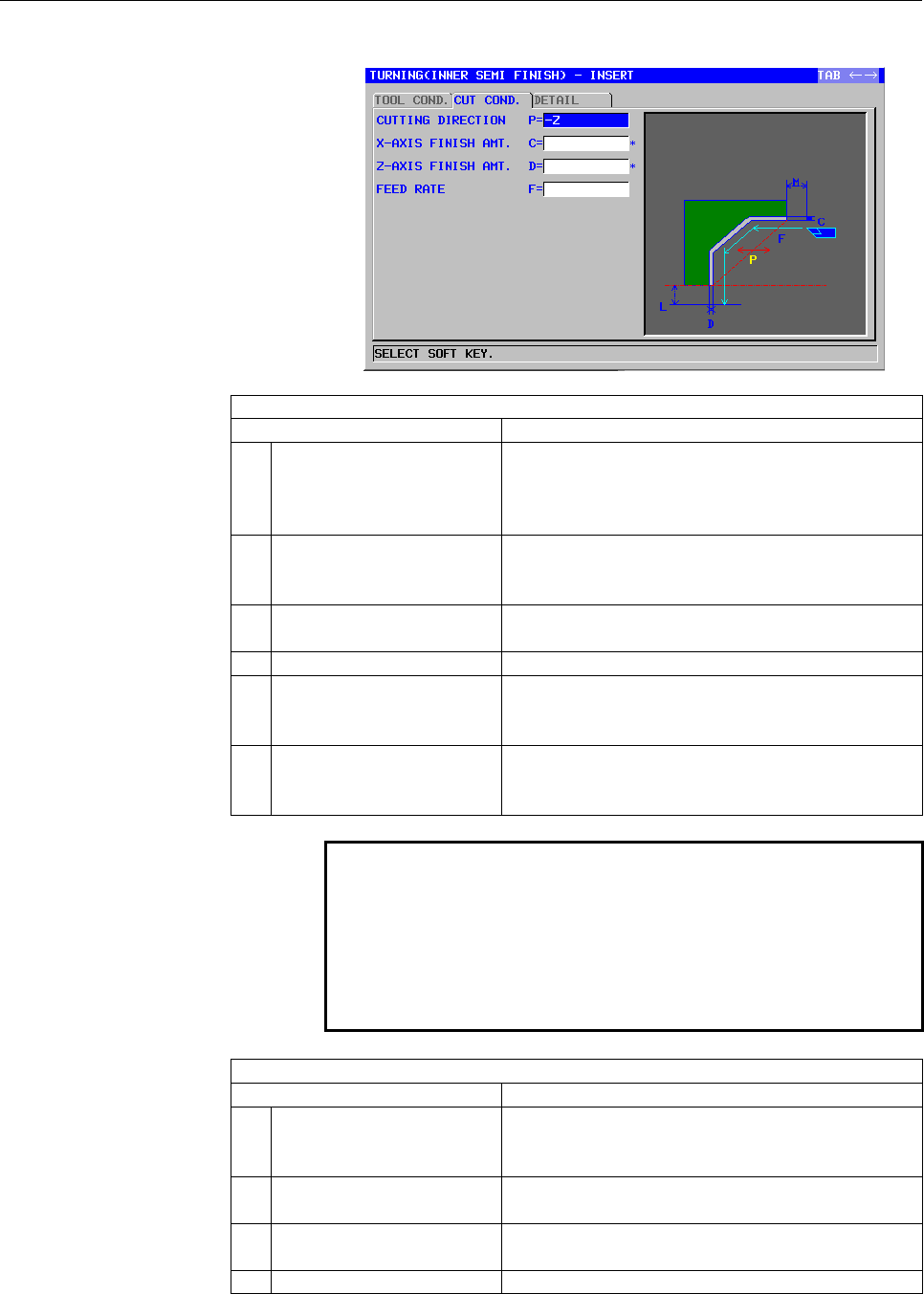

Inner surface semifinishing: G1124

TOOL COND.

Data item Meaning

I INPUT TYPE [INPUT] : Directly inputs the tool nose radius of a

tool used for semifinishing. (initial value)

[REF.] : Inputs the offset number of a tool used for

semifinishing to read the offset value.

R NOSE RADIUS Tool nose radius of a roughing tool (positive value)

Remark) This data item is indicated only when

[INPUT] is selected for INPUT TYPE.

A CUT EDGE ANGLE Cutting edge angle of a roughing tool (positive

value)

B NOSE ANGLE Tool angle of a roughing tool (positive value)

J IMAGINARY TOOL NOSE Imaginary tool nose position of a roughing tool

Remark) This data item is indicated only when

[INPUT] is selected for INPUT TYPE.

T OFFSET NO. Offset number of a roughing tool (positive value)

Remark) This data item is indicated only when

[REF.] is selected for INPUT TYPE.

NOTE

1 Tab ‘TOOL COND.’ is enabled when bit 0 (TLG) of

parameter No. 27102 = 1.

2 The operator ordinarily sets the above data on the

tab of ‘TOOL DATA’ in Tool Offset window.

Therefore, it is not necessary to display the tab

‘TOOL COND.’

CUT COND.

Data item Meaning

P CUTTING DIRECTION [-Z] : Cuts in the -Z direction.

[+Z] : Cuts in the +Z direction.

(COPY)

C* X-AXIS FINISH AMT. Finishing allowance in the X-axis direction. The

blank is regarded as 0. (radius value, positive value)

D* Z-AXIS FINISH AMT. Finishing allowance in the Z-axis direction. The

blank is regarded as 0. (radius value, positive value)

F FEED RATE Cutting feedrate for semifinishing (positive value)
