2.5.2 Operations of “START” Menu

By pushing [START] in the soft-key menu for turning machining, the

window “INSERT STARTING COMMAND FOR TURNING” with

the following tabs is displayed.

<START> : Fixed form sentence menu used for the top of part

program or each machining process.

<BLANK> : Blank form menu, which is necessary for animation.

2.5.2.1 Entering blank form data

By selecting a tab <BLANK> by cursor key, blank form menu is

displayed.

Enter blank form data as a round bar.

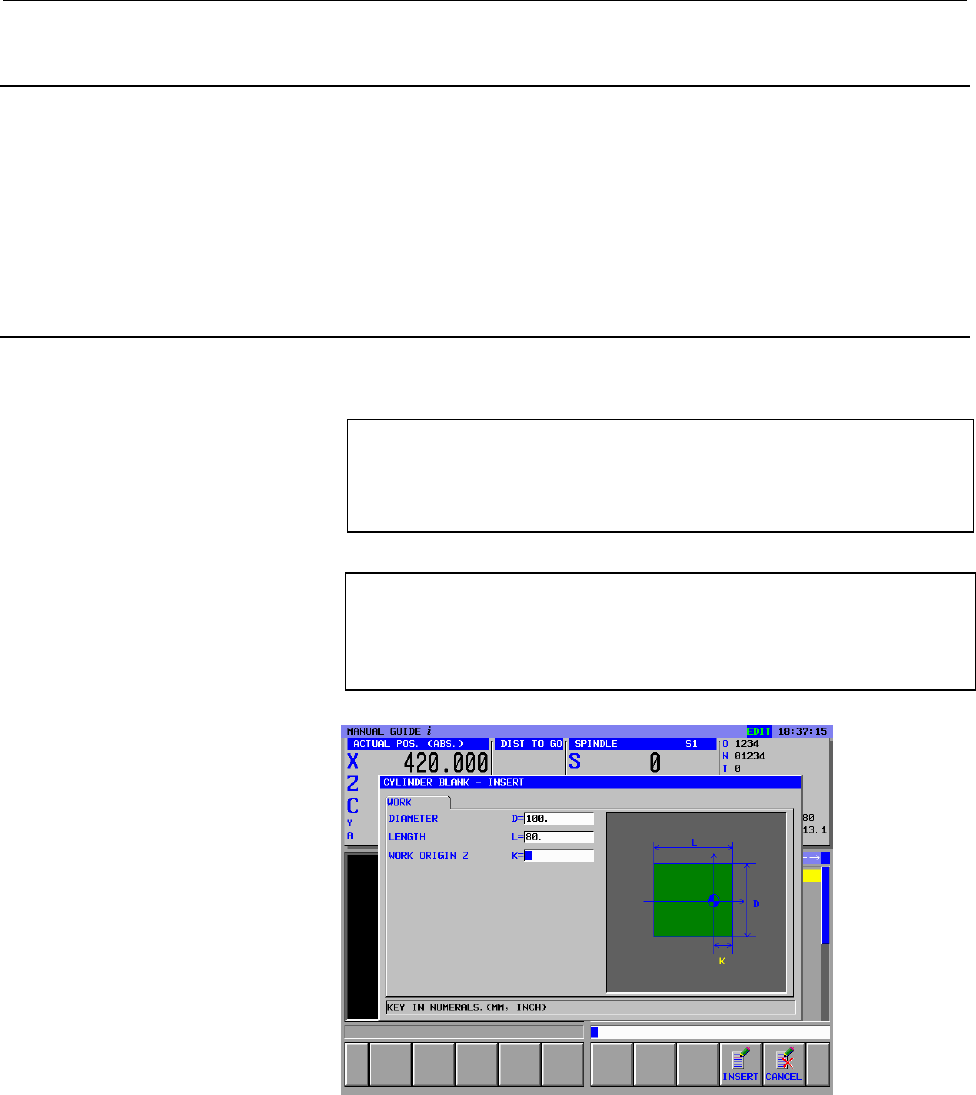

(INSERT STARTING COMMAND FOR TURNING)

<BLANK>

↓

<<2.CYLINDER BLANK FIGURE>>

[SELECT]

(CYLINDER BLANK)

100 INPUT (DIAMETER)

80 INPUT (LENGTH)

0 INPUT (WORK ORIGIN)

[INSERT]
