Manual Guide i Operators manual Page 258

Operators manual
10.SETTING DATA OPERATION B-63874EN/05
- 236 -
10.3.1 Registering a New Fixed Form Sentence
When the REGISTER FIXED FORM SENTENCE MILLING /
TURNING window is displayed on a screen, the following soft-keys
are displayed.

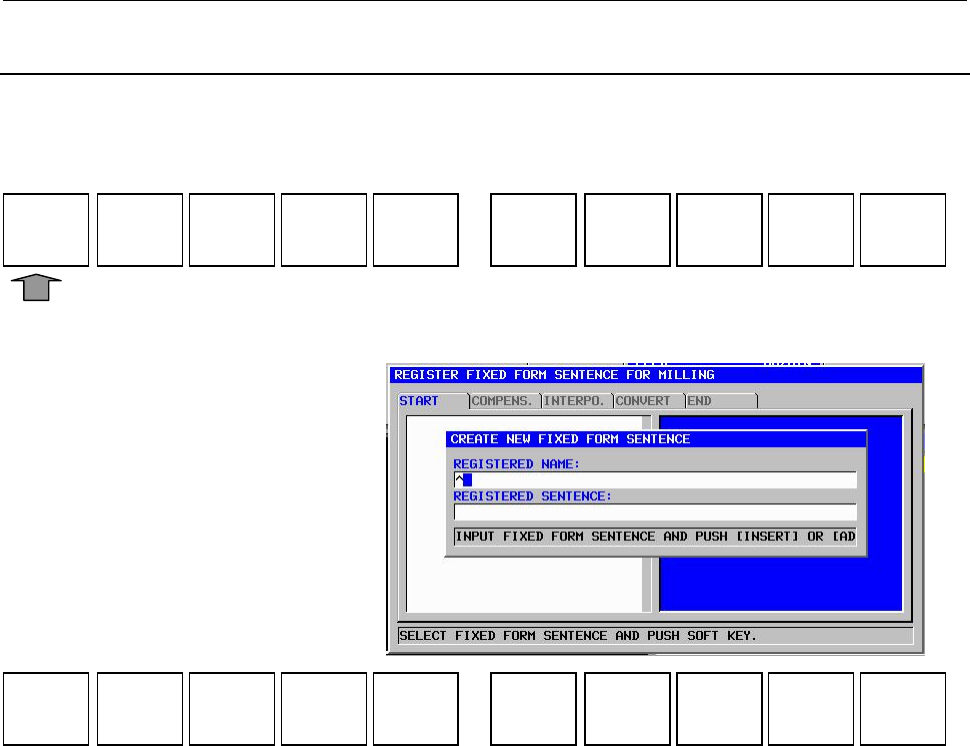

By pressing [NEW], a window for registering a new fixed form
sentence appears. At the same time, the following soft keys appear:
Position the cursor at the "REGISTERED NAME" item, from the
MDI keyboard enter the name of the fixed form sentence you want to
register, then press the INPUT key to input the name.
Then, position the cursor at the "REGISTERED SENTENCE" item,
enter a fixed form sentence from the MDI keyboard, press the INPUT
key, then press [INSERT] or [ADD]. This can register the new fixed
form sentence.
[COPY] : Select all registered names or fixed form sentences and
copy them to the clipboard.
[PASTE] : Paste the clip board contents. You can copy a part of a
machining program being edited to the clipboard in
advance, then you can use it later to, for example, copy
it in "REGISTERED SENTENCE."
[INSERT] : Add the name of the new fixed form sentence to be
registered to a location immediately before the item
positioned by the cursor when [NEW] is pressed. The
menu numbers of the subsequent fixed form sentences
are all incremented by one.
[ADD] : Add the name of the new fixed form sentence to be
registered to the end of the menu already registered.
[CANCEL] : Cancel a registration operation.
CANCELADD
INSERT
PASTE
COPY
TO MNU
STAND.
DELETE
ALTER
NEW
