B-63874EN/05 OPERATION 21.SUPPORT FOR FOLDER MANAGEMENT (FOR Series 30i ONLY)

- 303 -

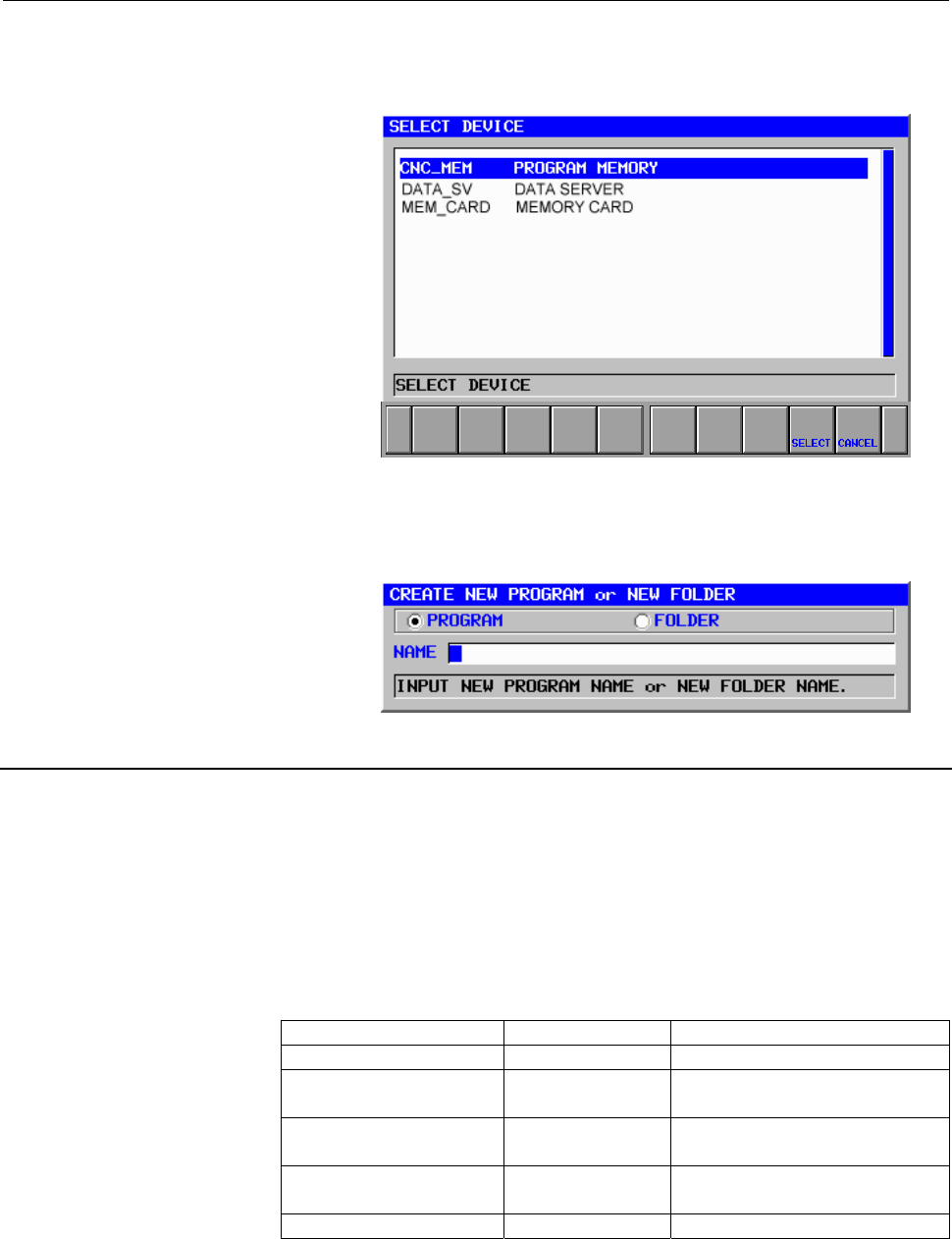

(5) Device selection

Pressing the [DEVICE] soft key displays the [SELECT

DEVICE] screen.

When you select a device then press the [SELECT] soft key, the

list of programs on the device is displayed.

(6) Creation of a new program

In the check box, choose whether to create a program or folder.

21.1.3 Support for the Data Server

(1) MGi supports the editing and operation of a program on the data

server.

By switching the device on the program list screen, a program on

the data server can be handled in the same way as a program in

the program memory.

However, there are differences in operation as indicated below.

The differences comply with the operation specifications of the

NC screen.

Operation Program memory Data Server

Creating a new program Possible Impossible

Copying a program Possible

The program currently selected

cannot be copied.

Deleting a program Possible

The program currently selected

cannot be deleted.

Renaming a program Possible

The program currently selected

cannot be renamed.

Memory card input/output Possible Impossible

(2) The other functions on the data server (such as setting and FTP

transfer) are to be performed on the NC screen (program list

screen).
