B-63874EN/05 OPERATION 17.MEMORY CARD INPUT/OUTPUT FUNCTION

- 279 -

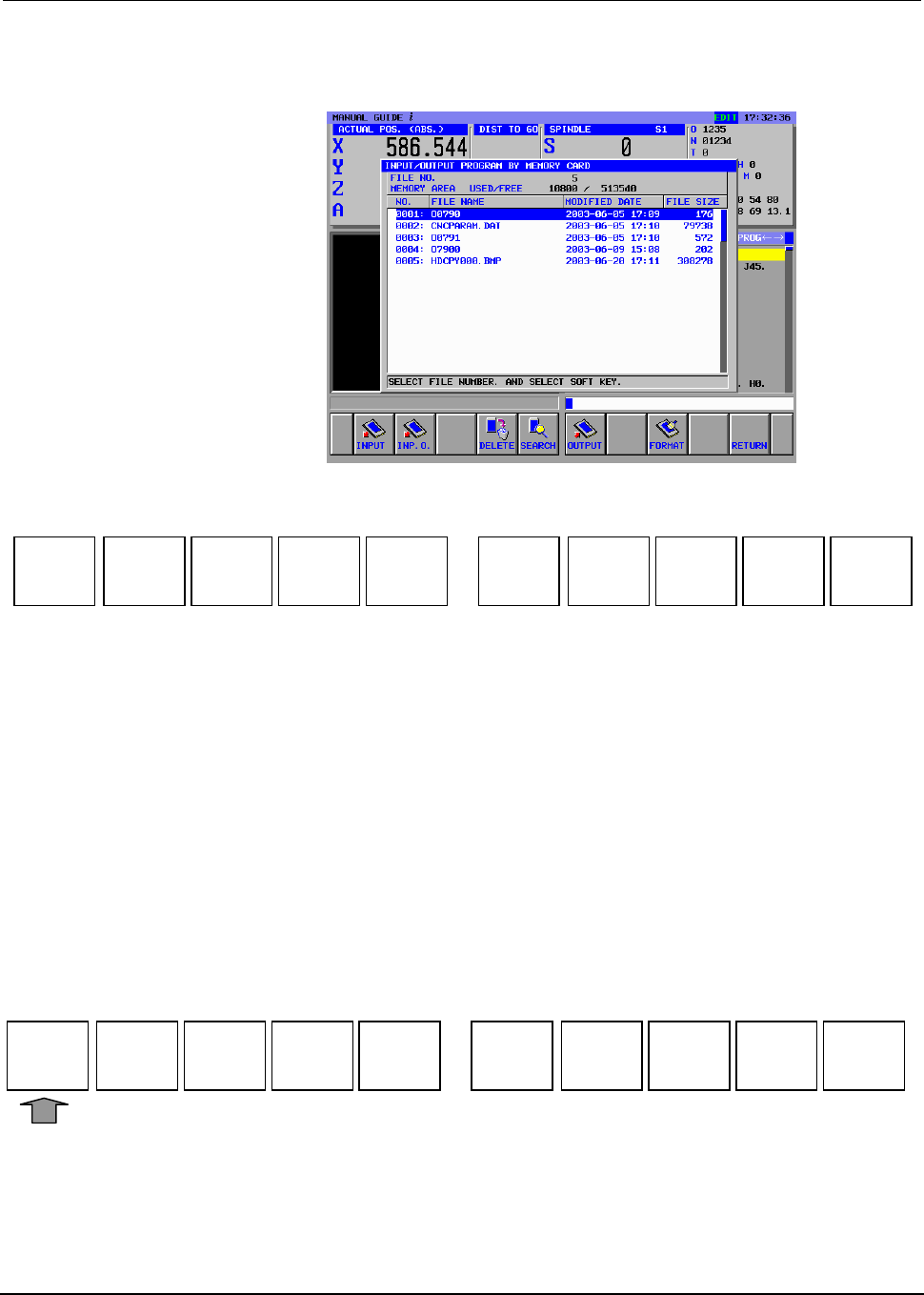

Pressing the [M CARD] soft key on the program list screen displays

the INPUT/OUTPUT PROGRAM BY MEMORY CARD]screen.

Following soft-keys are displayed.

[INPUT] : Inputs a program from the memory card.

[INP.O] : Inputs a program from the memory card (by changing

the O number).

[DELETE] : Deletes files on the memory card.

[SEARCH] : Searches for a file on the memory card.

[OUTPUT] : Displays the screen for output to the memory card.

[FORMAT] : Formats the memory card.

[RETURN] : Returns the screen display to the program list screen.

In order to delete a file in the memory card, place the cursor on the file

name in the above window and press [DELETE]. This soft key

displays a message for checking if selected file may be deleted.

Pressing [YES] deletes the file in the memory card. Pressing [NO]

cancels the deletion of all programs.

In case of initializing the memory card such as deleting all files in the

memory card, press [FORMAT]. This soft key displays a message for

checking if the memory card may be initialized. Pressing [YES]

initializes the memory card and all files in the memory card are

deleted.. Pressing [NO] cancels the deletion of all programs.

17.1.2 Memory Card Output Operation for Part Program

RETURN

FORMAT

OUTPUT

DELETE

INP.O

INPUT

YES
