5.TOOL LIFE DATA LIST SCREEN TOOL MANAGEMENT B-63874EN/05

- 670 -

The action performed by pressing each soft key is the same

as that on the conventional life management data screen.

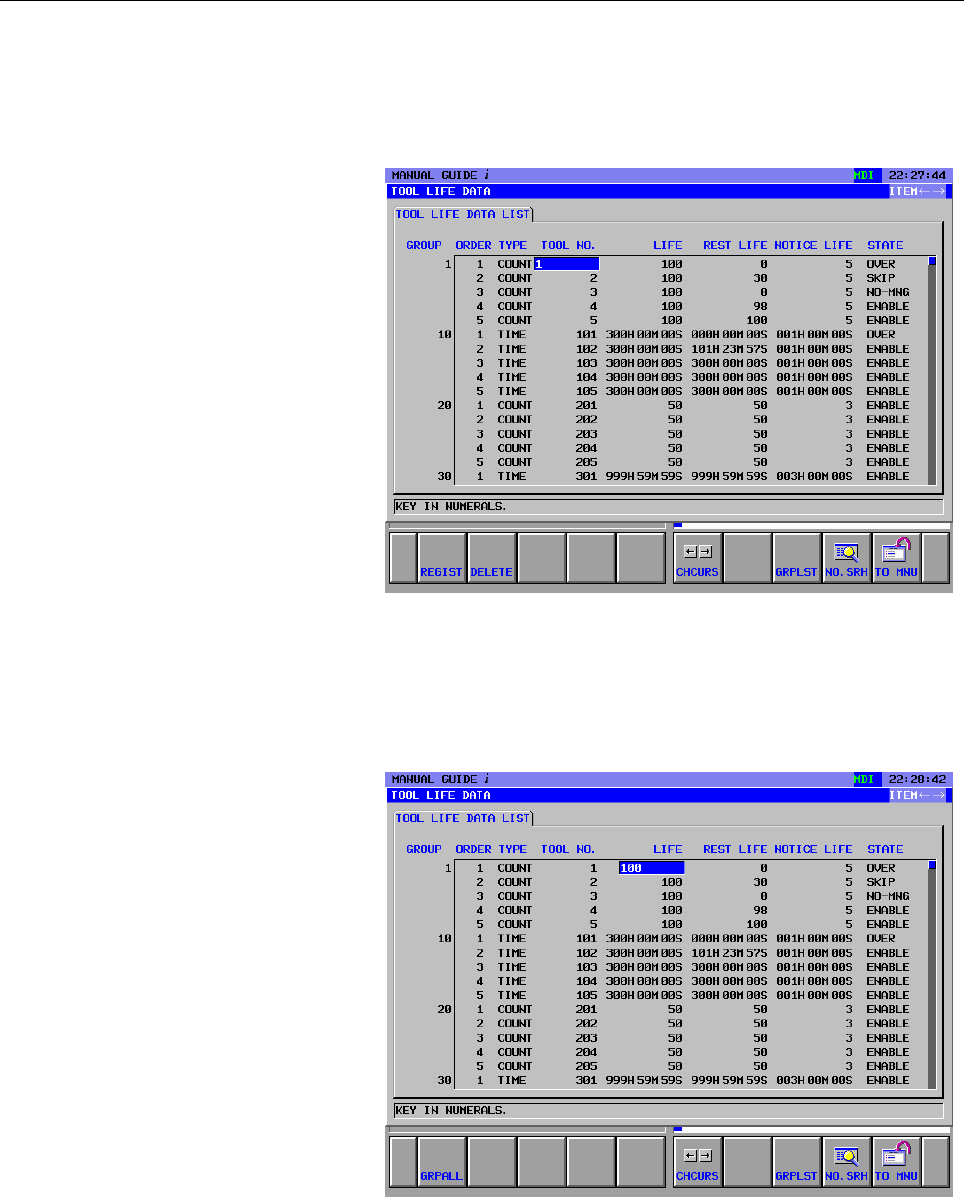

<3> Move the cursor to “TOOL NO.”, and the following screen

appears.

• On this screen, you can change the tool number of which is

pointed by the cursor. The action performed by pressing

each soft key is the same as that on the conventional life

management data screen.

<4> Move the cursor to “LIFE”, and the following screen appears.

• On this screen, you can change the tool life value of which

is pointed by the cursor. The action performed by pressing

each soft key is the same as that on the conventional life

management data screen.

<5> Move the cursor to “STATE”, and the following screen appears.
