B-63874EN/05 OPERATION 12.NC PROGRAM CONVERSION FUNCTION

- 247 -

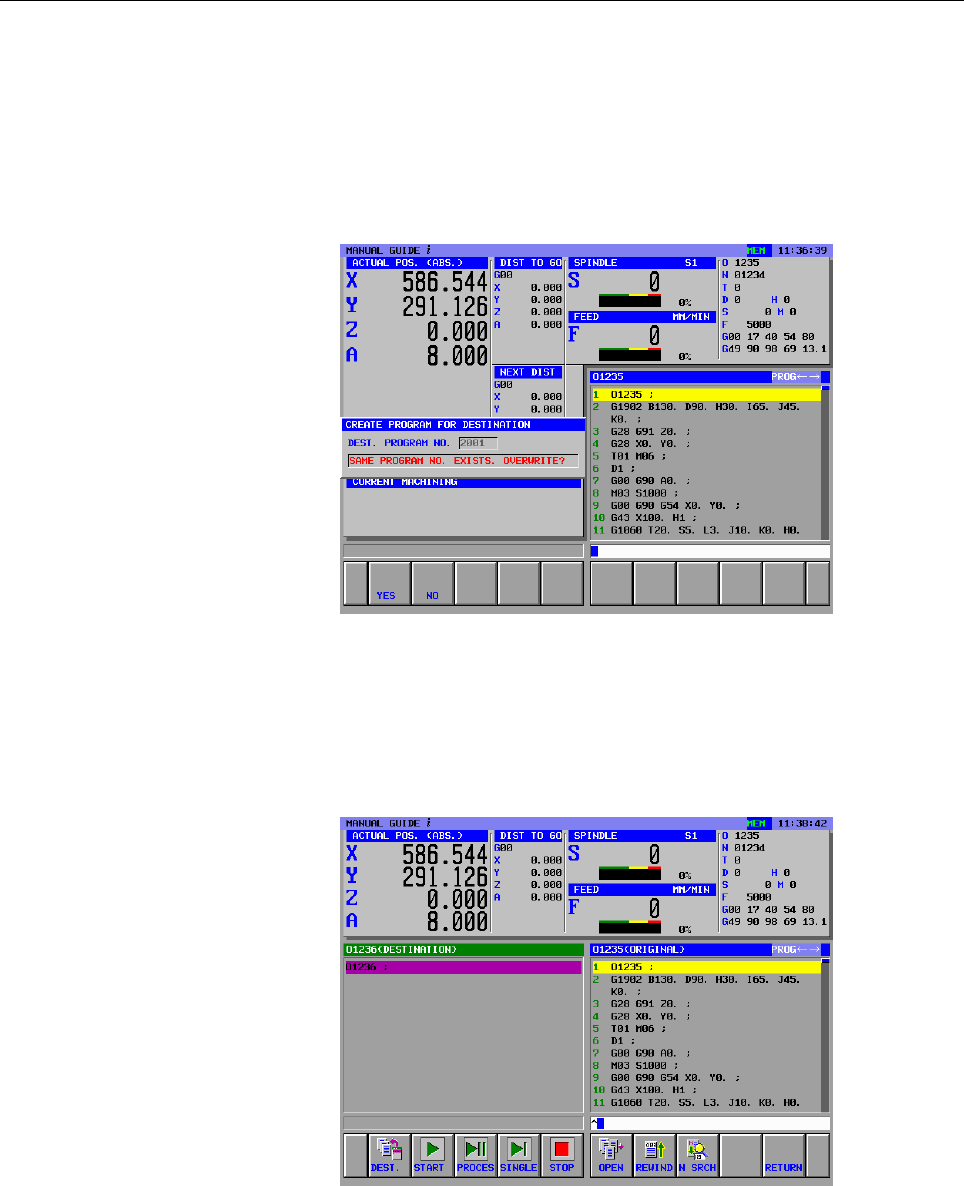

<2> If the program already exists, a message for checking if the

program may be overwritten is displayed. If the program may be

overwritten, press [YES]. If you select [NO], the screen goes

back to the memory program screen, so press [NC CNV] again

and enter other program number.

<3> Press the [CREATE] soft key. A new program with the entered

number is created. The NC program conversion function screen

shown below appears to display a conversion source program

window and a post-conversion program window at the same time.

Pressing [CANCEL] switches the screen display from the NC

program conversion function screen to the program screen.
