B-63874EN/05 CYCLE MACHINING TYPES 3.SLANT FACE MACHINING (COORDINATE CONVERSION)

- 575 -

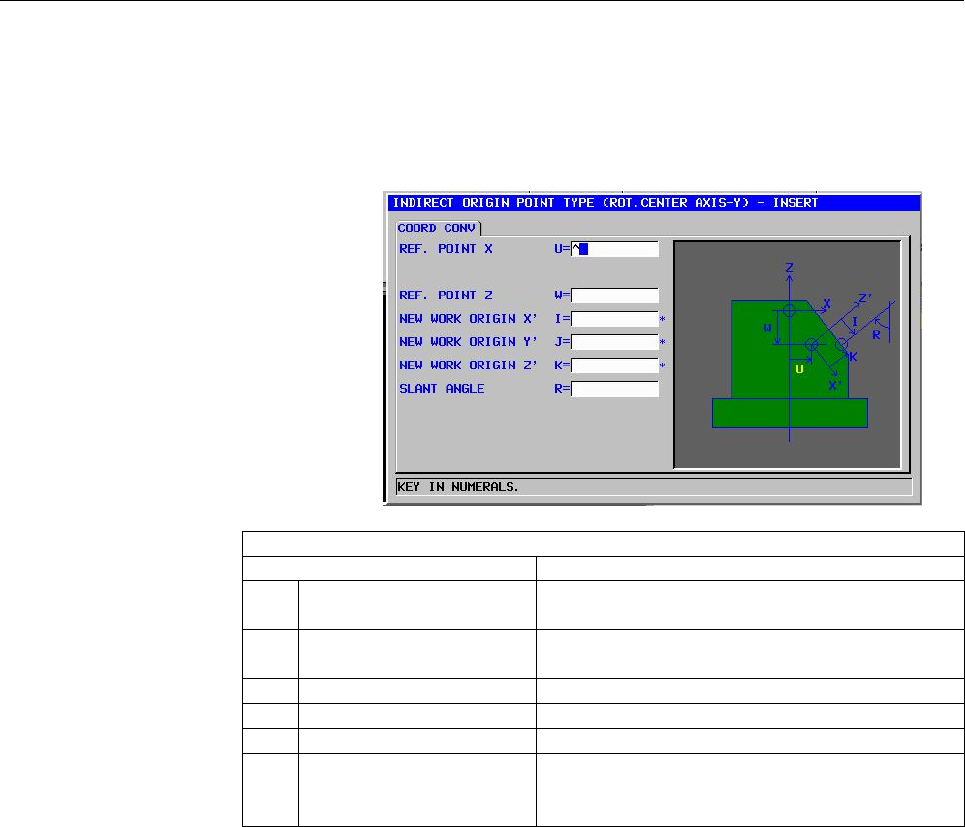

Indirect origin specification (with the rotation center on the Y-axis): G1953

A machining surface rotates about a specified reference point, and the

workpiece origin of a slant face, that is, a new machining surface, is to be

specified based on the distance from the reference point

(positive/negative value).

COORD CONVERSION

Data item Meaning

U REF. POINT X X coordinate of a reference point (workpiece

coordinate system before rotation)

W REF. POINT Z Z coordinate of a reference point (workpiece

coordinate system before rotation)

I NEW WORK ORIGIN X’ X coordinate of the workpiece origin of a slant face

J NEW WORK ORIGIN Y’ Y coordinate of the workpiece origin of a slant face

K NEW WORK ORIGIN Z’ Z coordinate of the workpiece origin of a slant face

R SLANT ANGLE Signed angle relative to the Z-axis. The CW

direction viewed from the plus direction of the

rotation axis is positive. (-90≤R≤90).
