2.TURNING CYCLE MACHINING TYPES B-63874EN/05

- 488 -

2.2 TURNING

2.2.1 Machining Type Blocks for Turning

Outer surface roughing: G1120

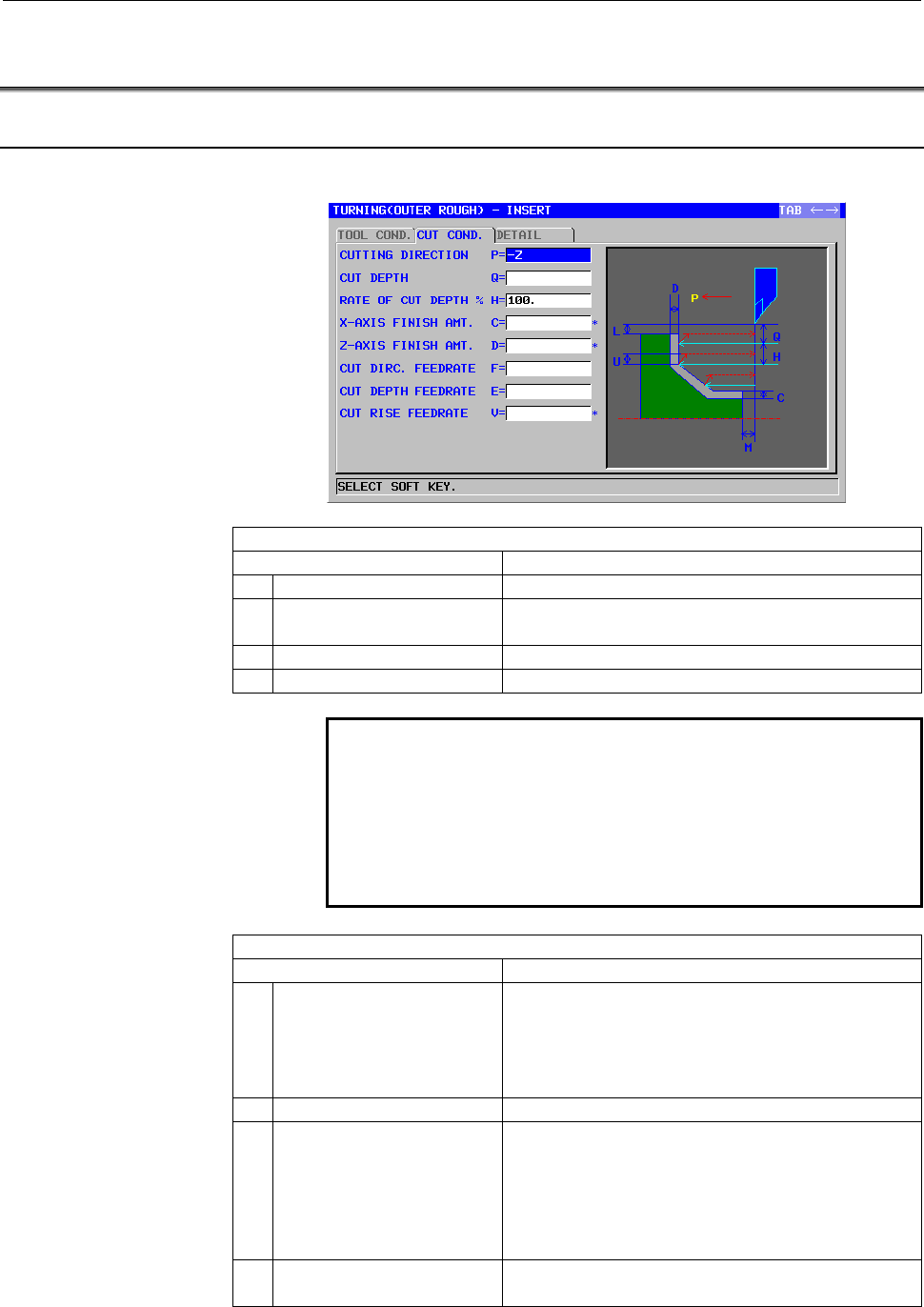

TOOL COND.

Data item Meaning

R NOSE RADIUS Tool nose radius of a roughing tool (positive value)

A CUT EDGE ANGLE Cutting edge angle of a roughing tool (positive

value)

B NOSE ANGLE Tool angle of a roughing tool (positive value)

J IMAGINARY TOOL NOSE Imaginary tool nose position of a roughing tool

NOTE

1 Tab ‘TOOL COND.’ is enabled when bit 0 (TLG) of

parameter No. 27102 = 1.

2 The operator ordinarily sets the above data on the

tab of ‘TOOL DATA’ in Tool Offset window.

Therefore, it is not necessary to display the tab

‘TOOL COND.’

CUT COND.

Data item Meaning

P CUTTING DIRECTION [-Z] : Cuts in the -Z direction.

[+Z] : Cuts in the +Z direction.

Remark) [+Z] is used for cutting in the reverse

direction or for machining with a

subspindle. (COPY)

Q CUT DEPTH Depth of each cut (radius value, positive value)

H RATE OF CUT DEPTH Change rate for the depth of cut. Specify a change

rate in steps of 1%. A second depth of cut and

subsequent ones are sequentially multiplied by a

specified change rate. The default is 100%, meaning

that the depth of cut remains unchanged. (1 to 200,

positive value)

C* X-AXIS FINISH AMT. Finishing allowance in the X-axis direction. The

blank is regarded as 0. (radius value, positive value)
