B-63874EN/05 CYCLE MACHINING TYPES 2.TURNING

- 537 -

• Tool path

<1> The tool moves to the position "cut-in start position + clearance

(L, M)" by rapid traverse.

<2> If [CENTER] is specified as the cutting end position, the tool

cuts in one of the groove walls and continues cutting to the center

(in the Z-axis direction) of the groove at the finishing feedrate.

After retracting in the X-axis direction, the tool performs the

same cutting operation for the other groove wall.

<3> If [CORNER] is specified as the cutting end point, the tool cuts

in to the bottom from the wall in the -Z-axis direction, and

retracts by a return clearance in the X- and Z-axis directions and

then in the X-axis direction. After this, the tool starts cutting

from the other groove wall and continues cutting to the edge of

the bottom, and then retracts by a return clearance in the X- and

Z-axis directions.

<4> The tool moves to the position "cut-in start point + clearance (L)"

in the X-axis direction by rapid traverse.

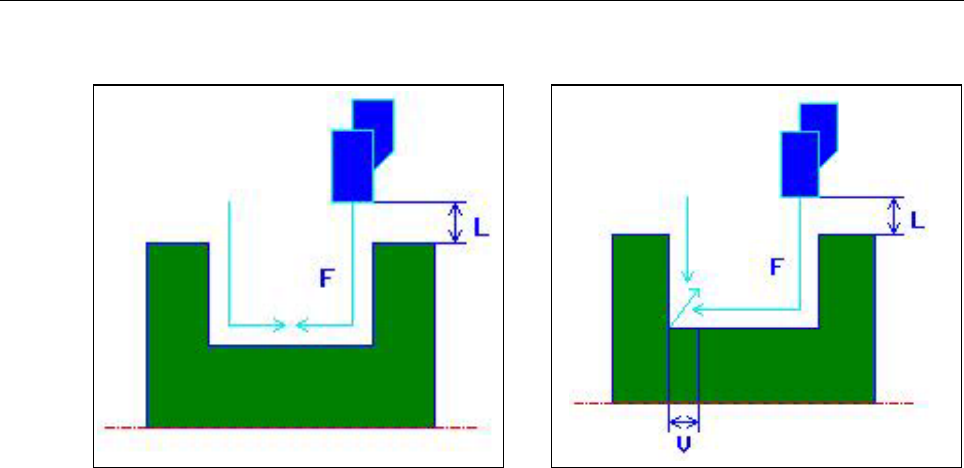

Cutting end position [CENTER]

Cutting end position [CORNER]
