B-63874EN/05 OPERATION 5.DETAILED DESCRIPTIONS ABOUT ENTERING ARBITRARY FIGURES

- 97 -

5.2 ARBITRARY FIGURES FOR THE YZ PLANE

Arbitrary figures in the YZ plane can be used in the following types of

milling.

1. Facing

2. Contouring (Side cutting)

3. Pocketing

4. Grooving

5. Emboss machining

NOTE

See Chapter 1, "Milling," in Part III for detailed

descriptions about data to be entered for each type

of cycle machining.

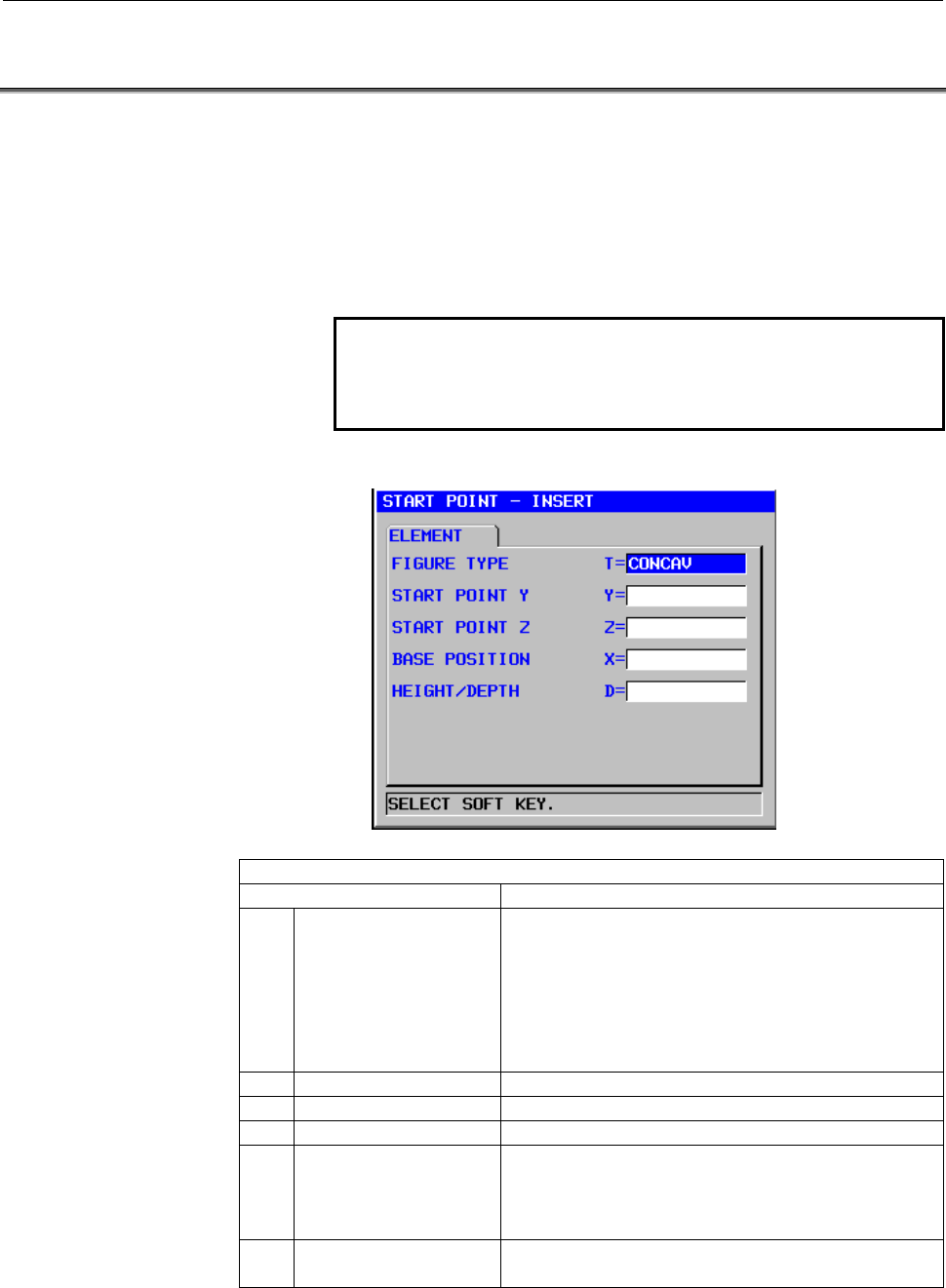

Start point: G1300 (YZ plane)

ELEMENT (INPUT DATA) (Note 1)

Data item Meaning

T FIGURE ATTRIBUTE

(Note 2)

[FACE] : Used as a figure in facing

[CONVEX] : Used as an outer-perimeter figure in

contouring

[CONCAVE] : Used as an inner-perimeter figure in

contouring and emboss machining or a

figure in pocketing

[GROOVE] : Used as a figure in grooving

Y START POINT Y Y coordinate of the start point of an arbitrary figure

Z START POINT Z Z coordinate of the start point of an arbitrary figure

X BASE POSITION Position of the machining surface of an arbitrary figure

D HEIGHT/DEPTH Height or Depth from Base position to cutting surface

Remarks) This item is displayed in Contouring,

Pocketing, Grooving and Emboss

machining.

W GROOVE WIDTH Groove width (Positive value)

Remarks) This item is displayed in Grooving.
