B-63874EN/05 EXAMPLE OF PROGRAMMING 2.LATHE

- 693 -

2.3 PREPARING OF THE FIXED FORM SENTENCE MENU

As to the fixed form sentence, machine tool builder usually sets the

suitable menu for specified respective machine. But, you can enter his

own menu on the MANUAL GUIDE i screen by yourself.

2.3.1 Entering the Fixed Form Sentence for Turning Machining

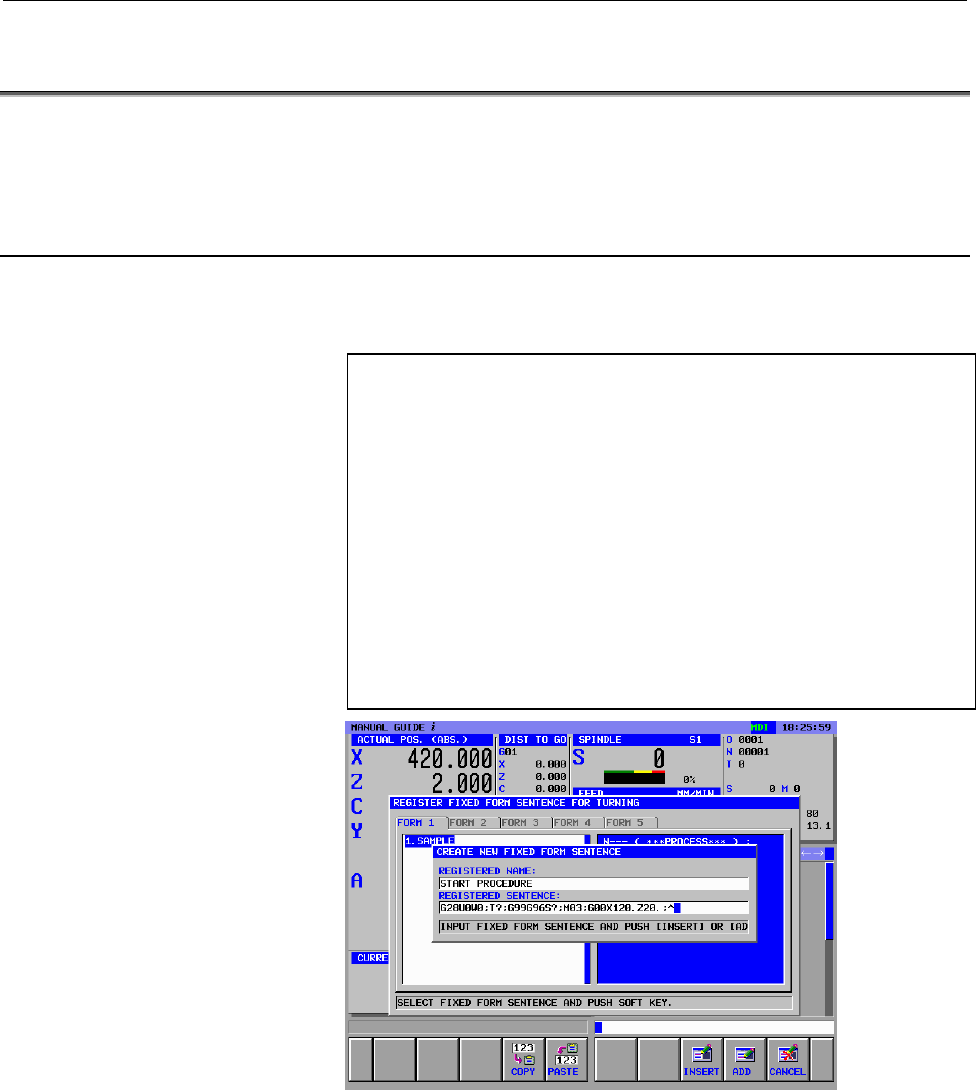

Enter the fixed form sentence menu which will be called by the

soft-key [FIXFRM] in the soft-key group for turning machining.

[SETTING]

(SETTING)

<BASIC>

↓

<<2.REGISTER FIXED FORM SENTENCE FOR TURNING>>

[SELECT]

(REGISTER FIXED FORM SENTENCE FOR TURNING)

<FORM1>

[NEW]

(CREATE NEW FIXED FORM SENTENCE)

START PROCEDURE INPUT

G28 U0 W0 ; T? ; G99 G96 S? ; M03 ; G00 X120. Z20. ;

[INSERT]

[CLOSE]
