Manual Guide i Operators manual Page 153

Operators manual
B-63874EN/05 OPERATION 5.DETAILED DESCRIPTIONS ABOUT ENTERING ARBITRARY FIGURES
- 131 -

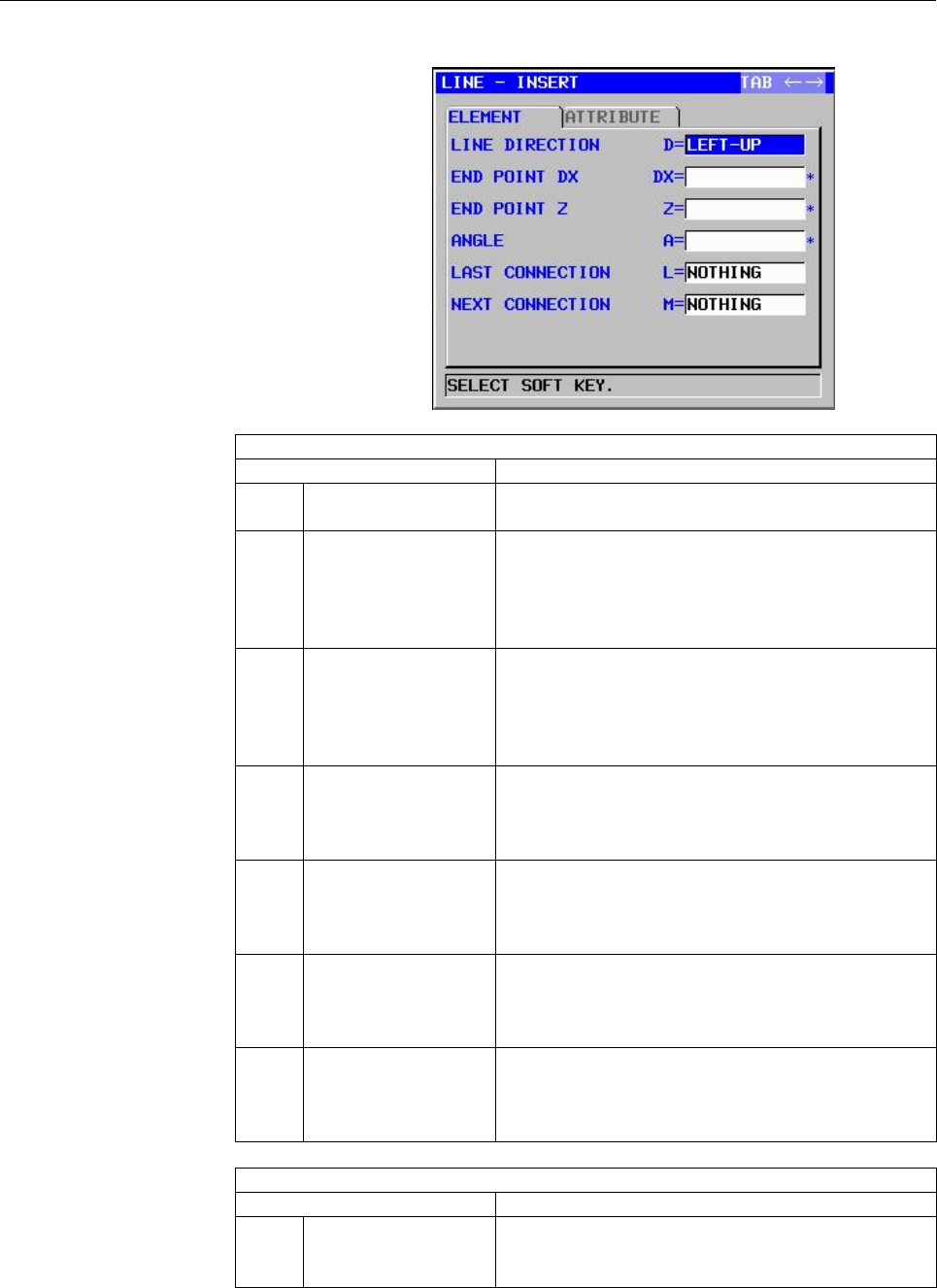

Straight line: G1451 (ZX plane)
ELEMENT (INPUT DATA) (Note 1)
Data item Meaning
D LINE DIRECTION The direction of a straight line is selected from a menu
indicated on a soft key.
DX* END POINT DX X coordinate of the end point of a straight line
Remarks1) This data may not be displayed depending
on the value entered as the direction of the
straight line.
Remarks2) Incremental programming is possible.
Z* END POINT Z Z coordinate of the end point of a straight line
Remarks1) This data may not be displayed depending
on the value entered as the direction of the
straight line.
Remarks2) Incremental programming is possible.
A* ANGLE Straight-line angle
Remarks) This data may not be displayed
depending on the value entered as the
direction of the straight line.
L LAST CONNECTION [TANGNT] : In contact with the immediately preceding
figure
[NO SET] : Not in contact with the immediately
preceding figure (initial value)
M NEXT CONNECTION [TANGNT] : In contact with the immediately following
figure
[NO SET] : Not in contact with the immediately
following figure (initial value)
T ELEMENT TYPE [PART] : Cut as parts
[BLANK] : Cut as a blank portion
Remarks) The system sets the last data as an initial
value.
ATTRIBUTE (INPUT DATA) (Note 1)
Data item Meaning
F FINISH FEEDRATE Cutting feedrate for finishing (positive value)
Remarks) It is possible to set the feedrate to each
block on Finishing.
Previous page
Next page

Contents Summary of Manual Guide i Operators manual
