1.MILLING CYCLE MACHINING TYPES B-63874EN/05

- 392 -

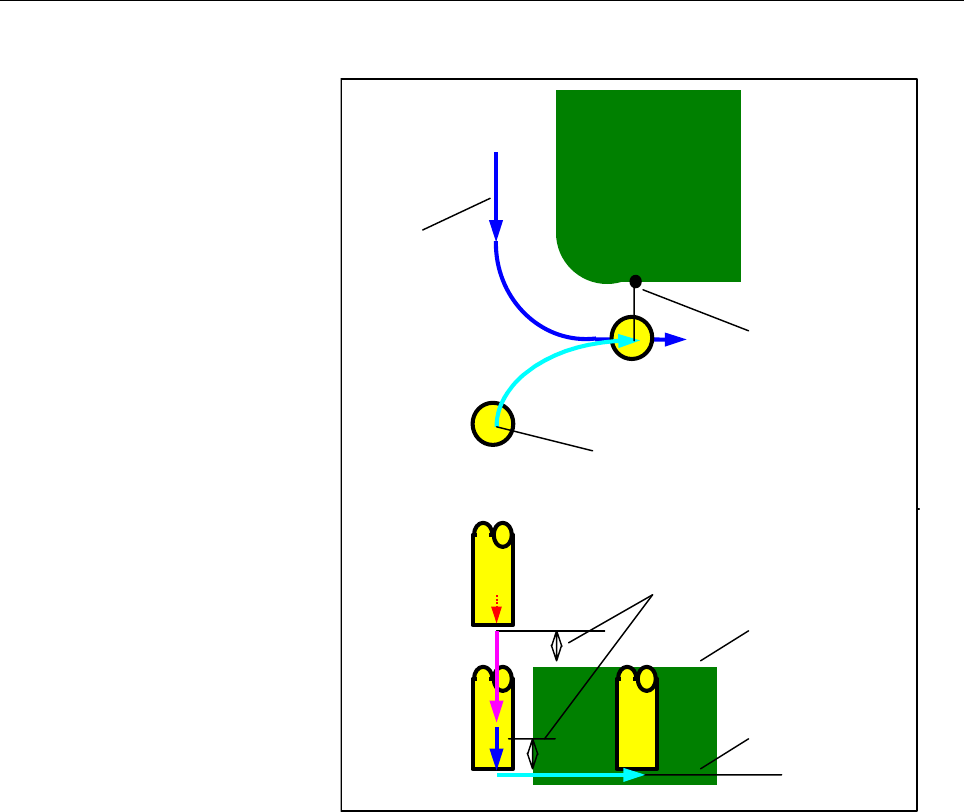

- Approach

First in-feed

machining cycle in

the tool radius

direction

Cutting start point

pproach start point

Clearance Ct in the tool axis direction

Machining profile top

surface height

Machining profile

bottom surface

height

Ftm

<1> The tool moves to the position "machining profile top surface

height + clearance (Ct) in the tool axis direction" by rapid

traverse.

<2> The tool moves to the position "machining profile bottom surface

+ cutting allowance (Vt) in the tool axis direction + clearance

(Ct) in the tool axis direction" at the feedrate (Ftm) specified for

movement in the tool axis direction.

<3> The tool moves to the machining profile bottom surface at the

feedrate (Ft) specified for cutting in the tool axis direction.

<4> The tool approaches, in the tool radius direction, the in-feed

machining start point in the tool radius direction.
