2.SPECIFICATIONS AND CHARACTERISTICS FANUC AC SERVO MOTOR β series B-65232EN/03

- 76 -

Model β

ββ

βM0.2/4000

Specification : A06B-0111-Bxxx

100

1 10 100 1000

0.1

0.2

0.3

0.4

0.5

0.6

0 1000 2000 3000 4000 5000

110%

120%

130%

140%

150%

170%

210%

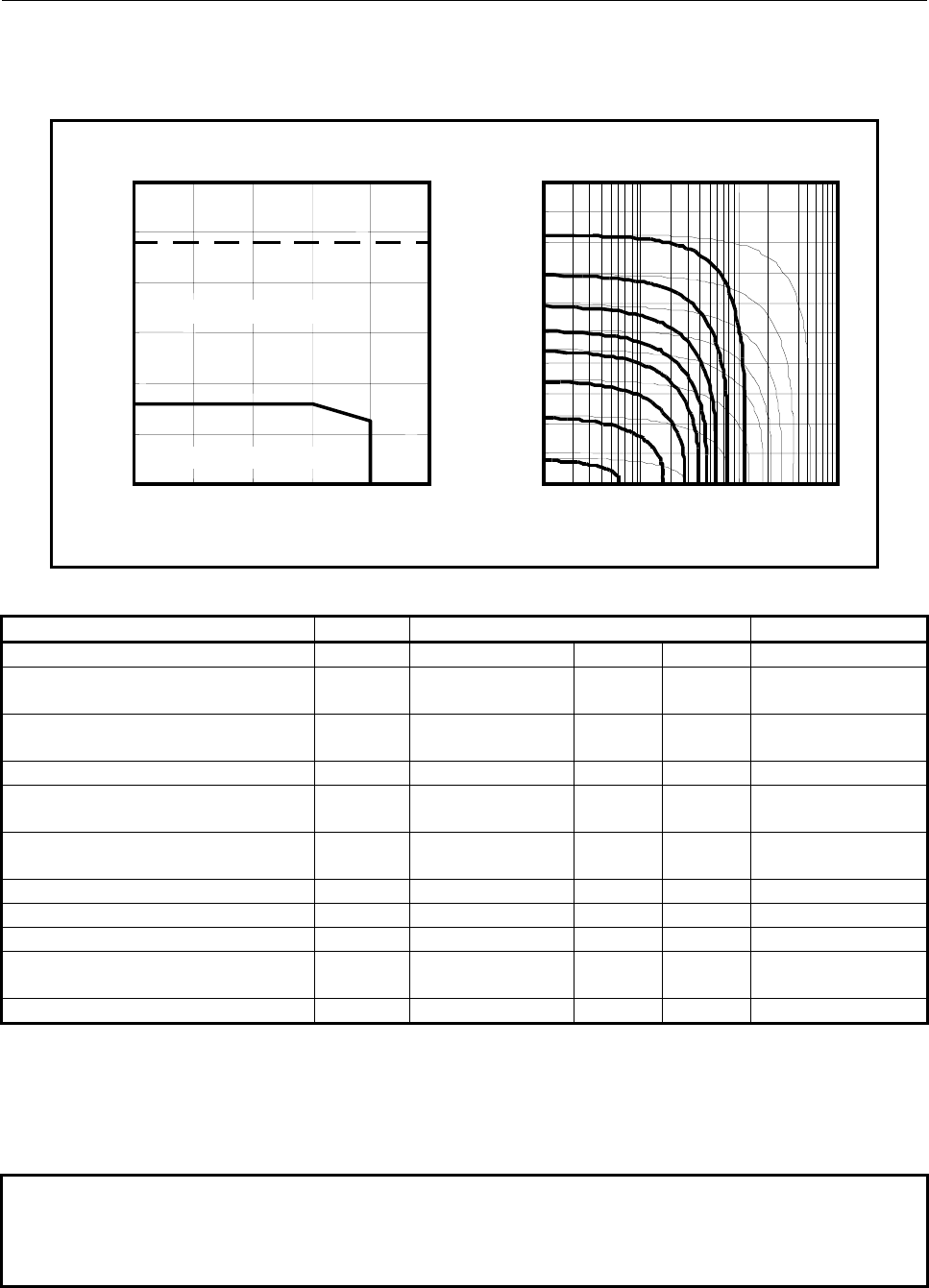

Over load duty characteristics

"ON" time (sec.)

Duty (time %)

Speed - torque characteristics

Speed (min

-1

)

Continuous operating

Intermittent operating

Torque (Nm)

Data sheet

Parameter Symbol Value Unit

Rating rotation speed Nmax 4000 min

-1

Rated torque at stall (*) Ts

0.16

1.6

kgfcm

Rotor inertia Jm

0.0000019

0.000019

kgm

kgfcms

Continuous RMS current at stall (*) Is 0.84 A(rms)

Torque constant (*) Kt

0.19

1.9

Nm/A(rms)

kgfcm/A(rms)

Back EMF constant (1-phase) (*)

6.7

0.064

V(rms)/1000min

-1

V(rms)sec/rad

Armature resistance (1-phase) (*) Ra 6.0 Ω

Mechanical time constant tm 0.0009 s

Thermal time constant tt 5 min

Static friction Tf

0.02

0.2

kgfcm

Mass 0.33 kg

(*)The values are the standard values at 20°C and the tolerance is ±10%.

The speed-torque characteristics very depending on the type of software, parameter setting, and input

voltage of the digital servo motor. (The above figures show average values.)

These values may be changed without prior notice.

NOTE

The data above indicates torque characteristics obtained when HRV2 control is

used for driving. When HRV1 control and an I/O link β amplifier are used for driving,

the intermittent operating zone is limited.
