4.DETAILS OF CABLE CONNECTIONSCONNECTION B-65232EN/03
- 236 -
For β
ββ
βM0.4/4000, β
ββ
βM0.5/4000, β
ββ
βM1/4000
Connector on the cable side
Connector
JN1xS10SL1 : for φ5.7 to 7.3 sheath diameter
JN1xS10SL2 : for φ6.5 to 8.0 sheath diameter
x→D : Straight plug
F : Angle plug
Contact
JN1-22-22S
Manufacture : Japan Aviation Electronics Industry
Connector on the cable side
Connector
FI40-2015S
Connector cover
FI-20-CV
Manufacture : HIROSE ELECTRIC CO., LTD

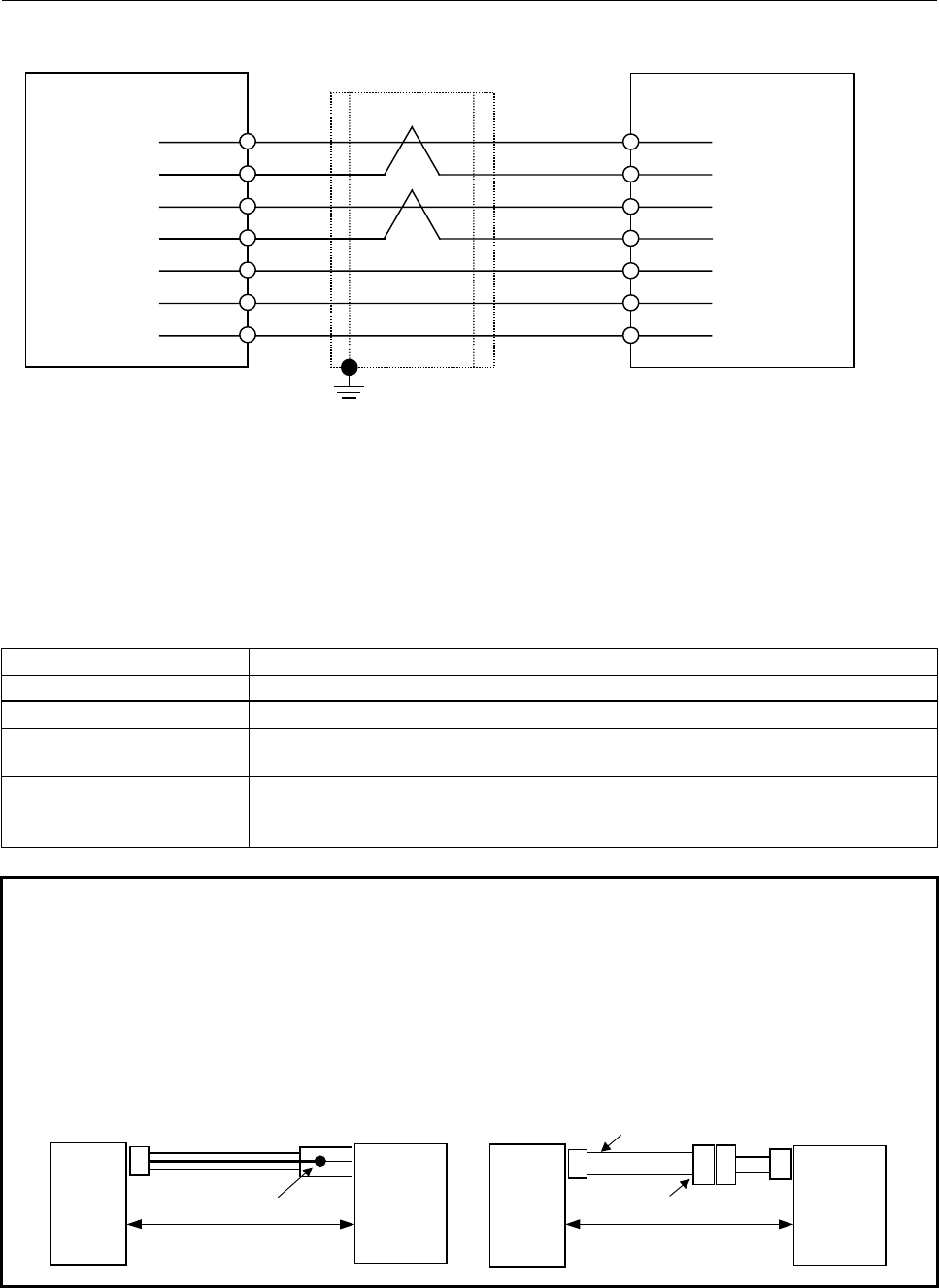

β series servo
amplifier
(2)
(5)
(6)
(1)
(12, 14)
(7)
(2)
(1)
(6)
(5)
(8, 9)
(7, 10)
(4)
(9, 20)
SD
*SD
REQ
*REQ
5V
0V
6V
Servo motor
βM0.4 to βM1
The specifications of a recommended wire are indicated below.
Cable length 20m or more
5V, 0V 0.5 mm
2
(AWG21) × 2 (strand structure 20/0.18, coating outer diameter φ1.5 or lower)
6V 0.5 mm
2
(AWG21) (strand structure 20/0.18, coating outer diameter φ1.5 or lower)
SD, *SD, REQ, *REQ
0.18 mm
2
(AWG25) or more. Twisted pair wire
(strand structure 7/0.18, coating outer diameter φ1.5 or lower)
Recommended wire
0.5 mm
2
× 5 + 0.18 mm
2
× 2 pairs
Hitachi Cable, Ltd. UL20276-SB(0) 5X21AWG+2PX25AWG
(A66L-0001-0461) (For a fixed cable)
NOTE
1 When the user prepares a cable, the user needs to ensure that the sum (both ways)
of 5V and 0V wire resistance values is 0.8Ω or less.
2 The maximum applicable wire diameter for the motor-side cable connector is 0.5
mm
2
(strand structure 20/0.18 or 104/0.08, coating outer diameter φ1.5 or less), and
the sheath diameter is φ5.7 to φ8.0. When a thicker wire or cable needs to be used,
perform the processing shown below.
3 For an incremental pulse coder, no 6V connection is required.
Example 1: When the wire diameter exceeds 0.5 mm
2
Servo motorServo amplifier
Soldering,
crimping, etc.
Example 2: When the sheath diameter of the cable exceeds
φ
8
Servo motorServo amplifier
Cable diameter of exceeds φ8
Relay connector, etc.
The sum (both ways) of 5
V
and 0V wire resistance
values is 0.8
Ω
or less.
The sum (both ways) of 5V
and 0V wire resistance
values is 0.8
Ω
or less.
