2.NOTES ON USE DESCRIPTIONS FOR FANUC AC SERVO MOTOR β series B-65232EN/03

- 10 -

2.2 INSTALLATION

The servo motor contains a precision detector, and is carefully

machined and assembled to provide the required precision. Pay

attention to the following items to maintain the precision and prevent

damage to the detector.

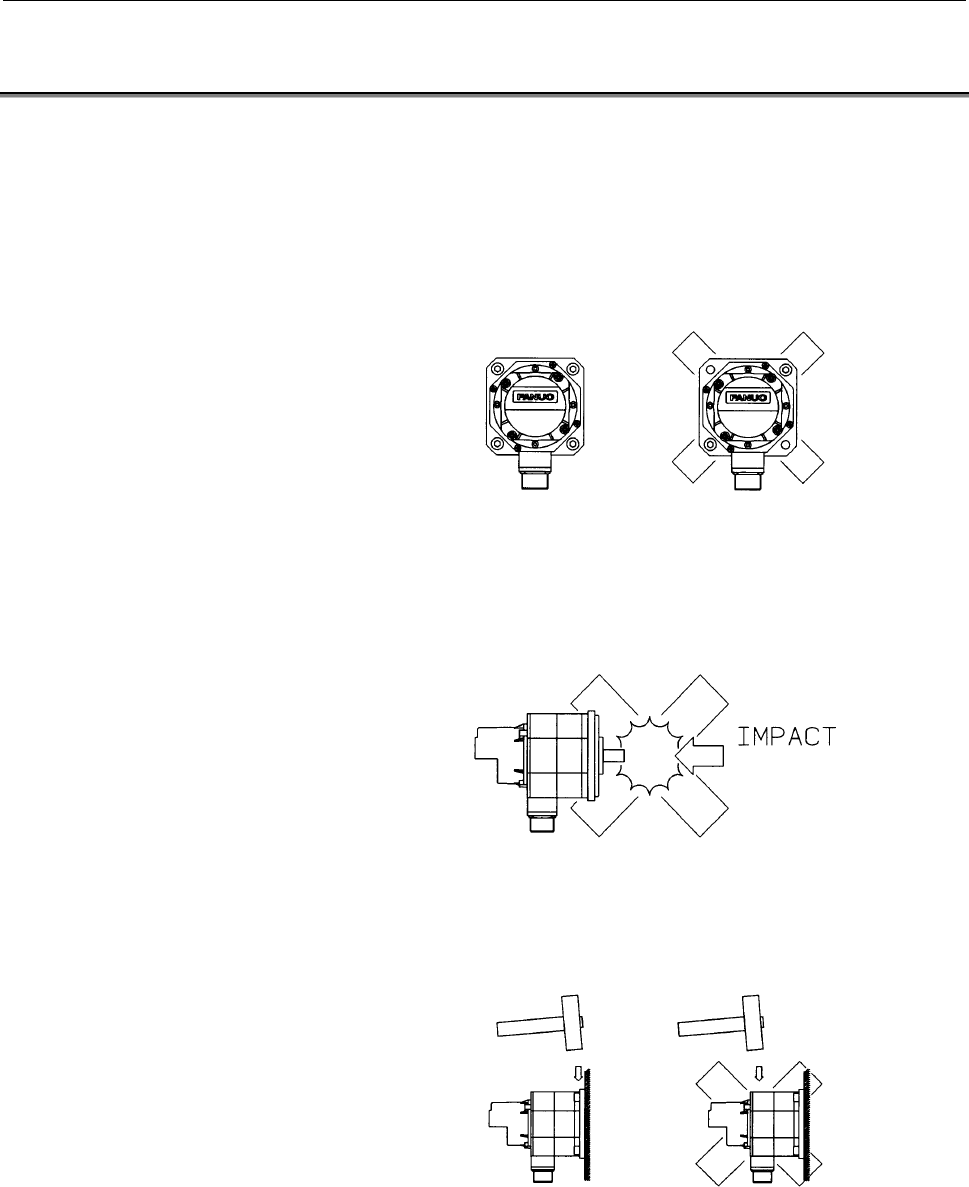

(1) Secure the servo motor uniformly using four bolt holes provided

on the front flange.

(2) The machine surface on which the motor is mounted must be

flat.

(3) When mounting on the machine, take care not to apply a shock

to the motor.

(4) When striking the motor is unavoidable for fine position

adjustment, strike only the flange on the front side with a plastic

hammer softly so that impact is not applied to any portions other

than the flange on the front side.

(5) When handling model βM0.2/4000 or βM0.3/4000, be sure to

hold the main body of the motor. Do not carry the motor by

holding the lead wire only.
