11.EXTERNAL PULSE INPUT (ONLY FOR I/O Link INTERFACE) CONNECTION B-65232EN/03

- 298 -

11.2.3 Manual Pulse Generator Adapter

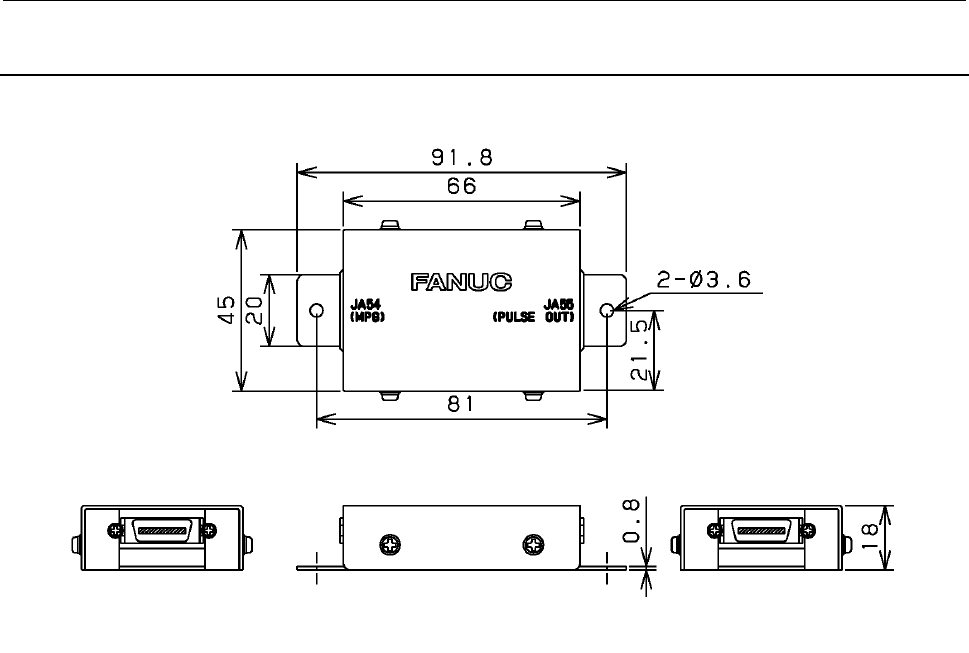

External view

Weight : Approx. 100g

Installation condition

The manual pulse generator adapter does not have a closed structure.

So, install a manual pulse generator adapter in a closed cabinet similar

to a one used for the FANUC servo amplifier β series (I/O Link

option).

The manual pulse generator adapter has two φ3.6 holes. When

securing a manual pulse generator adapter, use these holes.

The manual pulse generator adapter is light. So, when securing a

manual pulse generator adapter, it need not always be screwed.

However, ensure that a manual pulse generator adapter is not short-

circuited to another electric circuit.

Connect the case to ground by using a case mounting screw of the

manual pulse generator adapter.
