7.INSTALLATION CONDITIONS AND NOTES FANUC AC SERVO AMPLIFIER β series B-65232EN/03

- 174 -

7.3.3 Noise Suppressor

The AC/DC solenoid and relay are used in the power magnetics

cabinet.

A high pulse voltage is caused by coil inductance when these devices

are turned on or off.

This pulse voltage induced through the cable causes the electronic

circuits to be disturbed. In general, to reduce this pulse voltage, a

spark killer is used in AC circuits, while a diode is used in DC

circuits.

Spark killer

- Use a spark killer consisting of a resistor and capacitor in series.

This type of spark killer is called a CR spark killer. (Use it under

AC)

(A varistor is useful in clamping the peak voltage of the pulse

voltage, but cannot suppress the sudden rise of the pulse voltage.

FANUC therefore recommends a CR spark killer.)

- The reference capacitance and resistance of the spark killer shall

conform to the following based on the current (I(A)) and DC

resistance of the stationary coil:

Resistance (R) : Equivalent DC resistance of the coil

Capacitance (C) : I

/10 to I

/20 (

I : Current at stationary state of the coil (A)

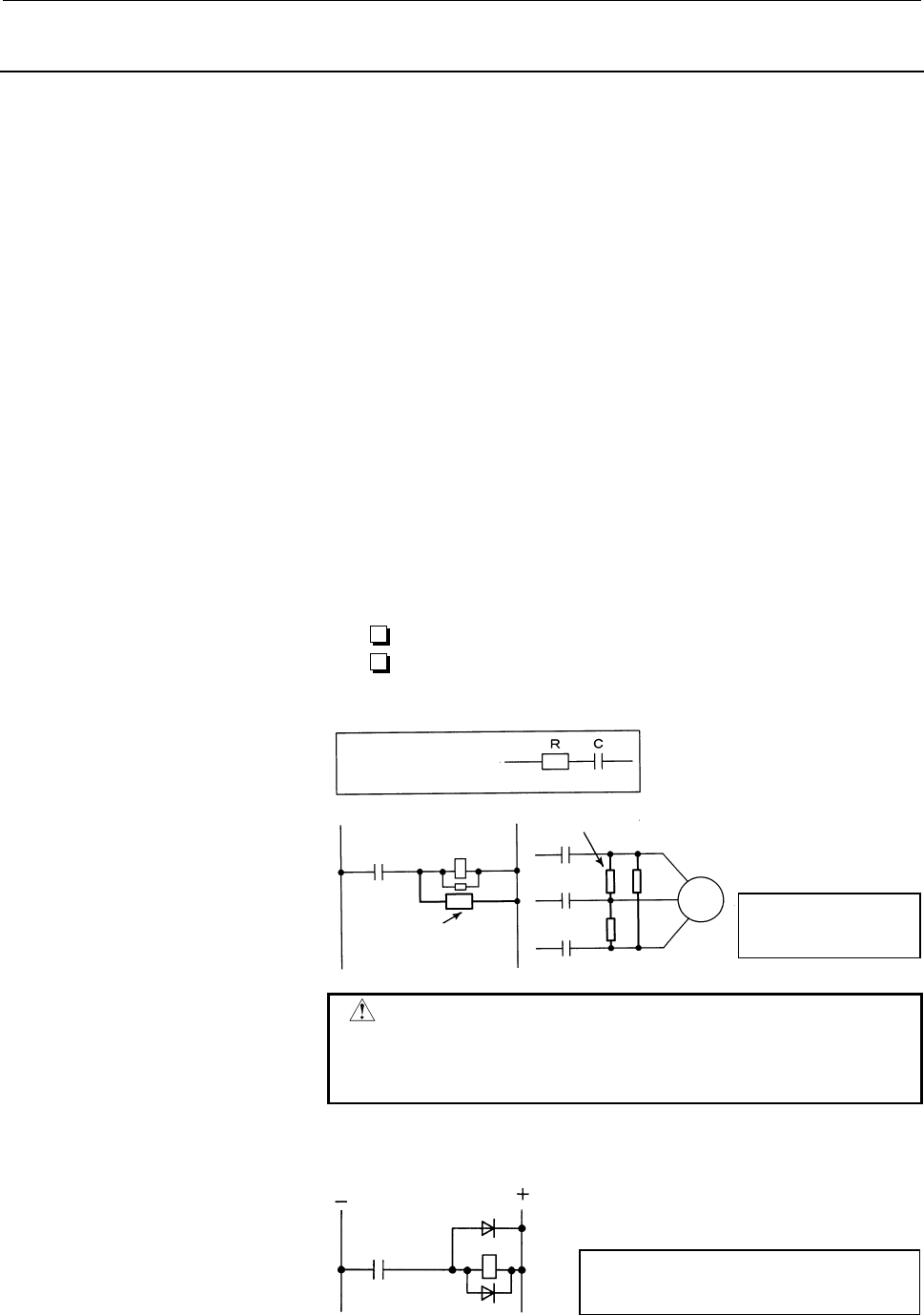

Equivalent circuit of

the spark killer

AC relay

Spark killer

Mount the noise

eliminator near a motor

or a relay coil.

Motor

CAUTION

Use a CR-type noise eliminator. Varistor-type noise

eliminators clamp the peak pulse voltage but

cannot suppress a sharp rising edge.

Diode

Diode (used for direct-current circuits)

Diode

Use a diode which can withstand a voltage

up to two times the applied voltage and a

current up to two times the applied current.

DC relay
