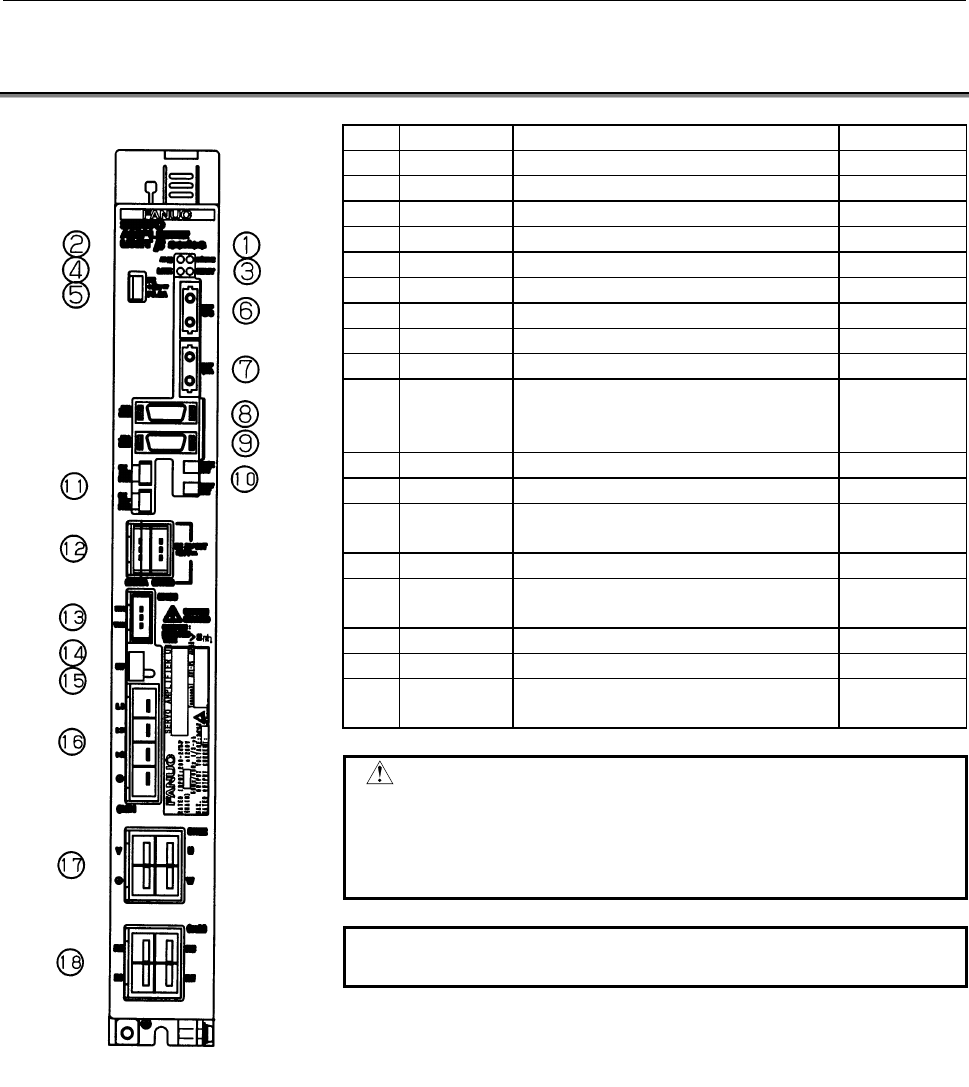

6.CONNECTOR LOCATIONS FOR β SERIES AMPLIFIER (SVU40, SVU-80) CONNECTION B-65232EN/03

- 264 -

6.1 FSSB INTERFACE

Name Description Remarks

<1> POWER Control power status indicator LED

<2> ALM Alarm status indicator LED

<3> DRDY Activation status indicator LED

<4> LINK Communication status indicator LED

<5> FUSE Fuse for 24V power supply

<6> COP10B Connection for FSSB (to master)

<7> COP10A Connection for FSSB (to slave)

<8> JX5/CHK Connector for ESP and signal checking

<9> JF1/ENC Connection for Pulsecoder

<10> CX5X/5Y Battery connector for ABS Pulsecoder

For servo

check pin

board

<11> CX18X/18Y Connection for fan motor

<12> CX19A/19B 24V power input/output connector

<13> CX20

Connector for separated regenerative

resistor (OH alarm)

(Note)

<14> DC link charge indicator LED (Warning)

<15> SW

Switch for regeneration error detection

circuit changeover

<16> CX21 Connector for primary power input

<17> CX22 Connector for motor power

<18> CX23

Connector for separated regenerative

resistor (resistor line)

(Note)

WARNING

It is dangerous to touch any cables and

components inside the module while this LED is lit.

Never touch components or cables while this LED

is lit.

NOTE

Refer to Section 8.5 for details.
