2.CONNECTOR LOCATIONS FOR β SERIES AMPLIFIER CONNECTION B-65232EN/03

- 222 -

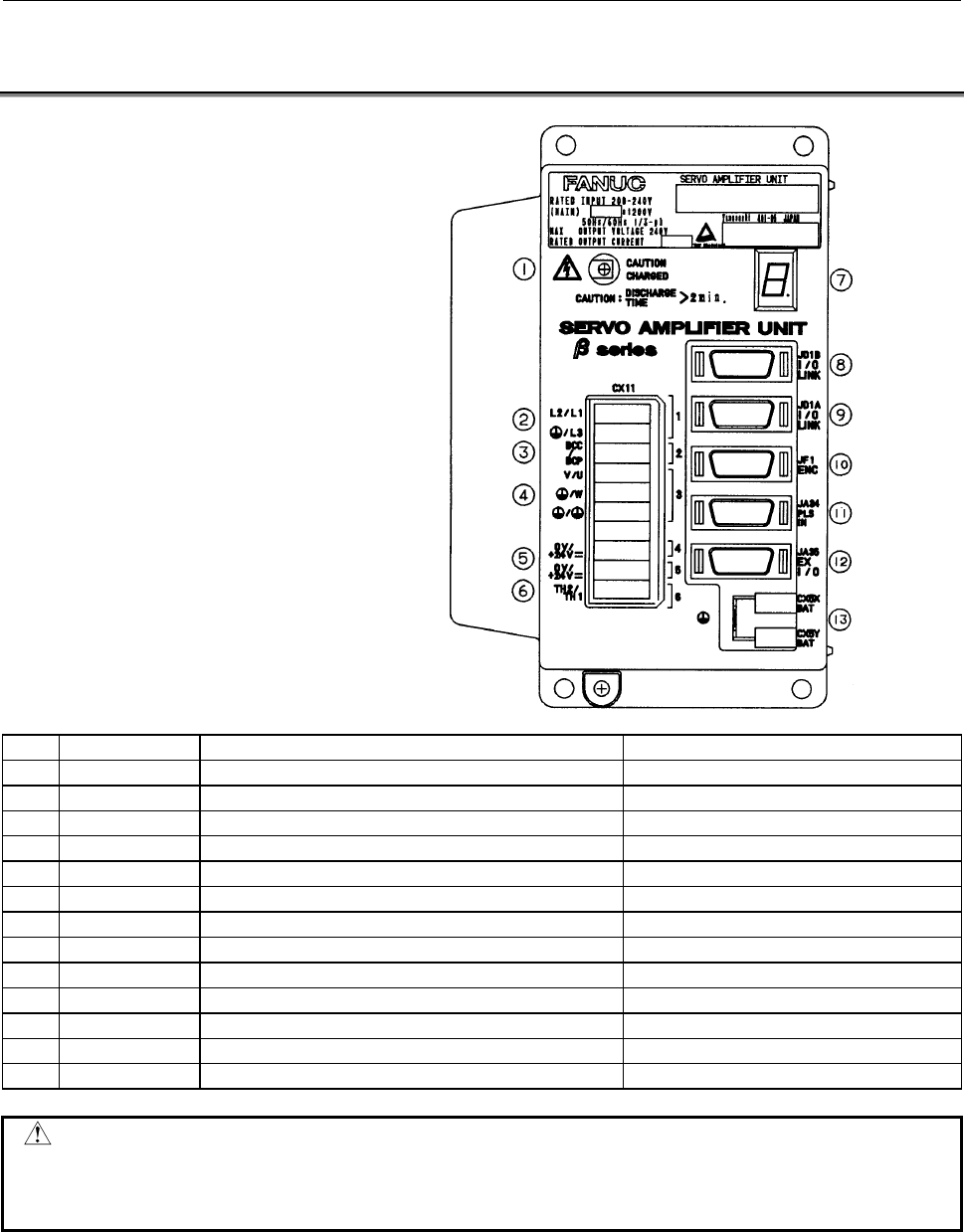

2.2 I/O Link INTERFACE (SVU4, SVU-12, SVU-20)

Name Description Remarks

<1> DC link charge indicator LED (Warning 1)

<2> CX11-1 Main power input connector

<3> CX11-2 Connector for regenerative resistor (DC link)

<4> CX11-3 Motor power line connector

<5> CX11-4,5 24V power input/output connector Both connectors have the same function.

<6> CX11-6 Connector for regenerative resistor (for overheat) (Warning 2)

<7> Status indicator LED

<8> JD1B/I/O LINK FANUC I/O Link connector From a unit at the previous stage

<9> JD1A/I/O LINK FANUC I/O Link connector To a unit at the next stage

<10> JF1/ENC Connector for Pulsecoder connection

<11> JA34/Pulse In External pulse input connector

<12> JA35/EX I/O Built-in DI connector

<13> CX5X,CX5Y Connector for ABS Pulsecoder battery Both connectors have the same function.

WARNING

1 It is dangerous to touch any cables and components inside the module while this

LED is lit. Never touch components or cables while this LED is lit.

2 Refer to Section 4.7 for details.
